Super Tiny OEM Camera Modules Monochrome 120FPS 0.3MP With GC0308 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-0.3MP-GC0308-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/6.5’’ Galaxycore GC0308 CMOS |
|---|---|---|---|
| Resolution: | 0.3mp 640(H) X 480(V) | Dimensions: | 25MM X 12MM |
| Lens FOV: | 50°（Optional） | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Small |
| High Light: | 120FPS OEM Camera Modules,0.3MP OEM Camera Modules,120FPS 0.3MP Camera Module |
||
Product Description
Super Tiny OEM Camera Modules Monochrome 120FPS 0.3MP With GC0308 Sensor

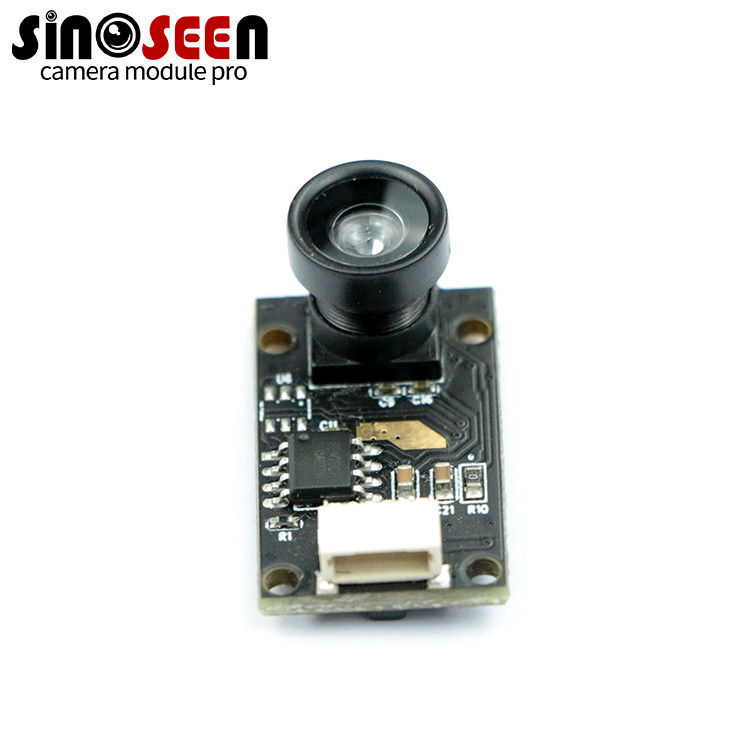

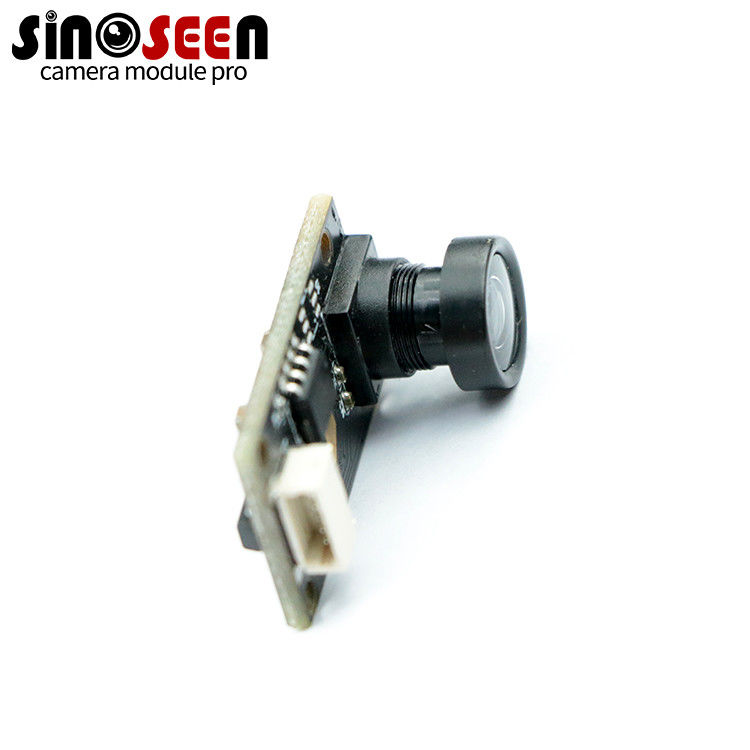

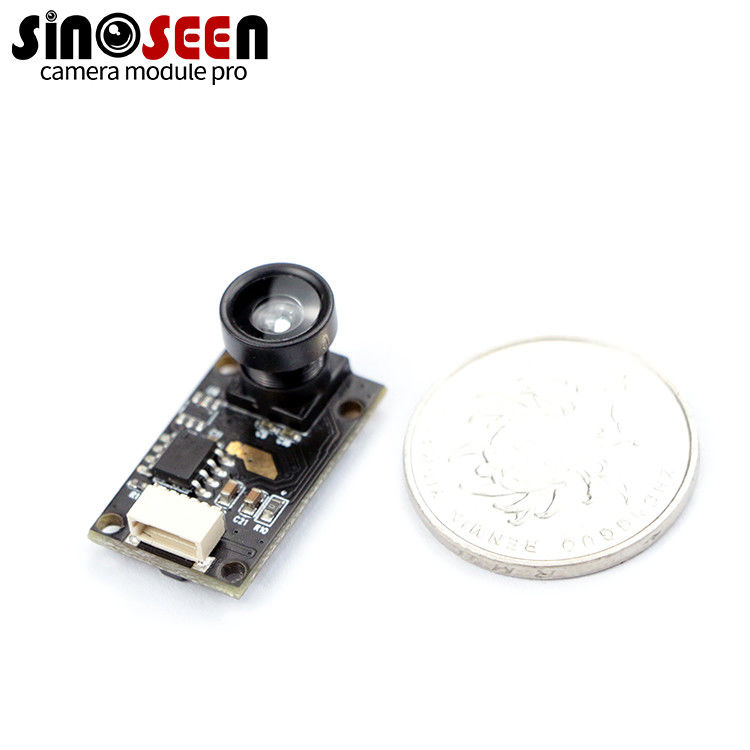

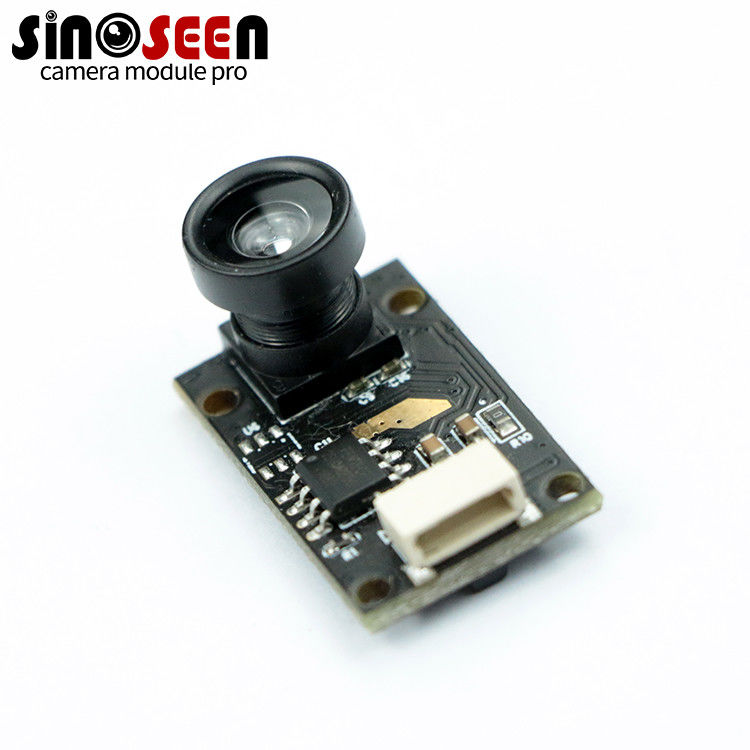

Super tiny 25MMx12MM Monochrome 120FPS high frame rate 0.3MP USB camera module with GC0308 sensor
OEM Camera Module
This is one of our newly developed smallest USB camera modules. It has 3 advantages: First, its size is very small, only 25MMx12MM. No matter how small your machine or equipment is, you can use it without any problems. Secondly, it is monochromatic and can produce high-quality black and white images. Third, it supports a very high frame rate of 120FPS at 320x240 resolution and a very high frame rate of 30FPS at 640x480 resolution.
This camera can be widely used for many applications like robotics, IoT, artificial intelligence, drones, object tracking, sports,medical, industrial automation, agritech, biometrics, depthsensing, 3D, face recognition, robot, machine vision, VR, AR, computer vision, embedded, and so on
Specification
|
Model No
|
SNS-0.3MP-GC0308-V1.0
|
|
Sensor
|
1/6.5’’ Galaxycore GC0308 CMOS
|
|
Pixel
|
0.3 Mega Pixel
|
|
Most effective pixels
|
640(H) x 480(V)
|
|
Pixel Size
|
3.4µm x 3.4µm
|
|
Chroma
|
Monochrome, Black/white image
|
|
Compression format
|
MJPEG / YUV2 (YUYV)
|
|
Resolution & Frame rate
|
See above
|
|
Shutter Type
|
Electronic rolling shutter
|
|
Focus type
|
Fixed focus
|
|
S/N ratio
|
49dB
|
|
Dynamic range
|
55dB
|
|
Sensitivity
|
3300mV / lux-sec
|
|
Interface type
|
USB2.0
|
|
Lens FOV
|
50°
|
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Microphone
|
Not supported
|
|
Audio frequency
|
Optional
|
|
Power supply
|
USB BUS POWER
|
|
Power consumption
|
DC 5V, 70mW
|
|
Main chip
|
DSP/SENSOR/FLASH
|
|
Auto Exposure Control (AEC)
|
Support
|
|
Auto White Balance (AEB)
|
Support
|
|
Auto Gain Control (AGC)
|
Support
|
|
Dimension
|
25MM x 12MM
|
|
Storage temperature
|
-20°C to 70°C
|
|
Operating temperature
|
0°C to 60°C
|
|
USB cable length
|
Default
|
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
