1MP Dual Lens Stereo 3D CCD Camera Module Omnivision OV9732 Sensor

1MP Dual Lens Stereo 3D CCD Camera Module Omnivision OV9732 Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-DUAL-OV9732-S1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/4"Omnivision OV9732 CMOS
Resolution: 1mp*2 2560(H) X 720(V) Dimensions: 54MM X 30MM(customizable)
Lens FOV: 60°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Dual Lens
High Light:

72dB CCD Camera Module

,

1mp OV9732 CCD Camera Module

,

72dB nir camera module

Product Description

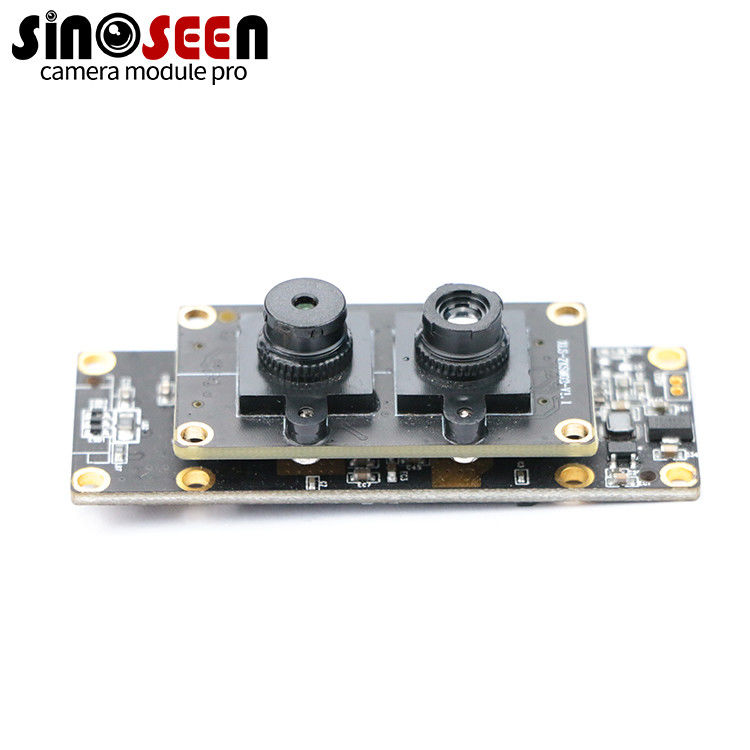

1MP Dual Lens Stereo 3D CCD Camera Module Omnivision OV9732 Sensor

1MP Dual lens Stereo 3D usb Camera Module with Omnivision OV9732 sensor



OV9732 camera module

This is one of our best-selling dual-lens stereo camera modules,Face Recognition Camera Module, It is a USB 2.0 interface with a 1/4-inch Omnivision OV9732 CMOS sensor, and the image quality is very high and stable. The camera module is designed with synchronization technology of 1 DSP, 1 USB cable and 2 sensors. You can output two images at the same resolution and frame rate at the same time, and both images are in color!
The biggest difference between this dual-lens camera module and other cameras is that you can use it as a dual-lens camera module or a single-lens camera module. When the resolutions such as 2560x720, 1280x480 and 640x240 are selected, it can be used as a dual-lens camera module. When you select resolutions such as 1280x720, 640x480, and 320x240, it can be used as a single-lens camera module and can only be used with one sensor/lens.





Specification

Model No

SNS-DUAL-OV9732-S1

Sensor

1/4’’ Omnivision OV9732 CMOS

Pixel

1 Mega Pixel

Most effective pixels

2560(H) x 720(V)

Pixel Size

3.0µm x 3.0µm

Image area

3888µm x 2208µm

Compression format

MJPG / YUY2

Resolution

See above

Frame Rate

See above

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus/Manually Adjustable

S/N ratio

39dB

Dynamic range

72dB

Sensitivity

2066mV / lux-sec

CRA (Chief Ray Angle)

9 degree

Interface type

USB2.0

Microphones

Built-in

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Lens

Lens Size: 1/4 inch



FOV: 60°



Thread Size: M12*P0.5

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, 200mW

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Not Supported

Dimension

54MM x 30MM

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

1MP Dual Lens Stereo 3D CCD Camera Module Omnivision OV9732 Sensor 01MP Dual Lens Stereo 3D CCD Camera Module Omnivision OV9732 Sensor 1



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Camera module customization process





1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right SENSER+ lens solution, and then design the product PCB or FPC according to the structural requirements.



2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
