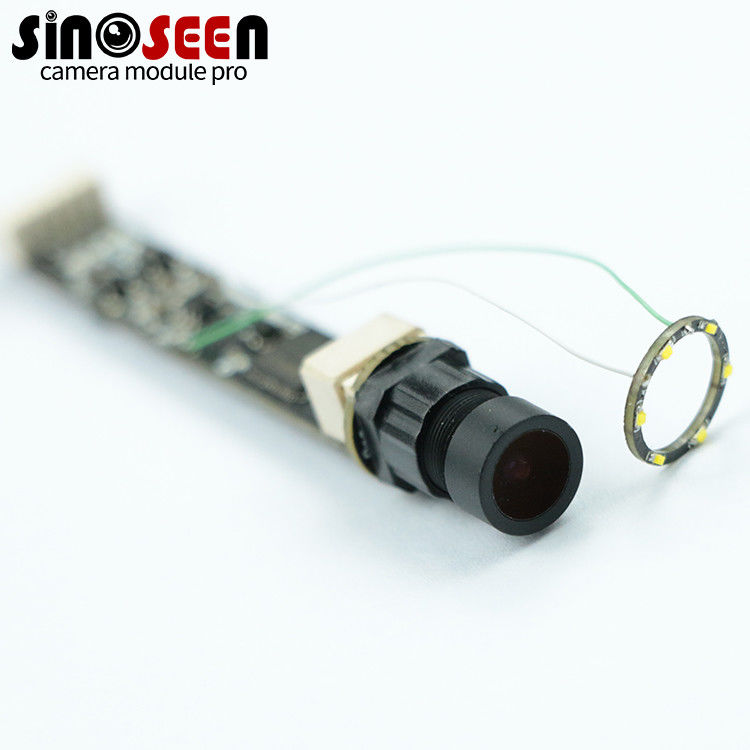

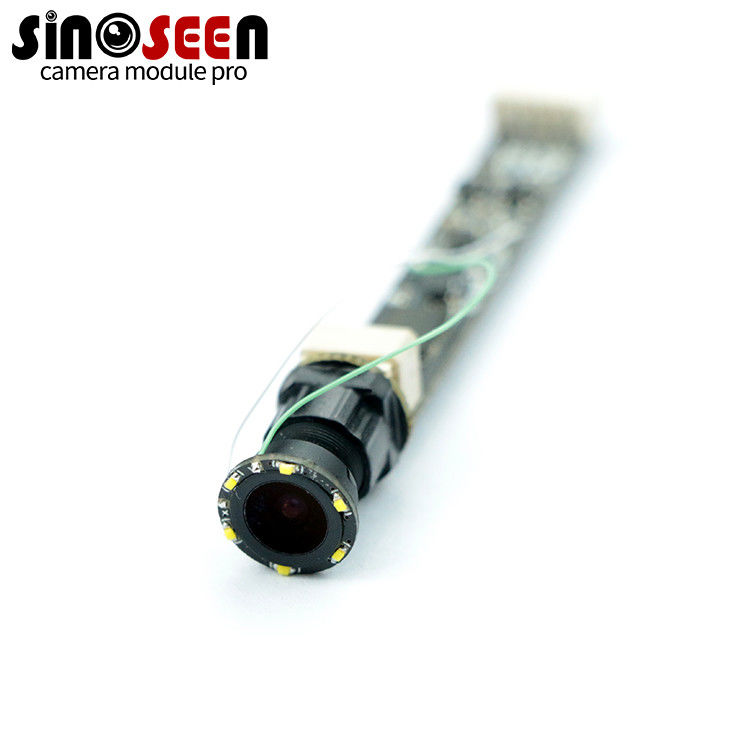

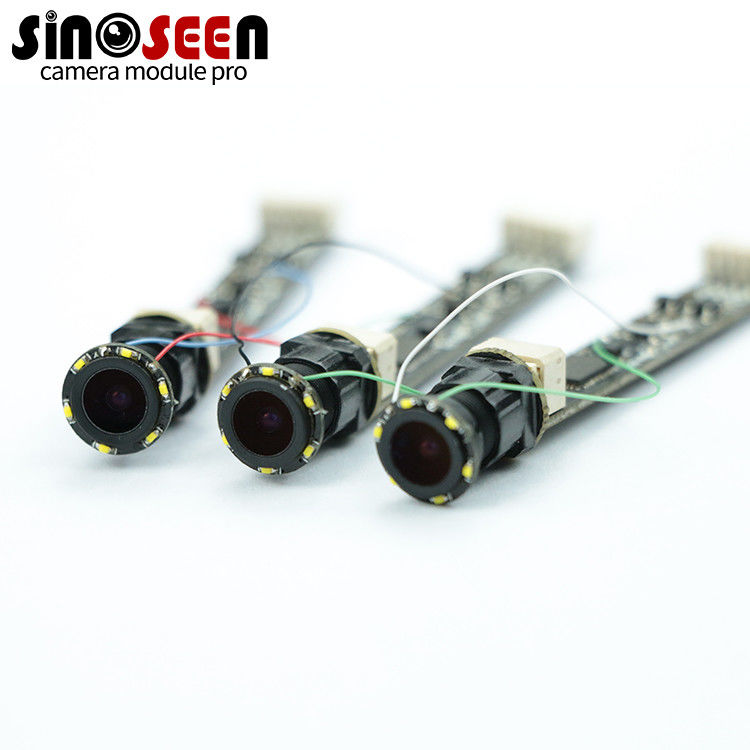

6 LED Lights Endoscope Camera Module WDR 1080p 30FPS Wide Angle Lens
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-ES001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4"CMOS Image Sensor OV2740 |
|---|---|---|---|
| Resolution: | 2MP 1920(H) X 1080(V) | Dimensions: | 54MM X 9.9MM(customizable) |
| Lens FOV: | 120°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Endoscope Camera Module |
| High Light: | 2MP 1080p Endoscope Camera Module,2MP WDR Endoscope Camera Module,2MP ov2740 camera module |
||
Product Description
6 LED Lights Endoscope Camera Module WDR 1080p 30FPS Wide Angle Lens
120 degrees wide angle lens WDR 2MP 1080p 30FPS endoscope usb camera module with 6 LED lights
Endoscope Camera Module
Unlike most other endoscopes, this is one of our best selling endoscope camera modules,generally, the FOV lens of a camera module is very small, about 70°, and this module is used for a 120° wide-angle lens. Of course, you can also choose other FOV angles according to actual needs, such as 90 degrees or 100 degrees.
The camera has a resolution of 2MP (1920x1080) and supports a frame rate of 30FPS. There are 6 high-quality LED lights, you can use it whether it is day or night. It is widely used in medical, automotive, sewer maintenance, plumbing and many other applications.
Inspection, industry, aerospace, railway, construction, electric power, archaeology, public safety, etc.
Specification
|
Model No |
SNS-2MP-ES001 |
|
Sensor |
1/4’’ CMOS image sensor OV2740 |
|
2Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
1.4µm x 1.4µm |
|
Compression format |
MJPG / YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
39dB |
|
Dynamic range |
69dB |
|
Lens FOV |
120° |
|
Sensitivity |
3300mV/Lux-sec |
|
Interface type |
USB2.0 high speed |
|
Adjustable parameter |
Brightness/Contrast/Saturation/Hue/Definition/ |
|
Audio frequency |
Support |
|
Night vision |
Supported with 6 LED lights |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 110mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control |
Support |
|
Auto White Balance |
Support |
|
Auto Gain Control |
Support |
|
Dimension |
54MM x 9.9MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB length |
Default |
|
|
WinXP/Vista/Win7/Win8/Win10 |
