MIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm Filters

MIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm Filters

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-DualOV9732-M1.0

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: Omnivision OV9732
Resolution: 2x1MP 1280x720x2 Dimensions: Customizable
Lens FOV: 60°(optional) Focus Type: Fixed Focus
Interface: MIPI Feature: Dual Lens
High Light:

650nm MIPI Dual Camera Module

,

650nm Dual Camera Module

,

650nm MIPI nir camera module

Product Description

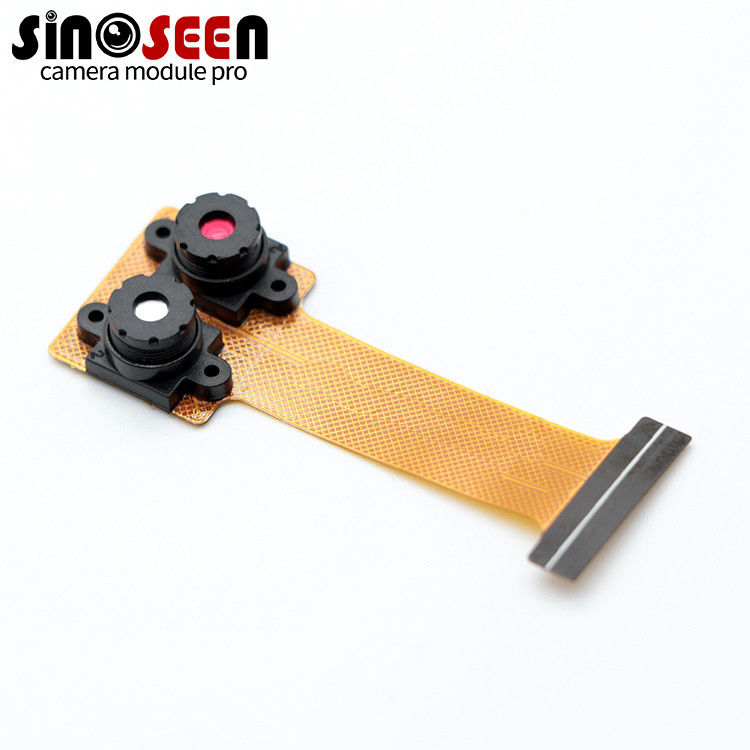

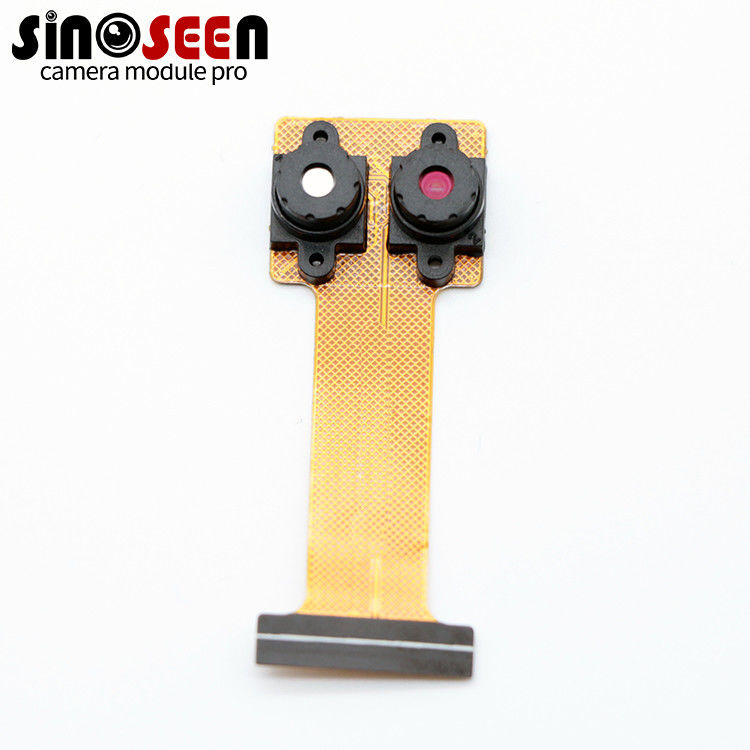

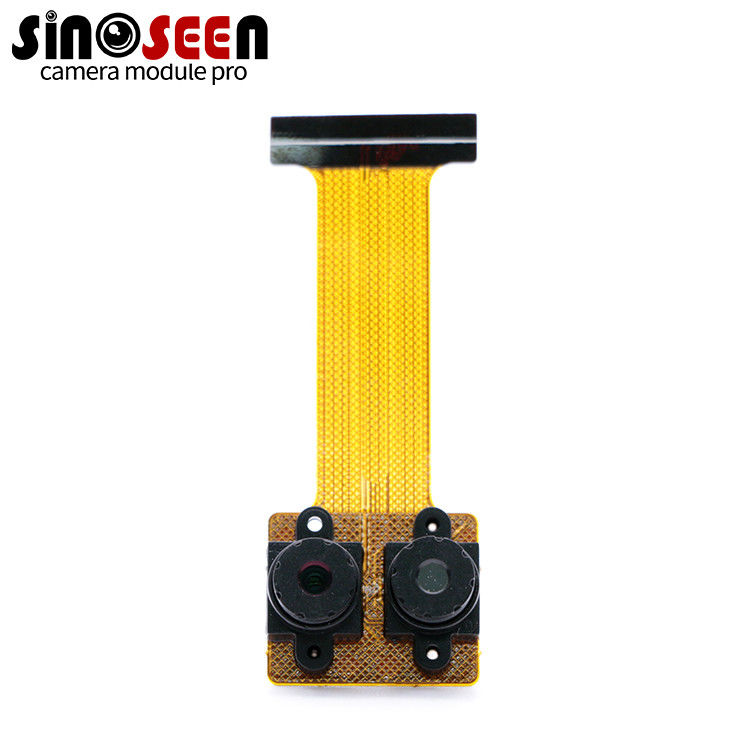

MIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm Filters

Dual Lens MIPI CSI2 Interface Flexible FPC 1MP 720P Camera Module With Omnivision OV9732 CMOS Sensor



This is our newly developed MIPI binocular camera module. It uses the OV9732 chip. The two lenses use different filters, 650nm and 850nm. You can choose different according to your actual needs. The filter, such as 940nm.


OV9732 is a 1/4 inch chip, 720P HD, and outputs color images. It has the following features:

support for image sizes:full size(1280x720),VGA(640x480),2x2 RGB binning (640x360)

support for output formats:10-bit RAW output with 1-lane MIPI and DVP

on-chip phase loch loop(PLL)

programmable controls for frame rate,mirror and flip,gain/expourse,and windowing

support for horizontal and vertical sub-sampling

low power module(LMP) function

capable of maintaining register values at software power down

standard SCCB interface

GPIO tri-state configurability and programmable polarity

FSIN

image quality control:defect pixel correction(DPC) and automatic black level calibration(ABLC)

Main applications: IP camera,life style camera,surveillance,motion camera





Specification

Model No

SNS-DualOV9732-M1.0

Sensor

1/4’’ Omnivision OV9732 CMOS

Pixel

1 Mega Pixel

Most effective pixels

2560(H) x 720(V)

Pixel Size

3.0µm x 3.0µm

Image area

3888µm x 2208µm

Compression format

MJPG / YUY2

Resolution

See above

Frame Rate

See above

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus/Manually Adjustable

S/N ratio

39dB

Dynamic range

72dB

Sensitivity

2066mV / lux-sec

CRA (Chief Ray Angle)

9 degree

Lens

Lens Size: 1/4 inch

FOV: 60°

Thread Size: M12*P0.5

Audio frequency

Optional

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Not Supported

Dimension

Customizable

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default



MIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm Filters 0MIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm Filters 1MIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm Filters 2
