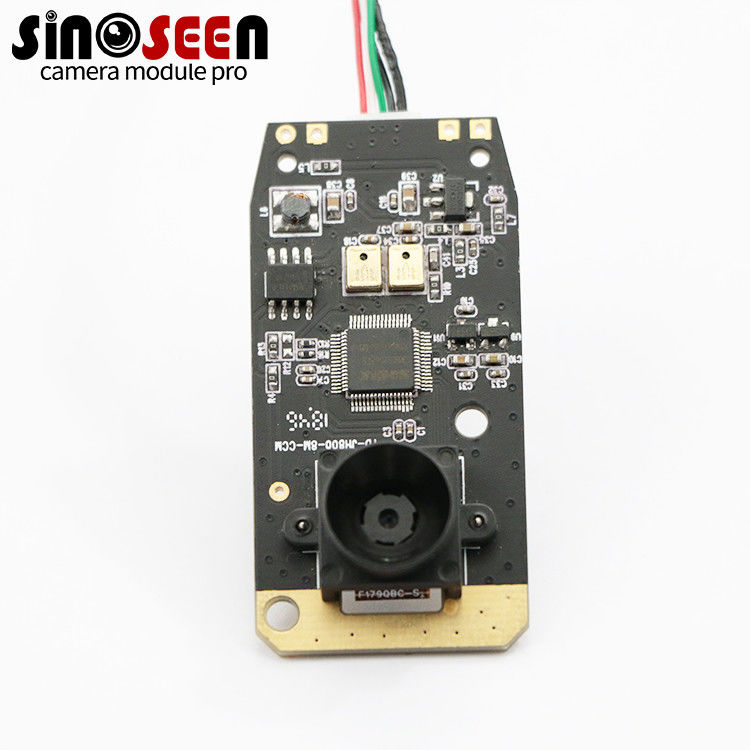

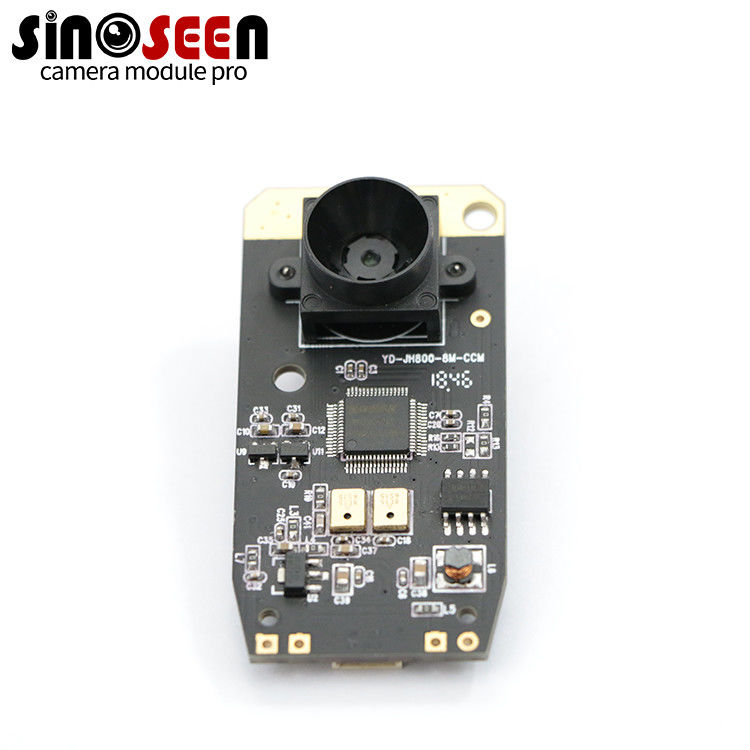

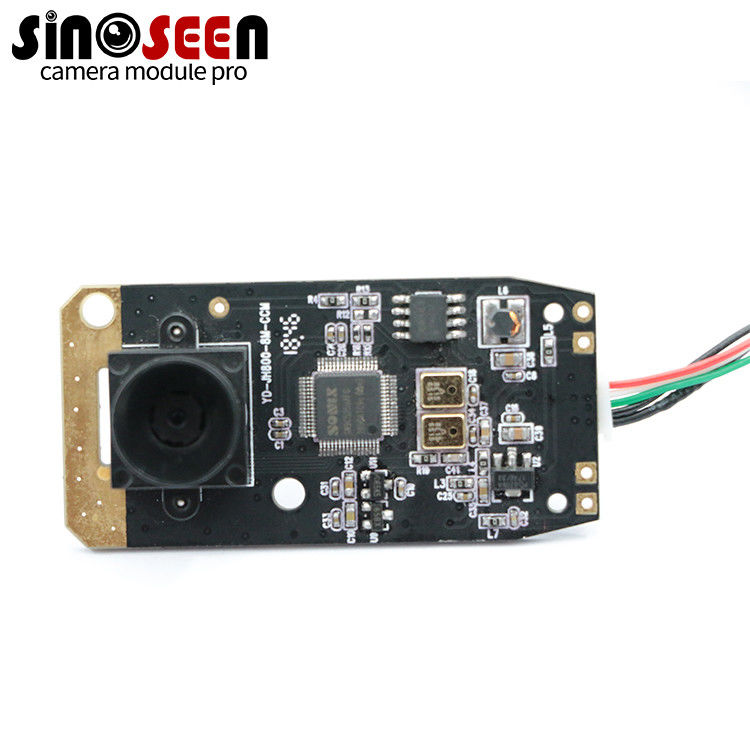

Omnivision OV9281 Sensor Global Shutter Camera Module 720P 120FPS Monochrome
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-1MP-OV9281-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4" Omnivision OV9281 CMOS |
|---|---|---|---|
| Resolution: | 1MP 1280(H) X 800(V) | Dimensions: | Customizable |
| Lens FOV: | 60°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Global Shutter |
| High Light: | 720P Global Shutter Camera Module,120FPS Global Shutter Camera Module,1MP ov9281 camera module |
||
Product Description
Omnivision OV9281 Sensor Global Shutter Camera Module 720P 120FPS Monochrome
720P 120FPS Monochrome Global Shutter USB Camera Module With Omnivision OV9281 Sensor
Global Shutter Camera Module
This is our customized global exposure camera module for customers. It is a monochrome Omnivision OV9281 CMOS sensor that only outputs black and white images. The biggest advantage of this camera is that it supports a high frame rate of 120FPS at a resolution of 1280x800 and a frame rate of 210FPS at a resolution of 640x400.
The OV9281 sensor is based on OmniVision's OmniPixel @ 3-GS pixel technology, with high-speed global shutter pixels, with
The first-class near infrared (NIR) quantum efficiency (QE) can meet the requirements of high resolution and low delay. In addition, the chief ray angle (CRA) of the OV9281 is 9 degrees and it uses a chip scale package (CSP).
This camera is widely used in many consumer and industrial applications, including augmented reality (AR), virtual reality (VR), drone collision avoidance, robotics, artificial intelligence, sports, machine vision, computer vision, industrial automation, medicine Vision, vision systems, imaging, automobiles, object tracking, agricultural technology, biometrics, barcode scanning and factory automation, etc.
Specification
|
Model No |
SNS-1MP-OV9281-v1.0 |
|
Sensor |
1/4" Omnivision OV9281 CMOS |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280(H) x 800(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image area |
3896um(H) x 2453um (V) |
|
Compression format |
MJPG / YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Global Shutter |
|
Chroma |
B&W, Monochrome |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
68dB |
|
Dark current |
80e-/sec |
|
Interface type |
High speed USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
|
Lens Size: 1/4 inch |
|
|
FOV: 60° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control |
Support |
|
Auto White Balance |
Support |
|
Auto Gain Control |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
