Small Size 5P Lens 2 Megapixel Camera Module Full HD HM2131 Chip
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ582M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.7" Himax HM2131 CMOS |
|---|---|---|---|
| Resolution: | 2MP (1920*1080) | Dimensions: | Customizable |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | FHD |
| High Light: | RoHS 2 Megapixel Camera Module,FHD 2 Megapixel Camera Module,HM2131 parallel camera module |
||
Product Description

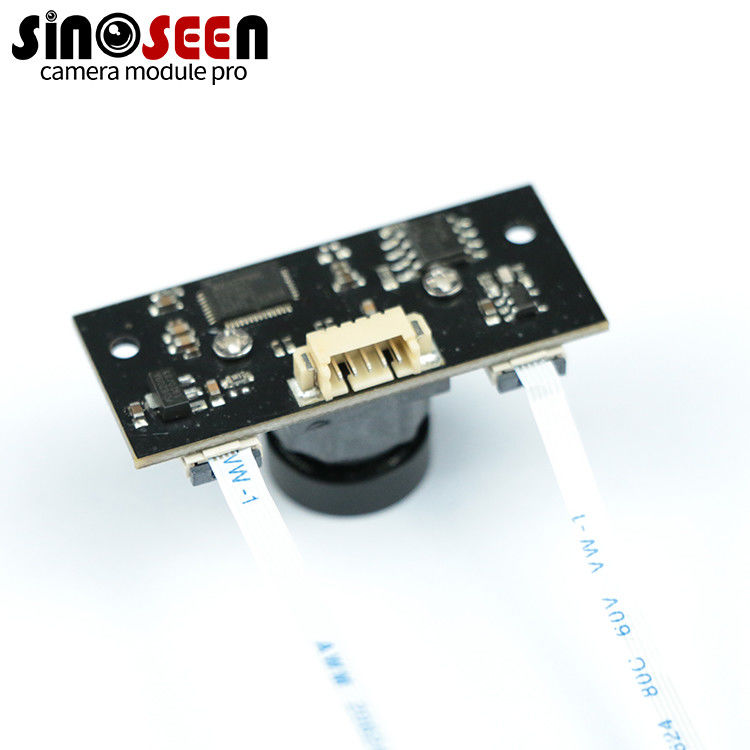

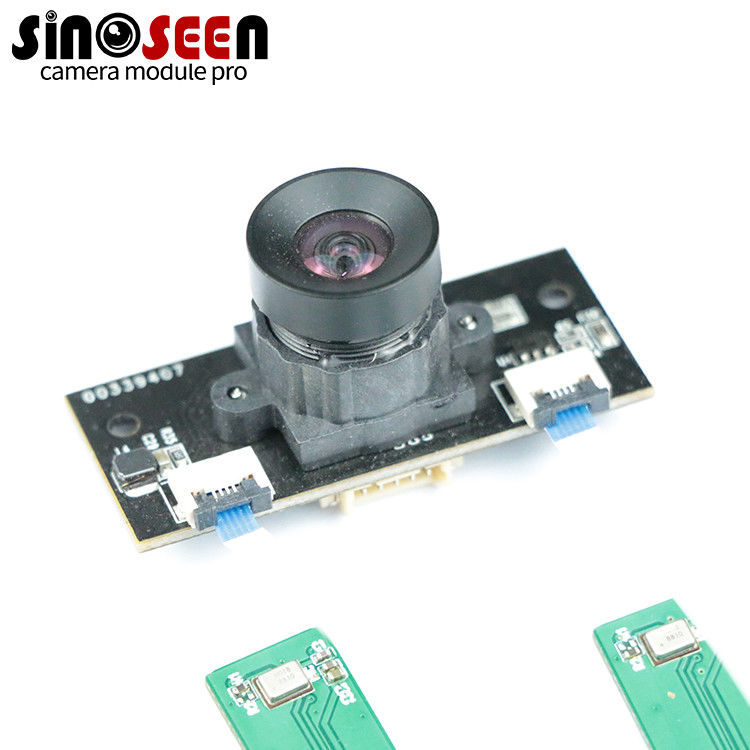

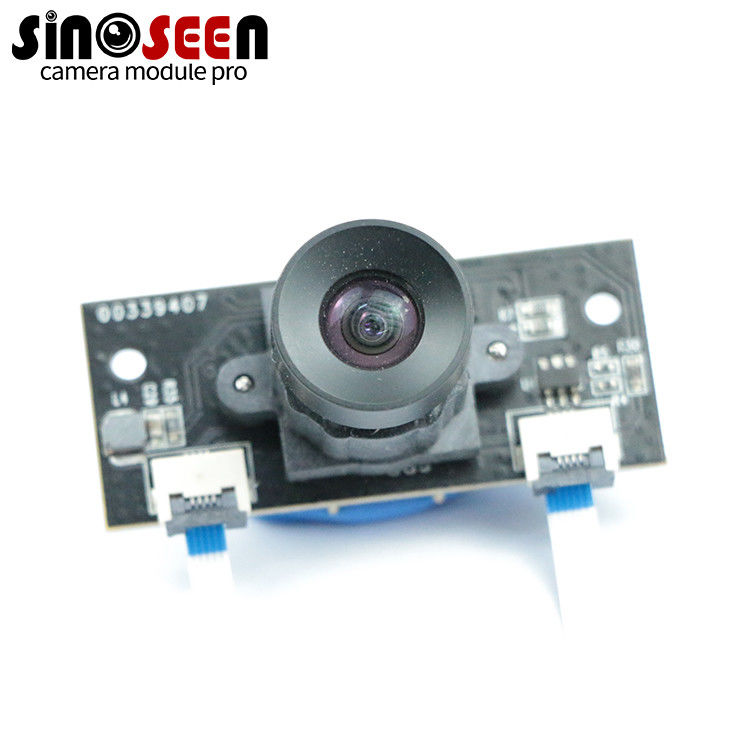

Small Size 5P Lens 2 Megapixel Camera Module Full HD HM2131 Chip
Small Size 2MP Resolution 1080P FHD USB 2.0 PCB Camera Module With Himax HM2131 Sensor
This is our latest FHD 2MP camera module tailored for customers. It uses the HM2131 chip we recommend to customers. HM2131 itself is a very good chip, with good image quality and very stable performance. In addition, we also matched the 5P lens according to customer requirements. Excellent chip and excellent lens together constitute a perfect camera module. It is perfect for customers to use it for webcams and video conferencing.
In terms of firmware, we also changed the version one by one, and finally determined the most suitable picture effect.
Due to the structure of the customer's housing, we used the design of an external microphone. This makes the microphone flexible and can receive sounds from all directions.
You can also customize the required solution according to the actual needs, install the LED or customize the required size, we have no problem.
|
Model No |
SNS-DZ582M parallel camera module |
|
Sensor |
1/2.7’’ Himax HM2131 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Protocol & Connection |
Plug-&-Play (UVC compliant) |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Output Format |
10b / 12b RAW |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
38.9dB |
|
CRA |
12° |
|
Sensitivity |
4600mV / Lux – sec |
|
Interface type |
USB2.0 |
|
Lens FOV |
90° |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Audio frequency |
Optional |
|
Microphone |
2 |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
