USB Interface Ultral HD 4k 8MP Camera Module With SONY IMX317 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-BE508M-V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.5"SONY IMX317 |
|---|---|---|---|
| Resolution: | 8MP (3840*2160) | Dimensions: | Customizable |
| Lens FOV: | 100°(optional) | Focus Type: | Fixed Focus |
| Interface: | Micro USB2.0 | Feature: | 4K |
| High Light: | RoHS 8MP Camera Module,30fps 8MP Camera Module,IMX317 usb camera module |
||
Product Description
USB Interface Ultral HD 4k 8MP Camera Module With SONY IMX317 Sensor
Micro USB Interface 8MP Ultral HD 4k camera module With SONY IMX317 Sensor
HD 4k 8MP Camera Module

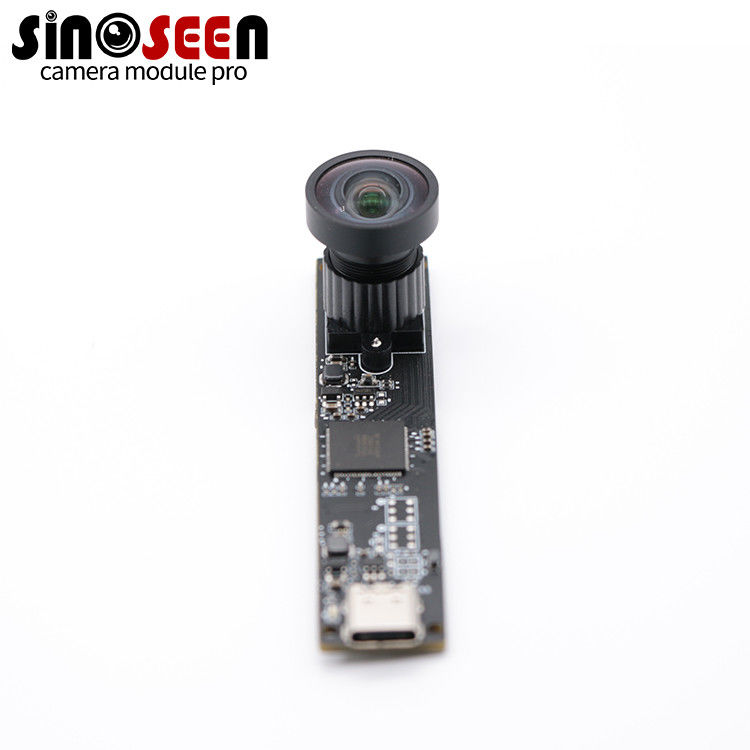

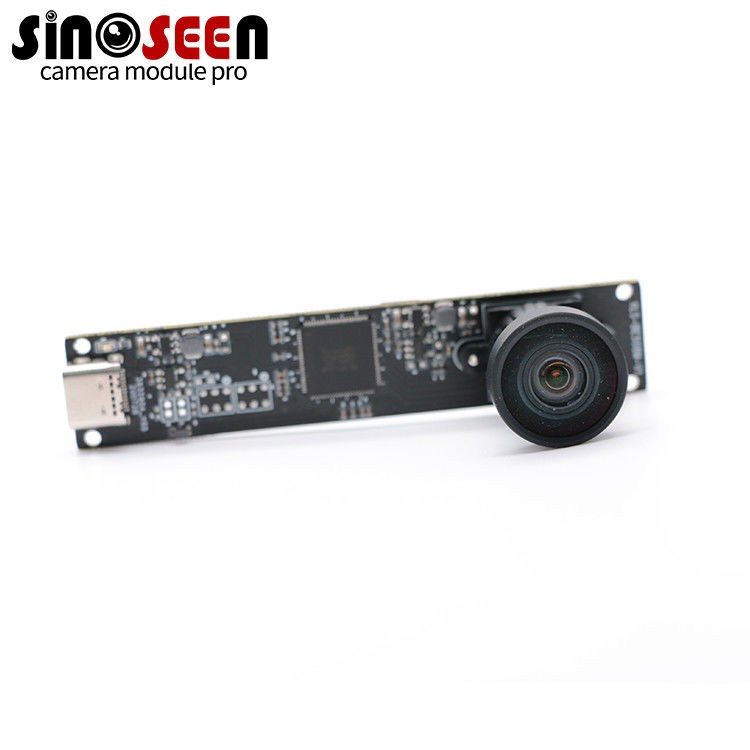

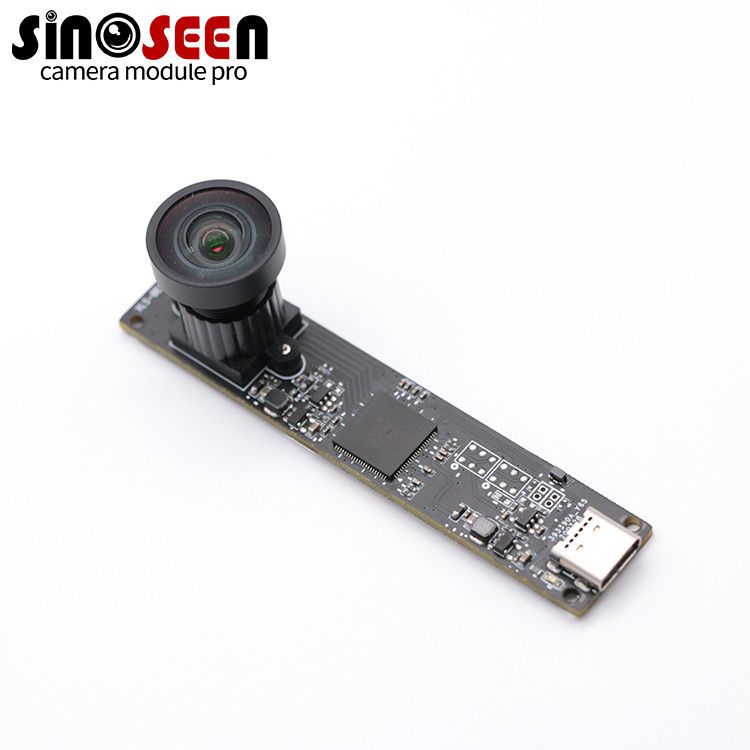

This is a long strip shape USB camera module with sensor SONY IMX317.Due to the requirements of the housing structure, we placed the lens on one end of the PCB board according to customer requirements. IMX317 is an excellent 8MP UHD sensor, and after continuous firmware optimization, we are very confident to tell you that this is the best 8MP camera module at present. And it can also support 30FPS at full resolution, which is very rare.
It supports the following resolutions:
MJPG
3840*2160 30fps 2592*1944 30fps 2048*1536 30fps 1920x1080 30fps 1280x720 30fps 800x600 30fps 640x480 30fps 320x240 30fps
YUYV2
3840*2160 3fps 2592*1944 5fps 2048*1536 5fps 1920x1080 15fps 1280x720 15fps 800x600 30fps 640x480 30fps 320x240 30fps
This module is widely used in high-definition photography, video surveillance, video conference all-in-one, video teaching, Internet of Things, aerial drones, QR code recognition and other fields
|
Model No |
SNS-BE508M-V2 |
|
Sensor |
1/2.5’’ SONY IMX317 CMOS |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3840(H) x 2160(V) |
|
Pixel Size |
1.62µm x 1.62µm |
|
Image area |
3864um (H) x 2196um (V) |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Chroma |
Color, RGB |
|
Clock Frequency |
6 to 72 MHz |
|
Microphones |
Built-in |
|
Interface type |
Micro USB |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
|
Lens |
Focal length: 3.6mm |
|
Lens construction: 5E+IR |
|
|
D FOV: 100 degree |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Operating Voltage |
DC 5V |
|
Operating Current |
260mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available USB solution
0.3MP
Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)
Global shutter:OV7251 (1/7.5”,B/W)
High frame rate:200FPS SC031GS(1/6”,B/W)
Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)
1MP
Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760
Small size for endoscope:OV9734 GC1009 HM1091
Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)
Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)
2MP
Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)
1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237
1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)
1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
1080P-WDR (30FPS): AR0230 AR0331(300W)
1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
1080P big size: IMX385
1080P global shutter: OG02B10(color) OG02B1B(B/W)
5MP
500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650
FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)
8MP
800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390
8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)
13MP-16MP
IMX214(13M) IMX258(13M) IMMX298(16M)
USB3.0
IMX335 OV5648 IMX179 IMX307 PS5268
H264
GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
