4K Auto Focus Small Lens 8MP Camera Module With SONY IMX219 COMS Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-SH-4K-AF-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4" SONY IMX219 |
|---|---|---|---|
| Resolution: | 8MP 3296(H) X 2512(V) | Dimensions: | Customizable |
| Lens FOV: | 80°(optional) | Focus Type: | Auto Focus |
| Interface: | USB2.0 | Feature: | 4K |
| High Light: | 4K 8MP Camera Module,4K IMX219 8MP Camera Module,8MP imx219 camera module |
||
Product Description
4K Auto Focus Small Lens 8MP Camera Module With SONY IMX219 COMS Sensor
4K 8MP Auto Focus Small Lens USB Camera Module With SONY IMX219 COMS Sensor
8MP Camera Module

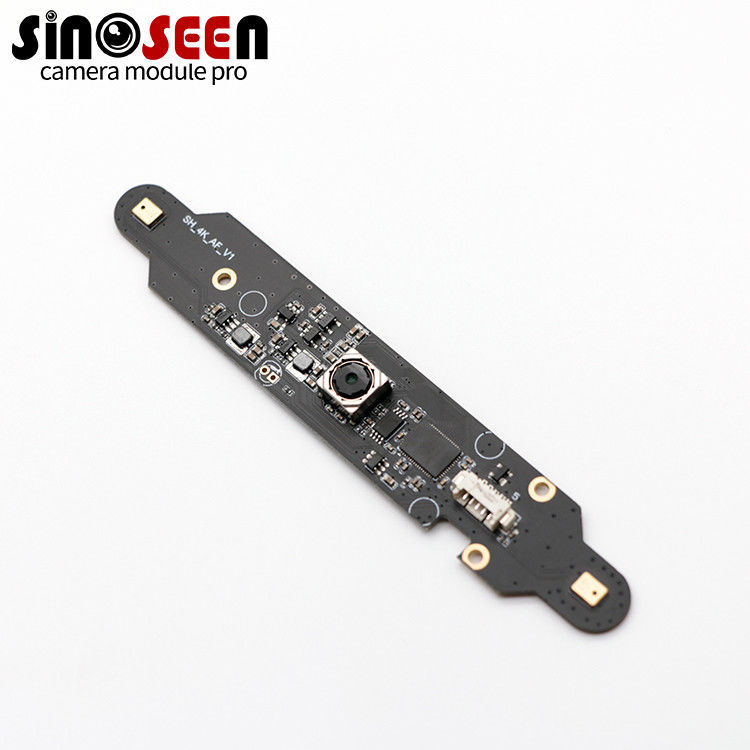

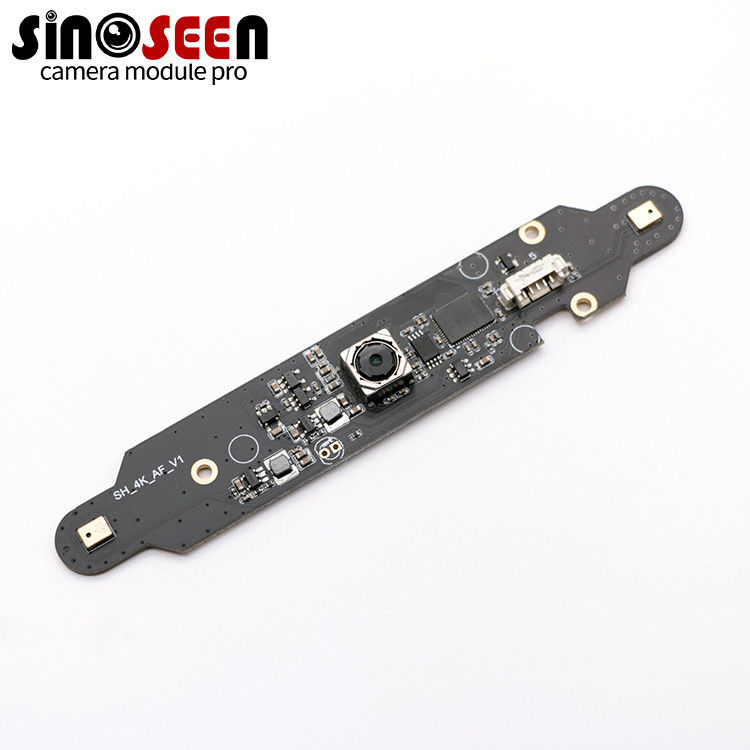

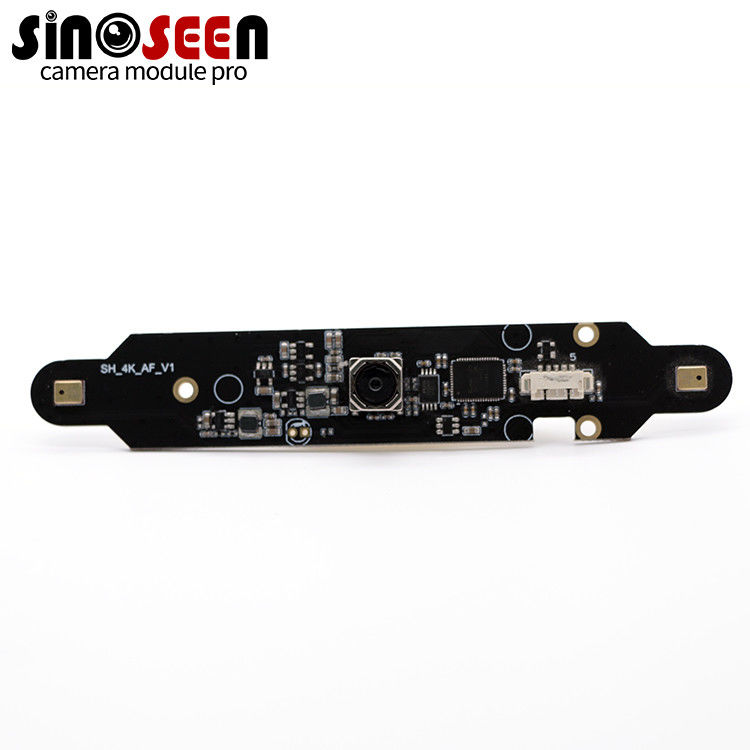

This is a 4K 8MP auto focus small lens USB camera module with SONY CMOS sensor IMX219.The IMX219 is a diagonal 4.60mm(Type 1/4.0) CMOS active pixel type image sensor with a square pixel array and 8.08M effective pixels.This chip operates with three power supplies,analogue 2.8V,digital 1.2V,and IF 1.8V,and has low power consumption.High sensitivity,low dark current,and no smear are achieved through the adoption of R,G,and B primary color pigment mosaic filters.
This chip features an electronic shutter with variable charge-storage time.In addition,this sensor is designed for use in cellular phone and tablet PC.
Specification
|
Model No |
SNS-SH-4K-AF-V1 |
|
|
|
Image Sensor |
IMX219 |
|
|
|
Image Sensor Size |
1/4”CMOS |
|
|
|
Effective Pixels |
3296*2480 |
|
|
|
Pixel size |
1.12umX1.12um |
|
|
|
Optical distortion |
≤0.5% |
|
|
|
Image sensor Data output |
Raw Data 10bits |
|
|
|
Video output |
MPJG / YUY2 |
|
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
≥0.01LUX at F1.2 |
NO LED |
|
|
Digital interface |
USB BUS POWER 5P-1.0mm |
|
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
Max 1.5W |
|
|
|
IR-LED |
|
|
|
LED IR-850( |
NO |
LED |
|
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M6.5 |
LENS |
|
|
Lens Construction |
5P+IR |
|
|
|
F/NO |
2.2 |
|
|
|
EFL |
3.5mm |
|
|
|
FOV |
D:80°±3° |
|
|
|
Micro shooting distance |
AF 10cm-infinity |
|
|
|
MIC |
support MIC |
|
|
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
