High Resolution 2K HD Embedded Camera Module 5MP With 2 Microphones

High Resolution 2K HD Embedded Camera Module 5MP With 2 Microphones

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-PC825M-V1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/4" Omnivision OV5693
Resolution: 5MP HD 2592(H)X1944(V) Dimensions: Customizable
Lens FOV: 65°(optional) Focus Type: Auto Focus
Interface: USB2.0 Feature: HD
High Light:

OV5693 Embedded Camera Module

,

2K 5MP Embedded Camera Module

,

OV5693 USB camera module

Product Description

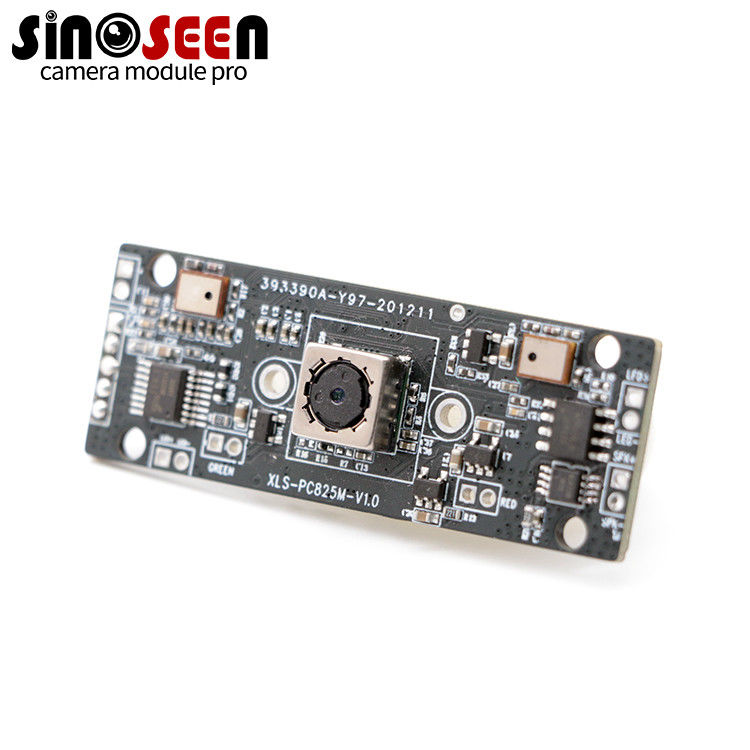

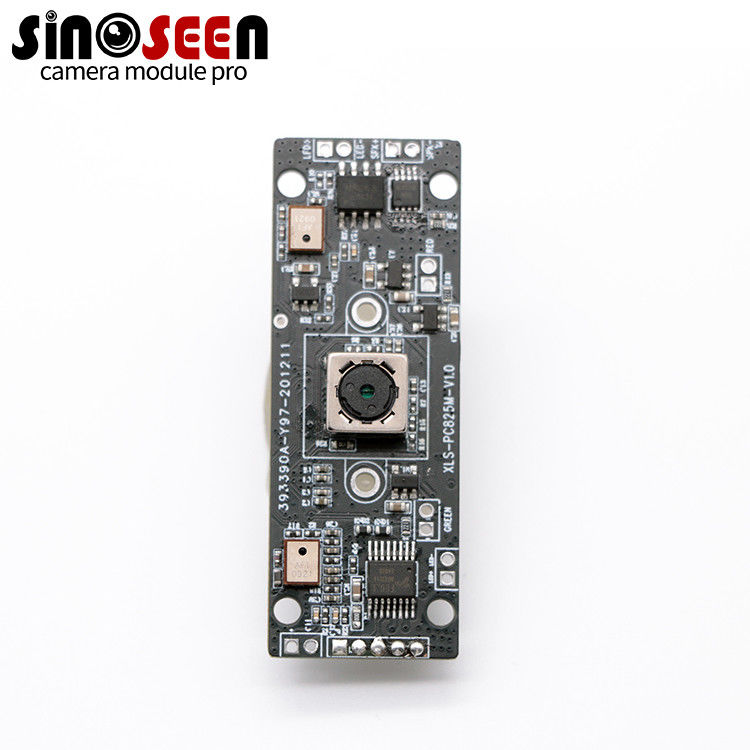

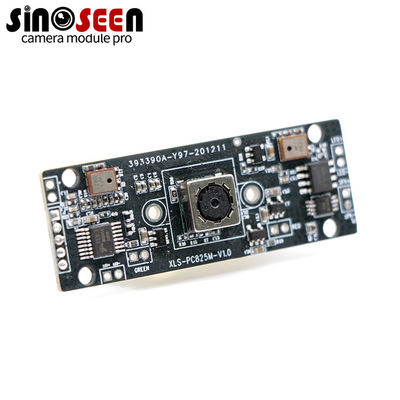

High Resolution 2K HD Embedded Camera Module 5MP With 2 Microphones

Customizable 5MP 2K HD Auto Focus PCB Board USB Camera Module With 2 Microphones





Camera Module 5MP

This is the 5MP HD USB camera module that we OEM for the customer according to the customer's needs. Combining the customer's actual needs and expected price, we recommend the Omnivision OV5693 chip. OV5693 can reach 30FPS at full resolution (2592x1944), which is excellent. The PCB size is customized according to the customer's case size. Since customers use it for video conferencing applications, we have installed two microphones with very good sound reception on the module.

The OV5693 USB camera module can also be used in application scenarios such as access control equipment, all-in-one machines, cat-eye access control, video doorbell, high-definition surveillance, high-resolution cameras, webcast cameras, video conferencing equipment, etc.
If you need to customize your own camera module, you can also tell us your needs or requirements, and we will have a professional engineering team to provide you with the best solution





Specification

Model No

SNS-PC825M-V1



Image Sensor

Omnivision OV5693



Image Sensor Size

1/4”CMOS



Effective Pixels

2592(H)X1944(V)



Pixel size

1.4umX1.4um



Optical distortion

≤0.5%



Image sensor Data output

Raw Data 10bits



Video output

MPJG / YUY2



SNR max

TBD



Dynamic range

TBD



Min. Illumination

≥0.01LUX at F1.2

NO LED

Digital interface

USB BUS POWER 5P-1.0mm



Transfer rates

480MB/S



Power requirements

5V±5%



Storage temperature

-20℃to70℃



operating temperature

-10℃to60℃



Power Consumption

NO LED

Max 1.5W





IR-LED





LED IR-850(

NO

LED

OS

Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC )



Lens Construction

5P+IR



F/NO

2.2



EFL

3.5mm



FOV

D:65°±3°



Micro shooting distance

AF 10cm-infinity



MIC

support MIC





High Resolution 2K HD Embedded Camera Module 5MP With 2 Microphones 0High Resolution 2K HD Embedded Camera Module 5MP With 2 Microphones 1High Resolution 2K HD Embedded Camera Module 5MP With 2 Microphones 2



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current available USB solution



0.3MP

Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

Global shutter:OV7251 (1/7.5”,B/W)

High frame rate:200FPS SC031GS(1/6”,B/W)

Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)



1MP

Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

Small size for endoscope:OV9734 GC1009 HM1091

Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)



2MP

Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

1080P-WDR (30FPS): AR0230 AR0331(300W)

1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

1080P big size: IMX385

1080P global shutter: OG02B10(color) OG02B1B(B/W)



5MP

500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)



8MP

800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)



13MP-16MP

IMX214(13M) IMX258(13M) IMMX298(16M)



USB3.0

IMX335 OV5648 IMX179 IMX307 PS5268



H264

GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
