Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-21108-V1.0

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/4" Omnivision OV9732
Resolution: 1MP (1280*720) Dimensions: Customizable
Lens FOV: 72°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Small Size
High Light:

720P 1MP Camera Module

,

OV9732 1MP Camera Module

,

OV9732 720P Camera Module

Product Description

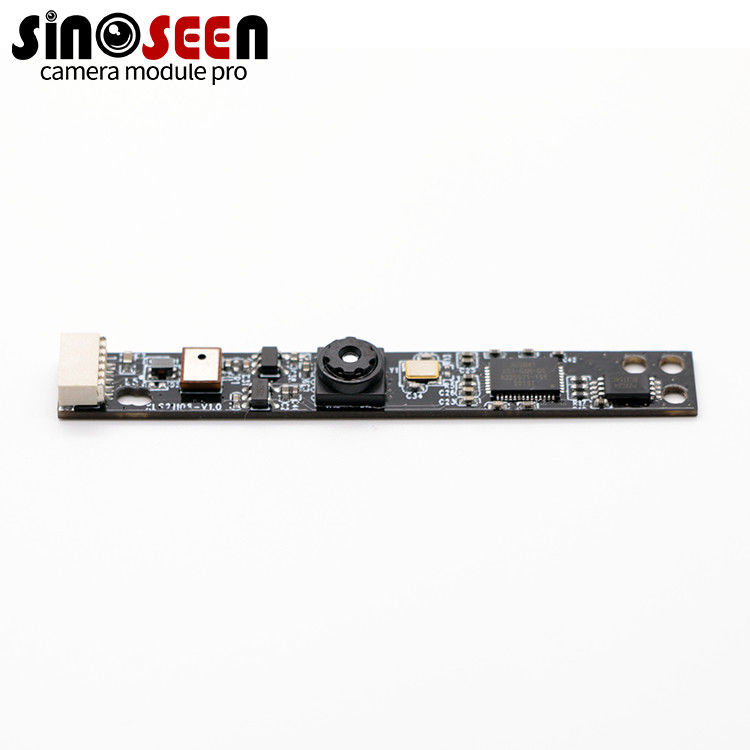

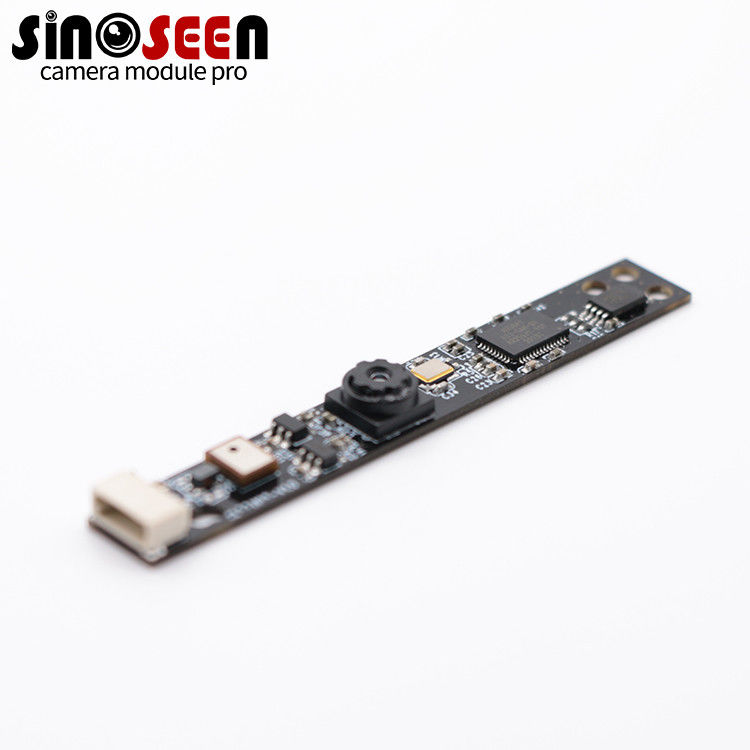

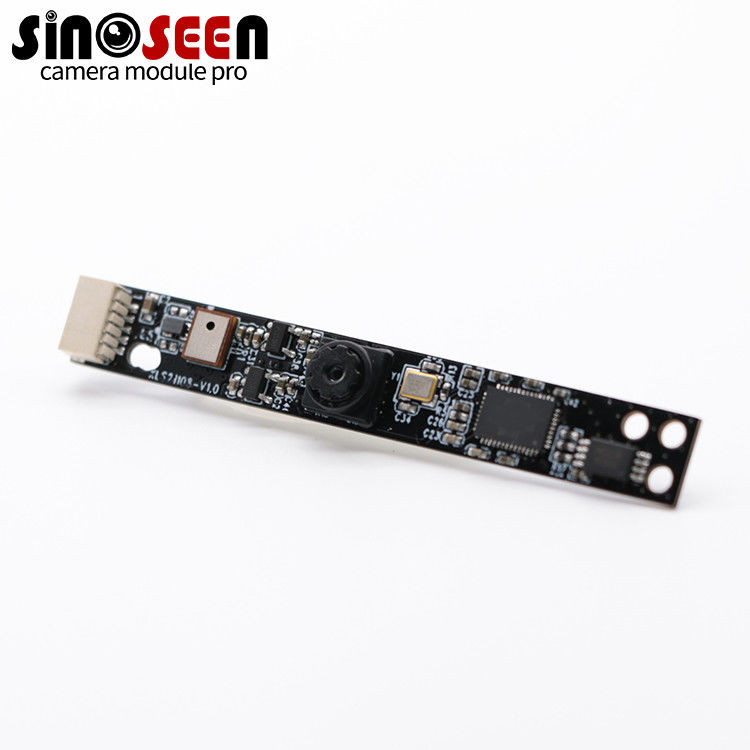

720P Small USB 1MP Camera Module Omnivision OV9732 Sensor For Notebook Laptop

720P Small USB Camera Module With Omnivision OV9732 Sensor For Notebook Laptop



USB 1MP Camera Module

This is also one of our compact USB camera module, with sensor OV9732 from Omnivision. OV9732 is a very good and stable chip. It has been recognized and accepted by many customers. The resolution of OV9732 is 1MP, 1280x720. It is widely used in IP camera, life style camera, surveillance and motion camera.





Specification

Model No

SNS-21108-V1.0

Sensor

1/4" Omnivision OV9732

Pixel

1 Mega Pixel

Most effective pixels

1280(H) x 720(V)

Pixel Size

3µm x 3µm

Protocol & Connection

Plug-&-Play (UVC compliant)

Compression format

MJPEG / YUV2 (YUYV)

Resolution & Frame rate

See above

Output Format

Raw Data 10bits

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

S/N ratio

41dB

Interface type

USB2.0

Lens FOV

72°

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Audio frequency

Optional

Microphone

2

Power supply

USB BUS POWER

Power consumption

DC 5V, 180mW

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

Customizable

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC



720P Small USB 1MP Camera Module Omnivision OV9732 Sensor For Notebook Laptop 0720P Small USB 1MP Camera Module Omnivision OV9732 Sensor For Notebook Laptop 1



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current available USB solution



0.3MP

Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

Global shutter:OV7251 (1/7.5”,B/W)

High frame rate:200FPS SC031GS(1/6”,B/W)

Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)



1MP

Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

Small size for endoscope:OV9734 GC1009 HM1091

Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)



2MP

Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

1080P-WDR (30FPS): AR0230 AR0331(300W)

1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

1080P big size: IMX385

1080P global shutter: OG02B10(color) OG02B1B(B/W)



5MP

500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)



8MP

800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)



13MP-16MP

IMX214(13M) IMX258(13M) IMMX298(16M)



USB3.0

IMX335 OV5648 IMX179 IMX307 PS5268



H264

GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
