Wide Angle IMX179 8MP USB Camera Module Small Lens Fixed Focus
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM208M-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/3.2" SONY IMX179 |
|---|---|---|---|
| Resolution: | 8MP 3264(H) X 2448(V) | Dimensions: | 38mmx38mm (customizable) |
| Lens FOV: | 100°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB3.0 | Feature: | 4K |
| High Light: | IMX179 8MP USB Camera Module,8MP USB Camera Module,imx179 8mp usb camera |
||
Product Description
Wide Angle IMX179 8MP USB Camera Module Small Lens Fixed Focus

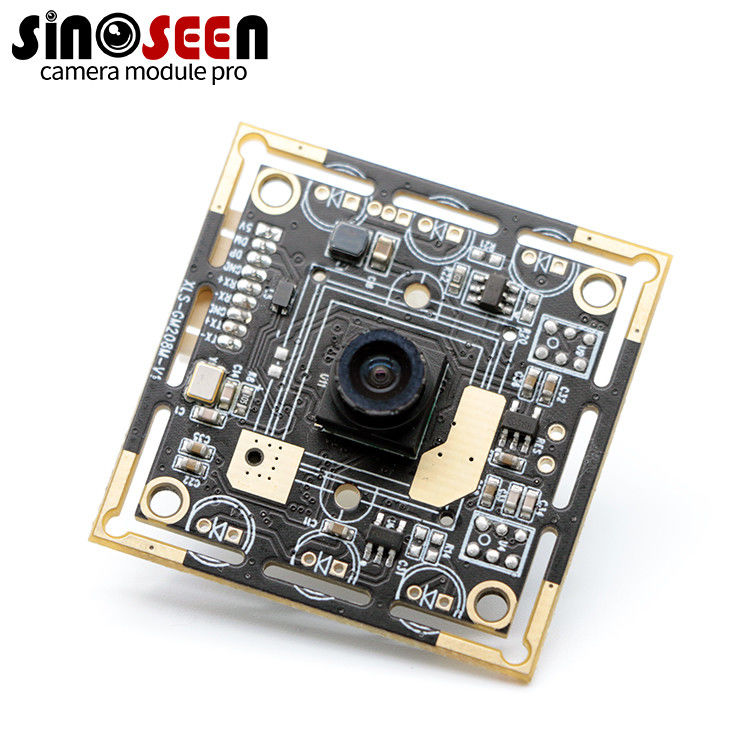

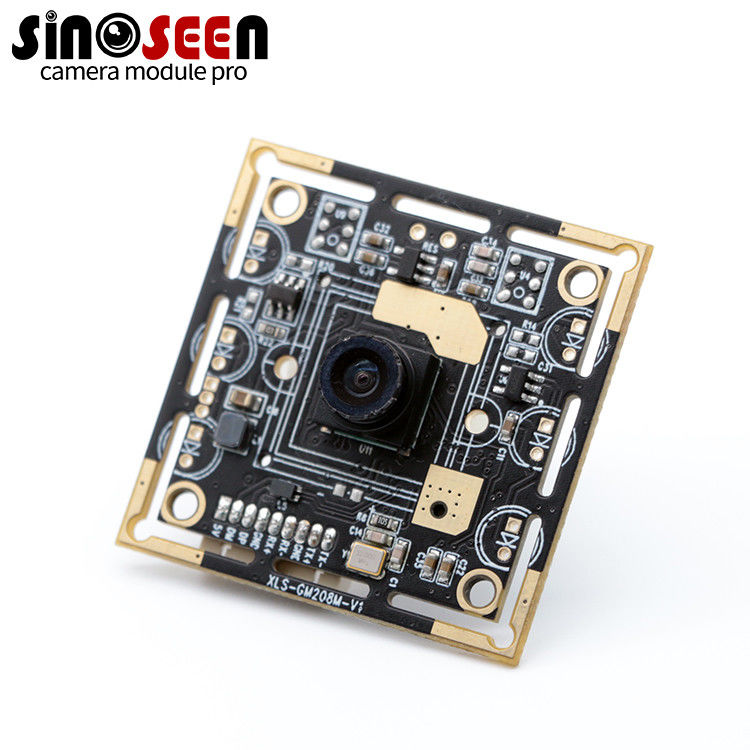

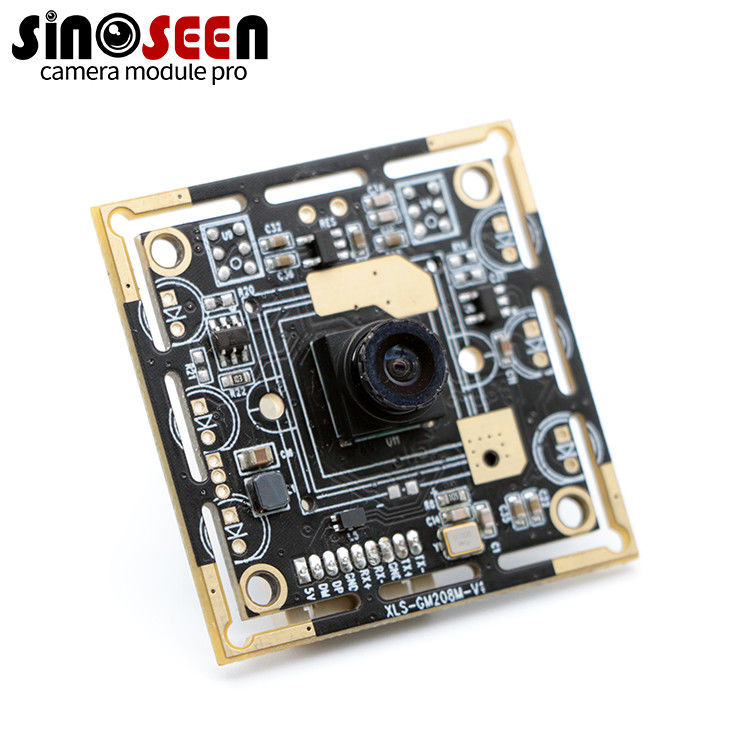

Fixed Focus Wide Angle Small Lens 8MP USB3.0 Camera Module With SONY IMX179 Sensor
IMX179 8MP USB Camera Module
This is a very widely used 8MP USB camera module with SONY IMX179, the current interface is USB3.0, and it can also be compatible with USB2.0, just change the connector. The lens uses a very compact 100-degree lens, high-definition distortion-free, and the effect is very good.
It supports below frame rates:
MPEG
3264x2448@15fps； 2592x1944@15fps； 1920x1080@30fps； 1600x1200@30fps； 1280x720@30fps； 960x540@30fps； 848x480@30fps； 640x480@30fps； 640x360@30fps； 320x240@30fps；
YUYV2
3264x2448@2fps； 2592x1944@2fps； 1920x1080@5fps； 640x480@30fps； 320x240@30fps；
Specification
|
Model No
|
SNS-GM208M-V1
|
|
Sensor
|
1/3.2’’ IMX179
|
|
Pixel
|
8 Mega Pixel
|
|
Most effective pixels
|
3264(H) x 2448(V)
|
|
Pixel Size
|
1.4µm x 1.4µm
|
|
Compression format
|
MJPG / YUY2
|
|
Resolution
|
see above
|
|
Frame rate
|
see above
|
|
Shutter Type
|
Electronic rolling shutter
|
|
Focus type
|
Fixed focus
|
|
S/N ratio
|
36dB
|
|
Dynamic range
|
60dB
|
|
Interface type
|
USB 3.0/USB2.0
|
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens
|
Focal length: 3.6mm
|
|
|
Lens Size: 1/3 inch
|
|
|
FOV: 100° (Optional)
|
|
|
Thread Size: M12*P0.5
|
|
Audio frequency
|
Support
|
|
microphone
|
Built-in
|
|
Power supply
|
USB BUS POWER
|
|
Power consumption
|
DC 5V, 200mA
|
|
Main chip
|
DSP/SENSOR/FLASH
|
|
Auto Exposure Control (AEC)
|
Support
|
|
Auto White Balance (AEB)
|
Support
|
|
Auto Gain Control (AGC)
|
Not Supported
|
|
Dimension
|
38MM x 38MM (32MM x 32MM)
|
|
Storage temperature
|
-20°C to 70°C
|
|
Operating temperature
|
0°C to 60°C
|
|
USB cable length
|
Default
|
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
