USB 2.0 0.3MP OEM Camera Module 640*480 Pixels For QR Code Scanner
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHs |
| Model Number: | SNS-0.3MP-GC0308-SS1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/ 6.5" GalaxyCore GC0308 |
|---|---|---|---|
| Resolution: | 0.3MP (640*480) | Dimensions: | Customizable |
| Lens FOV: | 60°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Low Power Consumption |
| High Light: | USB2.0 OEM Camera Module,30fps 0.3MP OEM Camera Module,0.3MP 30fps module camera |
||
Product Description
USB 2.0 0.3MP OEM Camera Module 640*480 Pixels For QR Code Scanner

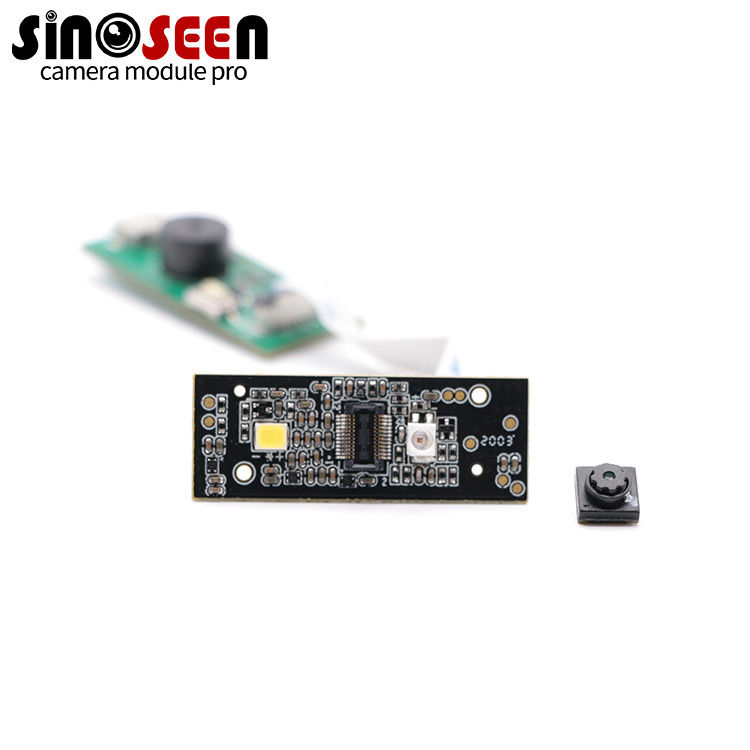

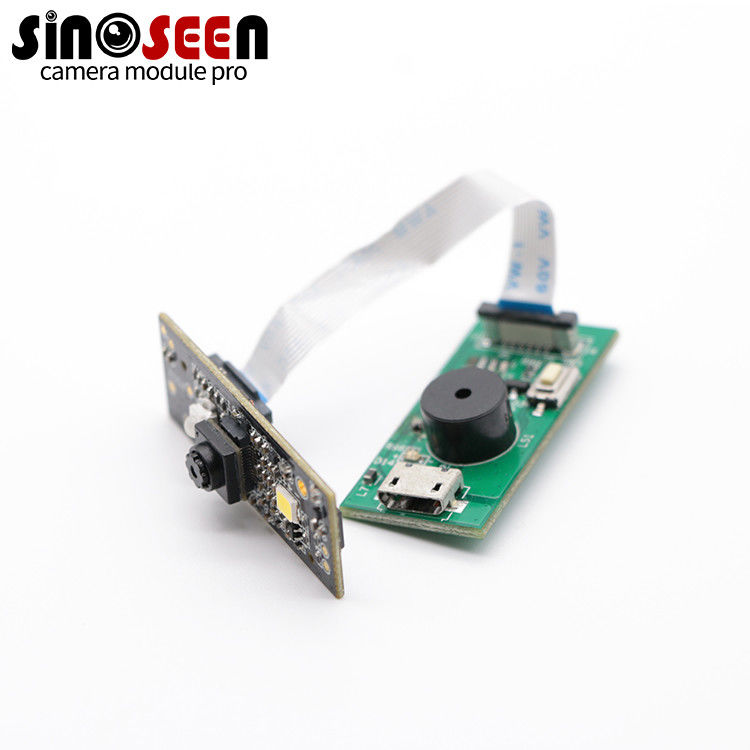

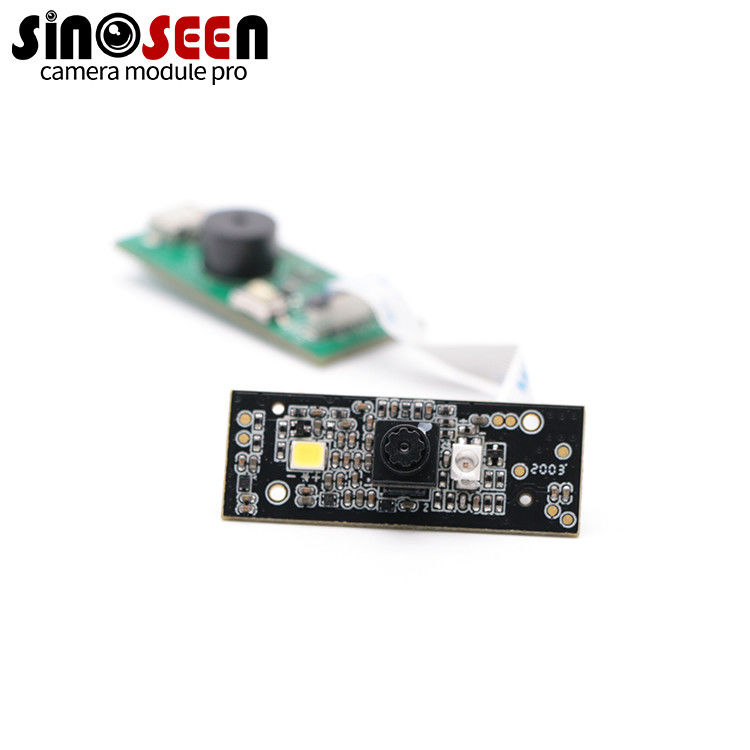

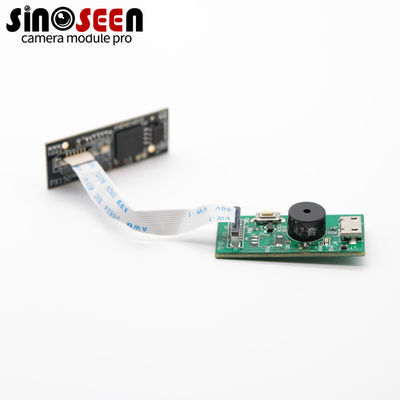

Quick Speed Bar Code QR Code Scanner USB Camera Module Solution With Flashlight
This is the overall solution of a USB camera module used as a QR code barcode scanner, which can quickly recognize QR codes.The USB camera modules, it is 0.3MP/VGA (860*640) resolution with GalaxyCore GC0308 sensor, quality is good and stable.
Also, this is one is the lowest cost USB camera modules. We have strong partnership with our sensor supplier & other components suppliers, and we have the know-how to make quality as high as possible, cost as low as possible.
This module can be used in many applications, like desktop PC cameras, electronic toys, robotics, computer vision, machine vision,industrial, power supply, digital still cameras and camcorders, video telephone and conferencing equipments, security systems, bar code reader, QR (quick response) code, ticket gate and many others
|
Model No
|
SNS-0.3MP-GC0308-SS1
|
|
Sensor
|
1/ 6.5’’ GalaxyCore GC0308
|
|
Pixel
|
0.3 Mega Pixel
|
|
Most effective pixels
|
640 (H) x 480 (V)
|
|
Pixel Size
|
3.4µm x 3.4µm
|
|
Compression format
|
YUY2 ONLY
|
|
Resolution & Frame rate
|
640x480@30fps;
352x288@30fps;
320x240@30fps;
176x144@30fps;
160x120@30fps;
|
|
Shutter Type
|
Electronic rolling shutter
|
|
Focus type
|
Fixed focus
|
|
S/N ratio
|
49dB
|
|
Dynamic range
|
55dB
|
|
Sensitivity
|
3300mV/Lux-sec
|
|
Interface type
|
USB2.0
|
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/Gamma
|
|
Audio frequency
|
Optional
|
|
Lens FOV
|
Default 60° (Optional)
|
|
Lens Thread Size
|
M12*P0.5 (Optional)
|
|
Power supply
|
USB BUS POWER
|
|
Power consumption
|
DC 5V, 70mW
|
|
Main chip
|
DSP/SENSOR/FLASH
|
|
Auto Exposure Control (AEC)
|
NOT Support
|
|
Auto White Balance (AEB)
|
NOT Support
|
|
Auto Gain Control (AGC)
|
NOT Support
|
|
Dimension
|
30mm x 25mm
|
|
Storage temperature
|
-30°C to 80°C
|
|
Operating temperature
|
0°C to 60°C
|
|
USB cable length
|
Default
|
|
Support OS
|
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
