Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-2MP-IMX385

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 2MP Camera Module Sensor: SONY IMX385
Resolution: 2MP 1945 (H) * 1097 (V) Dimensions: (customizable)
Lens FOV: 70°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: WDR
High Light:

WDR USB Camera Module

,

2MP USB Camera Module

,

IMX385 2MP Camera Module

Product Description

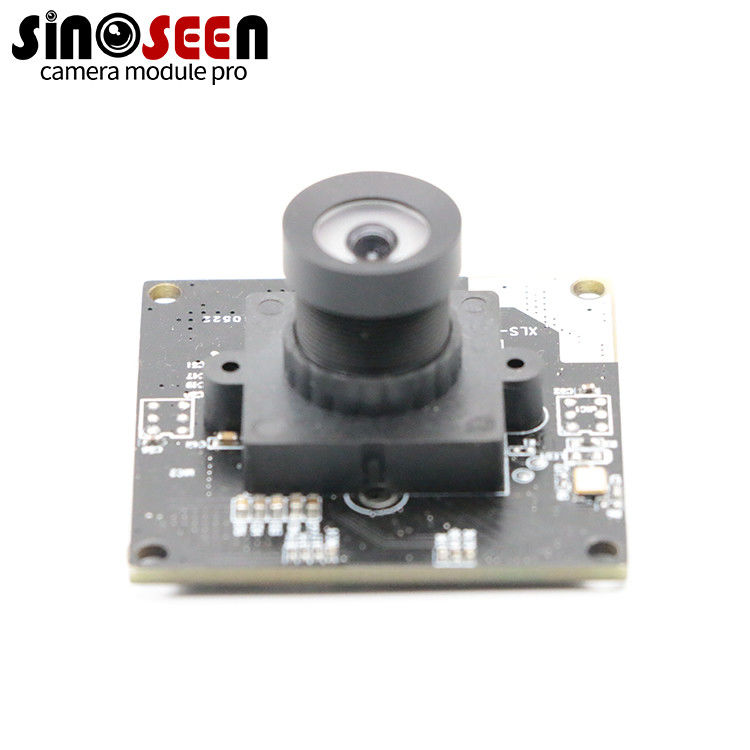

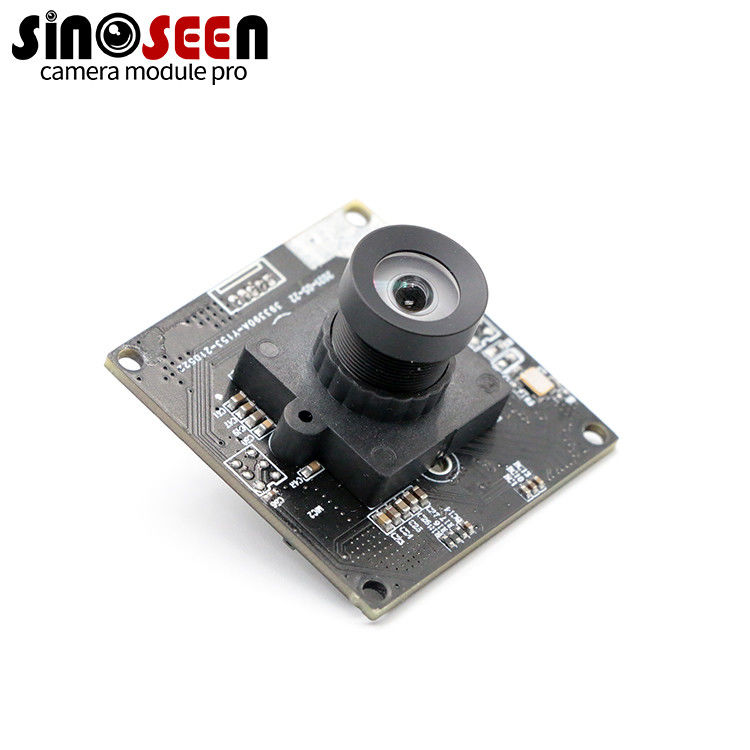

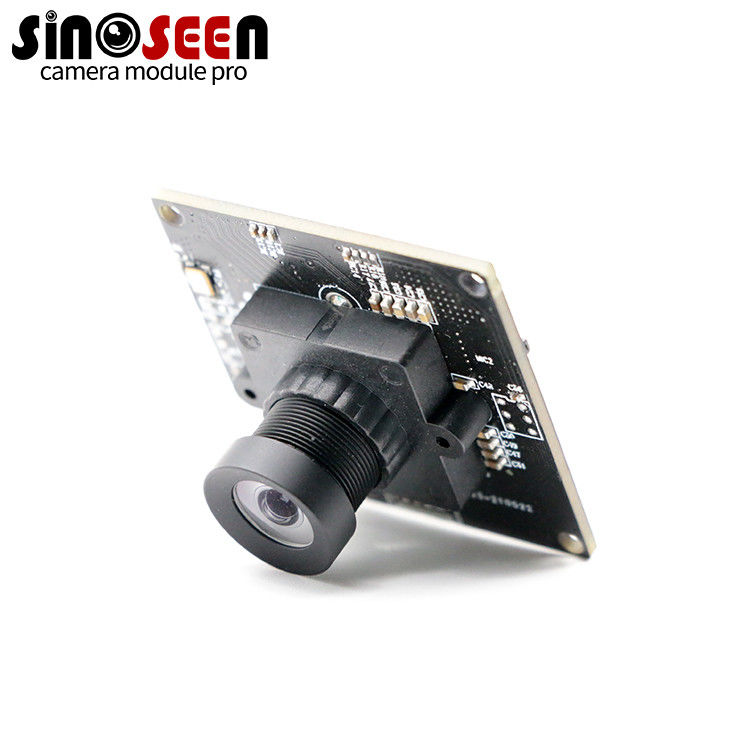

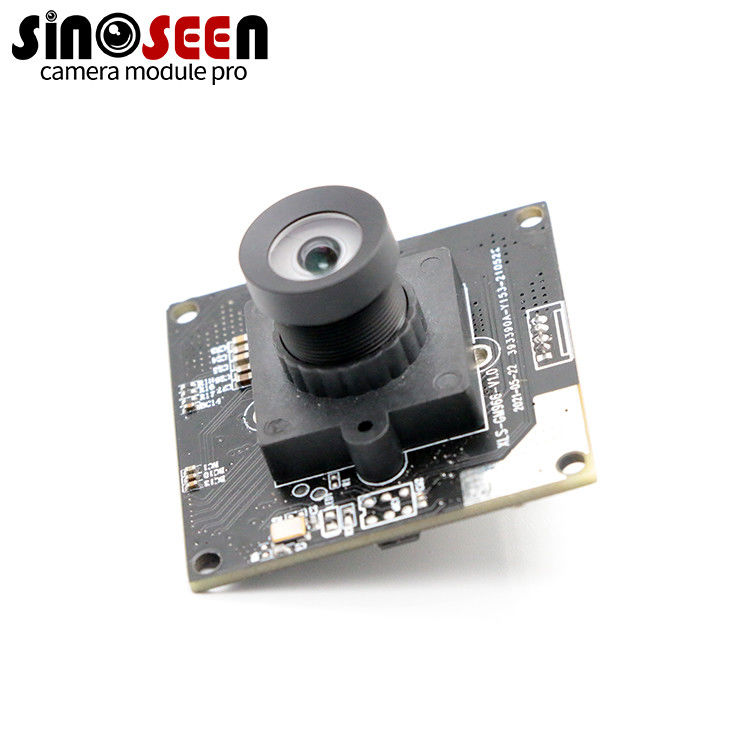

IMX385 WDR 2MP USB CAMERA MODULE

Hot Selling 2mp WDR Usb Camera Module With SONY COMS Sensor IMX385



Usb Camera Module

This is our newly developed camera module with Sony CMOS sensor IMX385,IMX385 is a CMOS active pixel image sensor with an effective pixel array of 1945 (H) × 1097 (V).The chip uses analog 3.3 V, digital 1.2 V and interface 1.8 V three power supplies, and has low power consumption.By realizing high sensitivity, low dark current and no tailing, it adopts R, G, B primary color mosaic filters.The sensor has a wide dynamic range function, allowing you to get a very clear picture even when shooting moving objects or shaking during shooting.The chip has a variable electronic shutter charge integration time.If you need, we can also customize your camera module according to your needs. Application: surveillance cameras, video surveillance, video conference all-in-one, video teaching, Internet of Things, aerial drones, QR code recognition and other fields


Specification
Pixel Size 3.75 µm (H) × 3.75 µm (V)
Effective Pixels 1945 (H) × 1097 (V)
Image Sensor 1/2
Sensor Type Sony IMX385
Operating temperature -30~85˚C
Storage temperature -40~85˚C
Lens view FOV60°(optional),F/N(optional)
TV Distortion <1%
Operating voltage AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V
Dimensions Customizable



Hot Selling 2mp WDR Usb Camera Module With SONY COMS Sensor IMX385 0

Hot Selling 2mp WDR Usb Camera Module With SONY COMS Sensor IMX385 1

Hot Selling 2mp WDR Usb Camera Module With SONY COMS Sensor IMX385 2



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current available USB solution



0.3MP

Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

Global shutter:OV7251 (1/7.5”,B/W)

High frame rate:200FPS SC031GS(1/6”,B/W)

Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)



1MP

Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

Small size for endoscope:OV9734 GC1009 HM1091

Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)



2MP

Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

1080P-WDR (30FPS): AR0230 AR0331(300W)

1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

1080P big size: IMX385

1080P global shutter: OG02B10(color) OG02B1B(B/W)



5MP

500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)



8MP

800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)



13MP-16MP

IMX214(13M) IMX258(13M) IMMX298(16M)



USB3.0

IMX335 OV5648 IMX179 IMX307 PS5268



H264

GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
