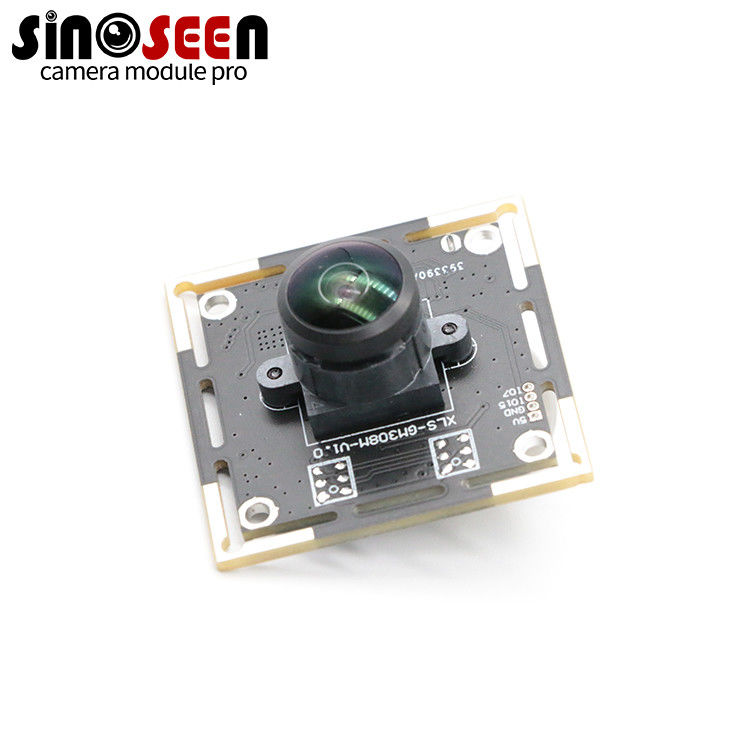

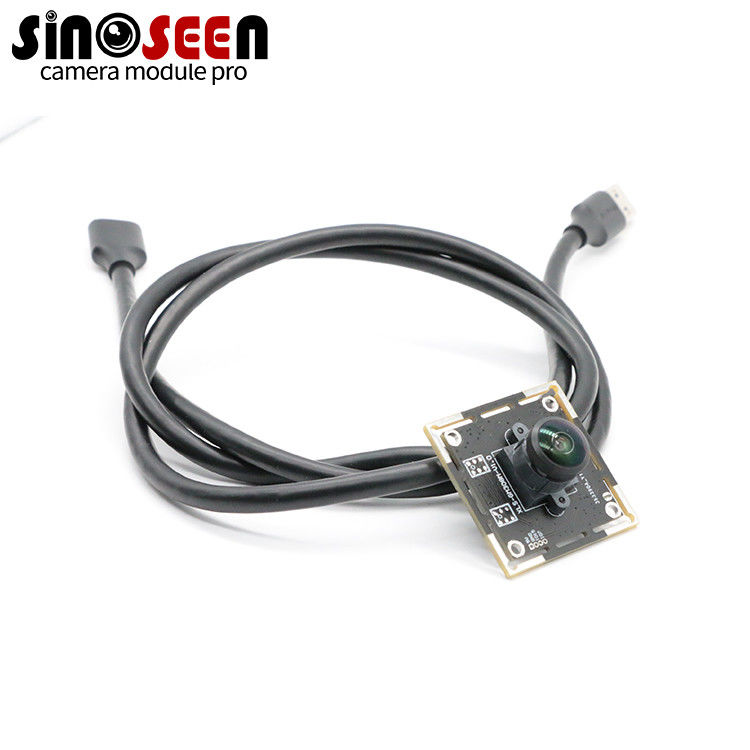

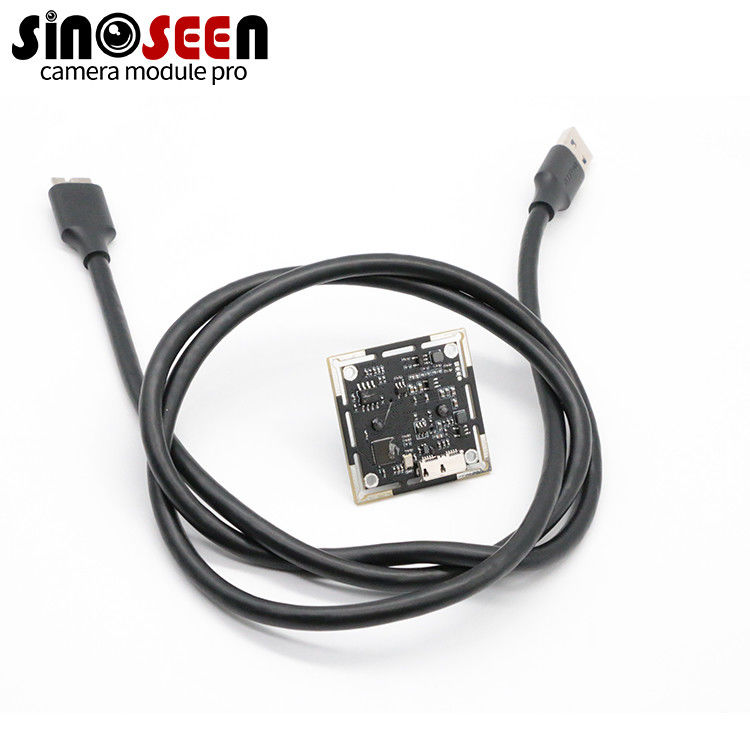

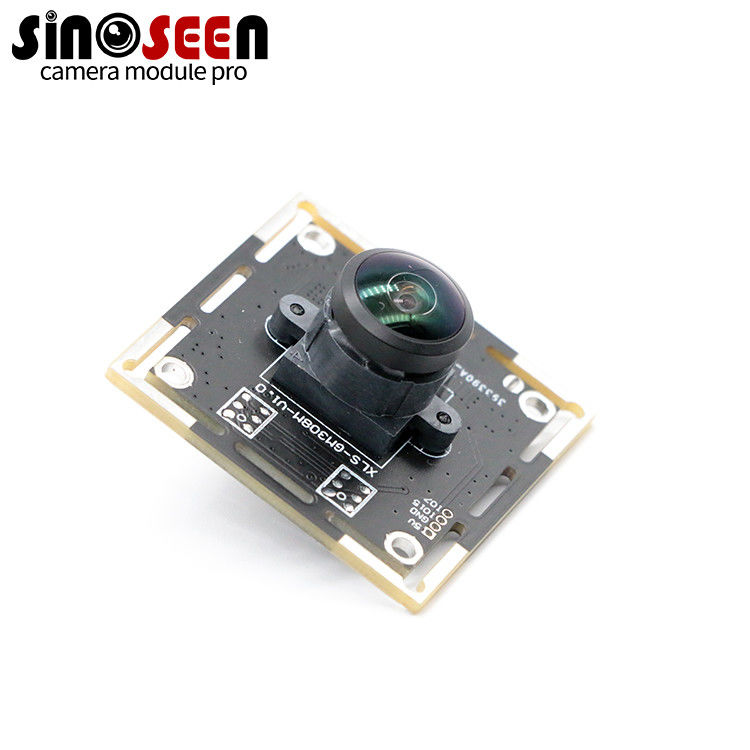

New Style IMX179 Fixed Focus 4K 8mp Camera Module Usb 3.0/2.0
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-imx179 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 8mp Camera Module | Sensor: | 1/3.2'' IMX179 |
|---|---|---|---|
| Resolution: | 8MP3264(H) X 2448(V) | Dimensions: | (customizable) |
| Lens FOV: | 100°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB3.0 | Feature: | 4K |
| High Light: | USB 3.0 8MP Camera Module,USB 2.0 8MP Camera Module,Fixed Focus 4K Camera Module |
||
Product Description
8MP 4K USB3.0 CAMERA MODULE IMX179
New Style IMX179 Fixed Focus 4K 8mp Camera Module Usb 3.0/2.0
8MP USB camera module
This is a very widely used 8MP USB camera module with SONY IMX179, the current interface is USB3.0, and it can also be compatible
with USB2.0,Sony IMX179 is Sony’s latest third-generation back-illuminated technology camera. It is far ahead of other 8 million cameras in terms of low light capability, power consumption and photographing speed, and even far ahead of the earlier mass-produced Sony with 13 million pixels IMX135.
If you need, we can also customize your camera module according to your needs.
|
Model No |
SNS-imx179 |
|
Sensor |
1/3.2’’ IMX179 |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3264(H) x 2448(V) |
|
Pixel Size |
1.4µm x 1.4µm |
|
Compression format |
MJPG / YUY2 |
|
Resolution |
see above |
|
Frame rate |
see above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
36dB |
|
Dynamic range |
60dB |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
|
Lens Size: 1/3 inch |
|
|
FOV: 95° (Optional) |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Support |
|
microphone |
Built-in |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Not Supported |
|
Dimension |
90MM x 15MM (customizable) |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
|
WinXP/Vista/Win7/Win8/Win10 |
