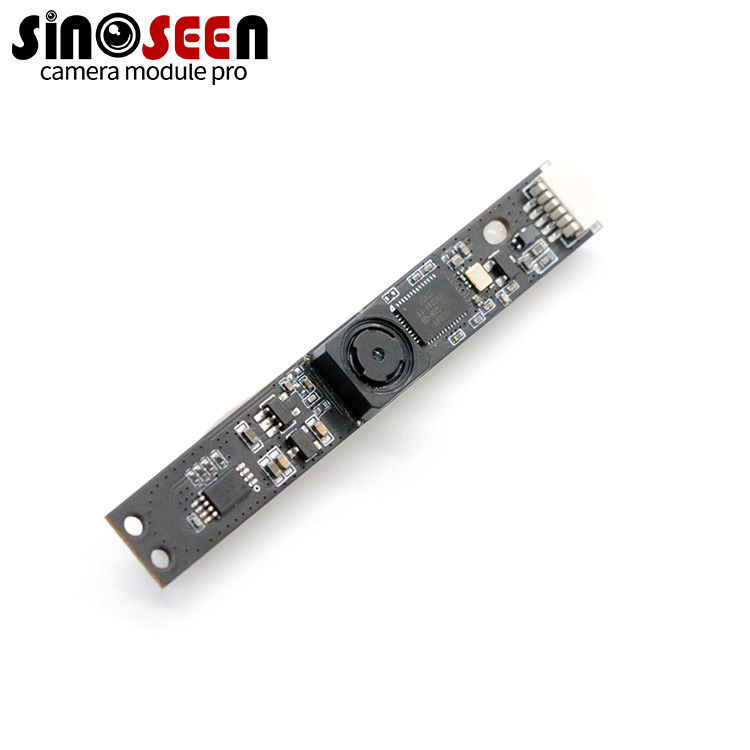

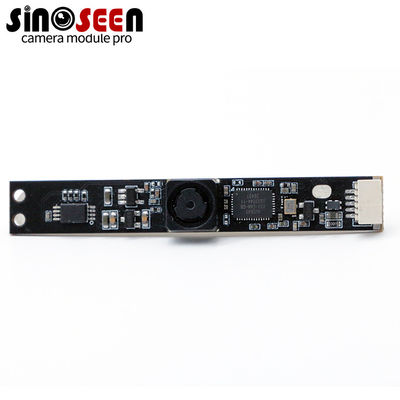

1080P 24 Pin 5MP HD USB Camera Module With OV5640 Sensor

1080P 24 Pin 5MP HD USB Camera Module With OV5640 Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-5MP-OV5640-1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 5mp Camera Module Sensor: 1/4"ov5640
Resolution: HD 2592(H)X1944(V) Dimensions: (customizable)
Lens FOV: 60°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: HD
High Light:

OV5640 Sensor USB Camera Module

,

5MP HD USB Camera Module

,

24 Pin 5MP Camera Module

Product Description

OV5640 sensor 1080p 24pin HD usb camera moudle

1080p 24pin HD Usb Camera Module 5mp With OV5640 Sensor



5MP HD USB Camera Module

This is the hottest 5MP camera module we sell. It uses the OV5640 sensor from Omnivision.The OV5640 has an image array that can work at a speed of 15 frames per second, with a resolution of 5 million pixels, to complete the user's control of image quality, formatting and output data transmission. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control, defective pixel cancellation, noise cancellation, etc. are programmable through the SCCB interface or embedded microcontroller.
The OV5640 also includes a compression engine to increase processing power. In addition, the OmniVision image sensor uses a proprietary sensor to improve image quality by reducing or eliminating common lighting/power sources to improve image quality technical pollution, such as fixed pattern noise, smearing.

If you need, we can also customize your camera module according to your needs.



Specification
Model No SNS-5MP-OV5640-1
Sensor 1/4’’ Omnivision OV5640 CMOS
Pixel 5 Mega Pixel
Most effective pixels 2592 (H) x 1944 (V)
Pixel Size 1.4µm x 1.4µm
Image area 3673.6μm x 2738.4μm
Compression format YUYV/MJPEG
Resolution & Frame rate See above
Shutter Type Electronic rolling shutter
Focus type Fixed focus
Object distance 5CM-infinity
S/N ratio 36dB
Dynamic range 68dB
Sensitivity 600mV / lux-sec
Interface type USB2.0 high speed
Adjustable parameter Brightness/Contrast/Color saturation/Hue
Definition/White balance/Exposure
Lens FOV 80°
Power supply USB BUS POWER
Power consumption DC 5V, 150mA
Main chip DSP/SENSOR/FLASH
Auto Exposure Control Support
Auto White Balance Support
Auto Gain Control Support
Dimension 55MM x 10MM for PCB
Storage temperature -20°C to 70°C
Operating temperature 0°C to 60°C
USB cable length Default 0.5M
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

1080P 24 Pin 5MP HD USB Camera Module With OV5640 Sensor 01080P 24 Pin 5MP HD USB Camera Module With OV5640 Sensor 11080P 24 Pin 5MP HD USB Camera Module With OV5640 Sensor 2



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current available USB solution



0.3MP

Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

Global shutter:OV7251 (1/7.5”,B/W)

High frame rate:200FPS SC031GS(1/6”,B/W)

Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)



1MP

Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

Small size for endoscope:OV9734 GC1009 HM1091

Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)



2MP

Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

1080P-WDR (30FPS): AR0230 AR0331(300W)

1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

1080P big size: IMX385

1080P global shutter: OG02B10(color) OG02B1B(B/W)



5MP

500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)



8MP

800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)



13MP-16MP

IMX214(13M) IMX258(13M) IMMX298(16M)



USB3.0

IMX335 OV5648 IMX179 IMX307 PS5268



H264

GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
