Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-ov9734-A7

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 5MP Camera Module Sensor: 1/9" Omnivision OV9734
Resolution: 5mp 1280(H) X 720(V) Dimensions: (customizable)
Lens FOV: 60°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: HD
High Light:

Micro Macro USB Camera Module

,

Medical Endoscope USB Camera Module

,

OV9734 720P HD Camera Module

Product Description

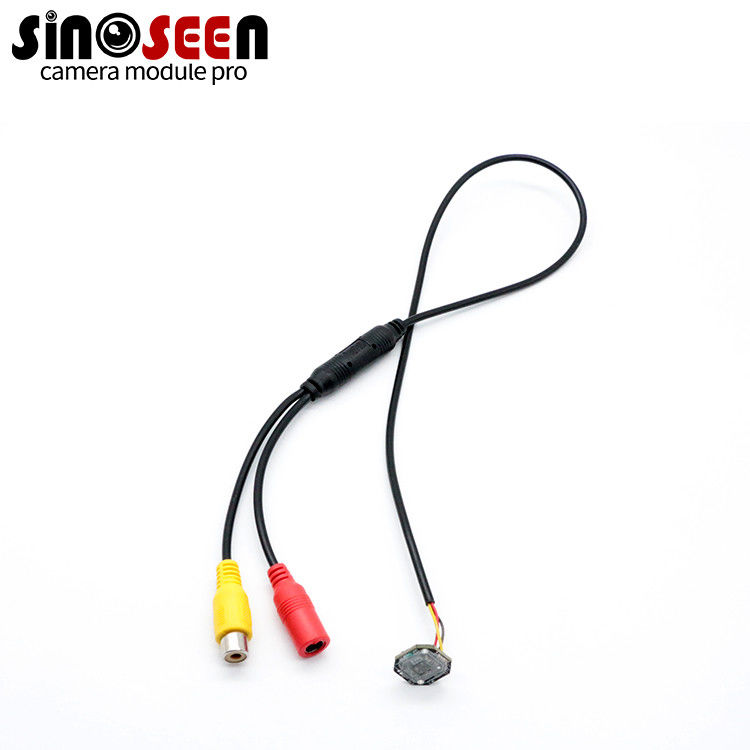

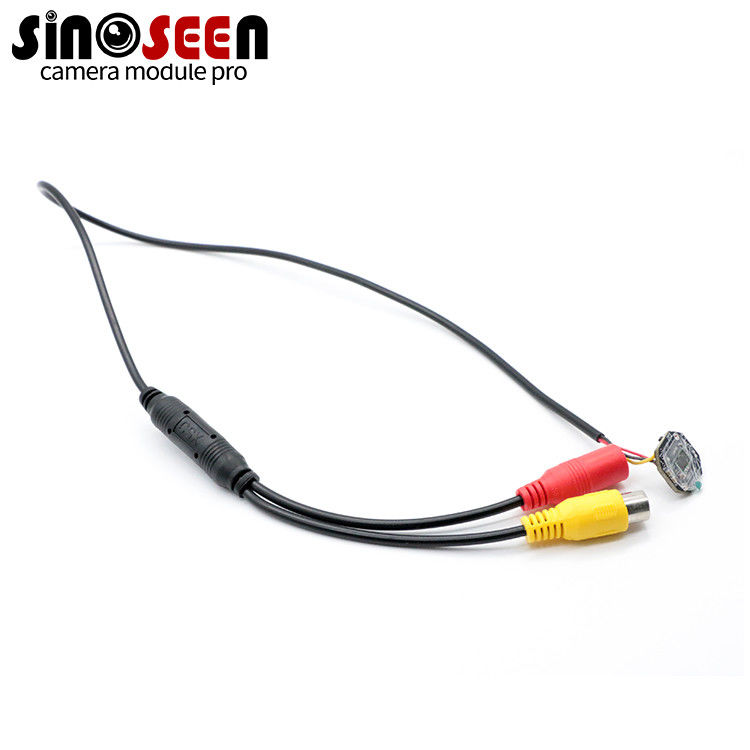

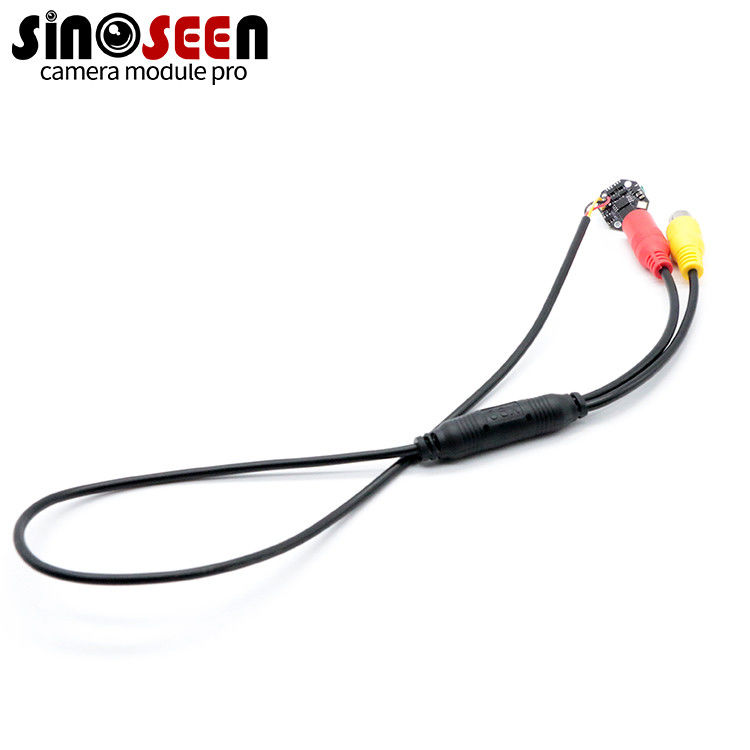

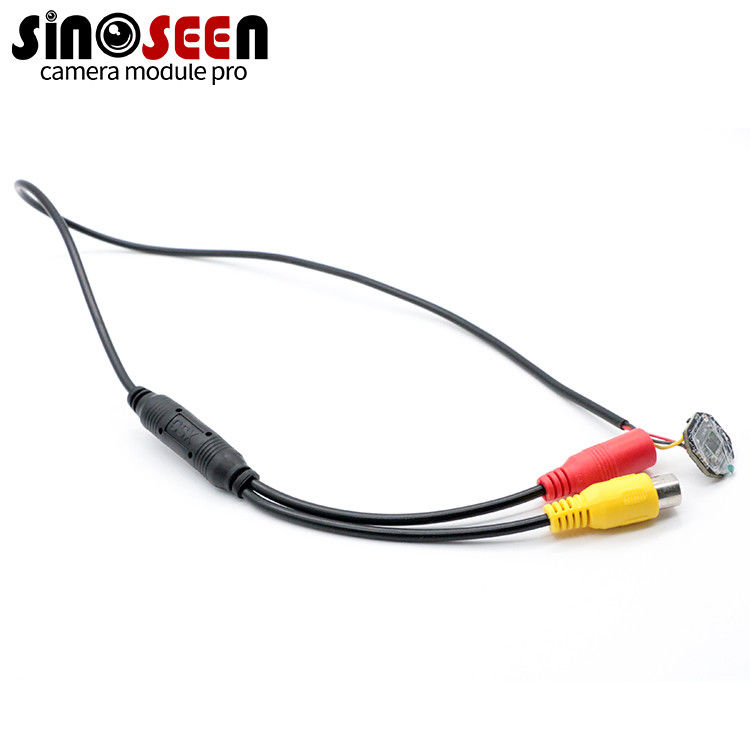

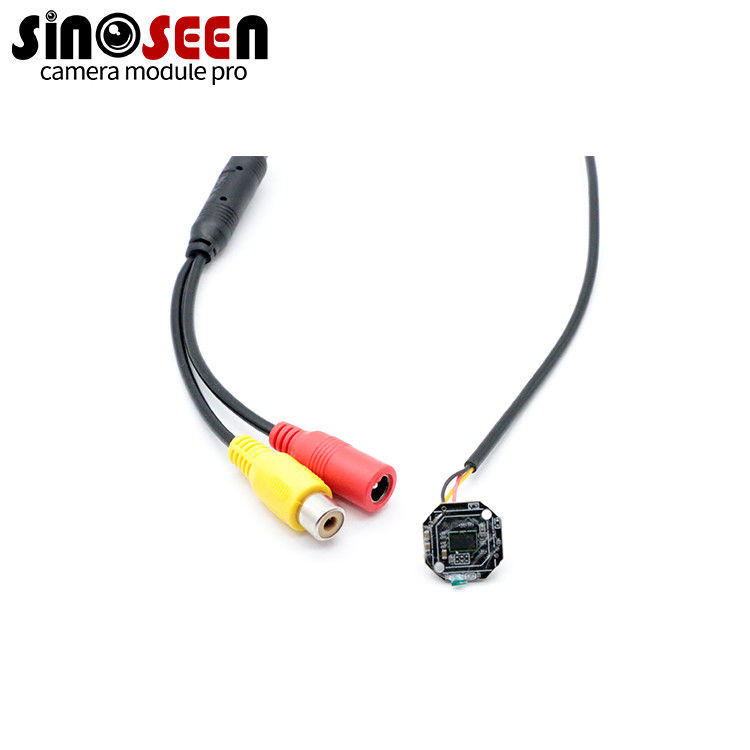

OV9734 Sensor Free Driver 720P HD Medical Endoscopy Micro Macro USB Camera Module​

Free Driver 720P HD Medical Endoscopy Micro Macro USB Camera Module with OV9734 Sensor


USB Camera Module
This is our newly developed product, using AV technology, using the OV9734 sensor. The interface of this product is different from other products, and it is special. If you need it, we can customize it for you according to your needs.

The ov9743 sensor has an image array that can run at 720p resolution at 30 frames per second (fps) and VGA resolution at 45fps. The user has full control over image quality, formatting and output data transmission. Some image processing functions such as exposure control and defective pixel cancellation can be programmed through the SCCB interface. In addition, the full-vision image sensor uses proprietary sensor technology to improve image quality by reducing or eliminating image pollution, such as fixed pattern noise, smearing, etc., to produce clean, completely stable color images.



Specification

Module No

SNS-1MP-OV9734-E2

Pixel Size

1.4μm x 1.4μm

Effective Pixels

1MP 1280(H) x 720(V)

Video output

Raw Bayer10bit/8bit

Active Array Size Video Rate

30FPS

Image Sensor

1/9"

Sensor Type

Omnivision OV9734

Lens view

FOV60°(optional),F/N(optional)

TV Distortion

<1%

AEC

Support

AEB

Support

AGC

Support

Operating voltage

AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V

Operating temperature

-20~70℃

Storage temperature

0~50℃

Dimensions

Customizable







Free Driver 720P HD Medical Endoscopy Micro Macro USB Camera Module with OV9734 Sensor 0Free Driver 720P HD Medical Endoscopy Micro Macro USB Camera Module with OV9734 Sensor 1Free Driver 720P HD Medical Endoscopy Micro Macro USB Camera Module with OV9734 Sensor 2



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current available USB solution



0.3MP

Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

Global shutter:OV7251 (1/7.5”,B/W)

High frame rate:200FPS SC031GS(1/6”,B/W)

Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)



1MP

Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

Small size for endoscope:OV9734 GC1009 HM1091

Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)



2MP

Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

1080P-WDR (30FPS): AR0230 AR0331(300W)

1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

1080P big size: IMX385

1080P global shutter: OG02B10(color) OG02B1B(B/W)



5MP

500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)



8MP

800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)



13MP-16MP

IMX214(13M) IMX258(13M) IMMX298(16M)



USB3.0

IMX335 OV5648 IMX179 IMX307 PS5268



H264

GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
