2MP FHD 1080P HDR USB 3.0 Camera Module With PS5268 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-PS5268-A78 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2mp Camera Module | Sensor: | 1/2.7 PS5268 |
|---|---|---|---|
| Resolution: | 2MP 1928(H) X 1088(V) | Dimensions: | (customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB3.0 | Feature: | Full-HD |
| High Light: | HDR USB 3.0 Camera Module,2MP USB 3.0 Camera Module,PS5268 Sensor 2MP Camera Module |
||
Product Description
usb3.0 camera module Full-HD 1080P HDR with PS5268 sensor
2MP Full-HD 1080P HDR usb3.0 camera module with PS5268 sensor
HDR USB 3.0 Camera Module

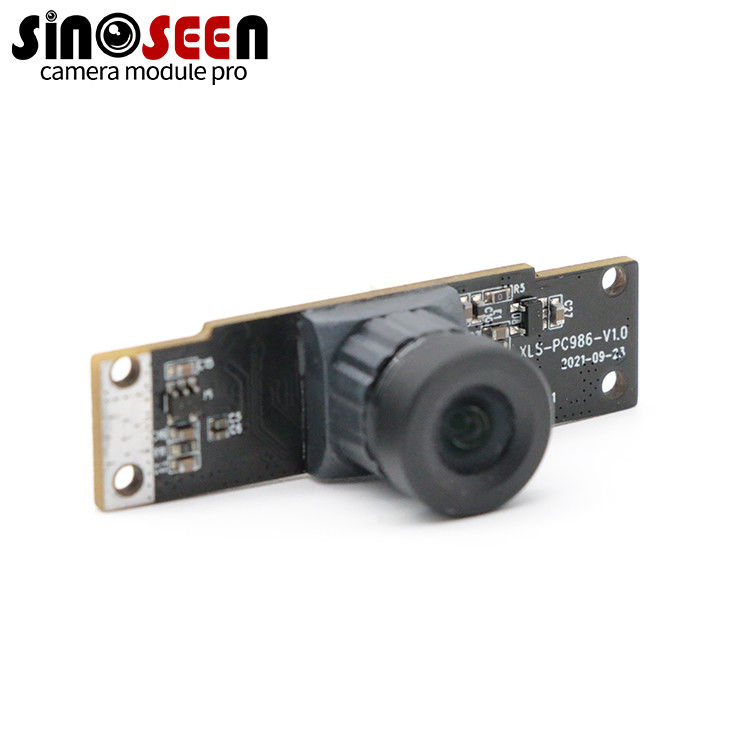

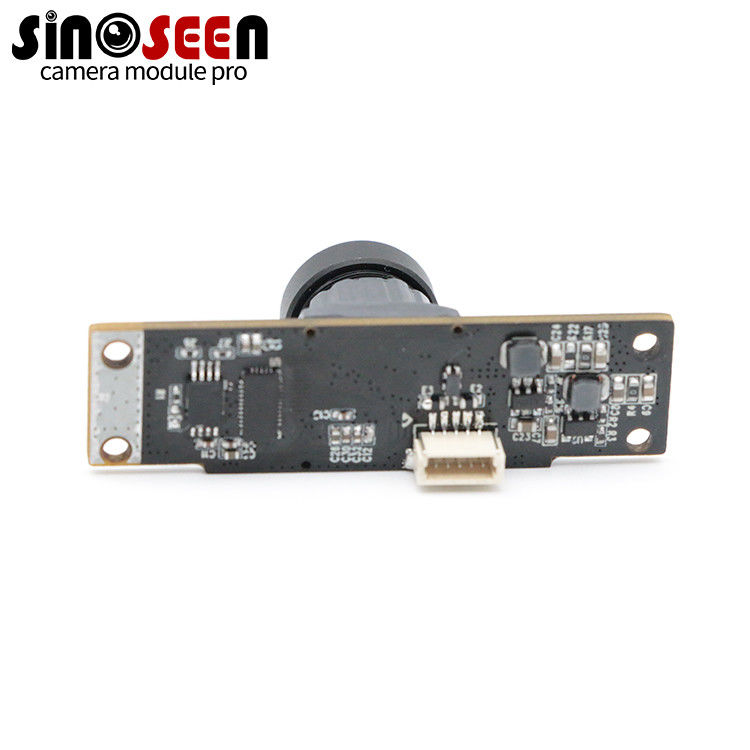

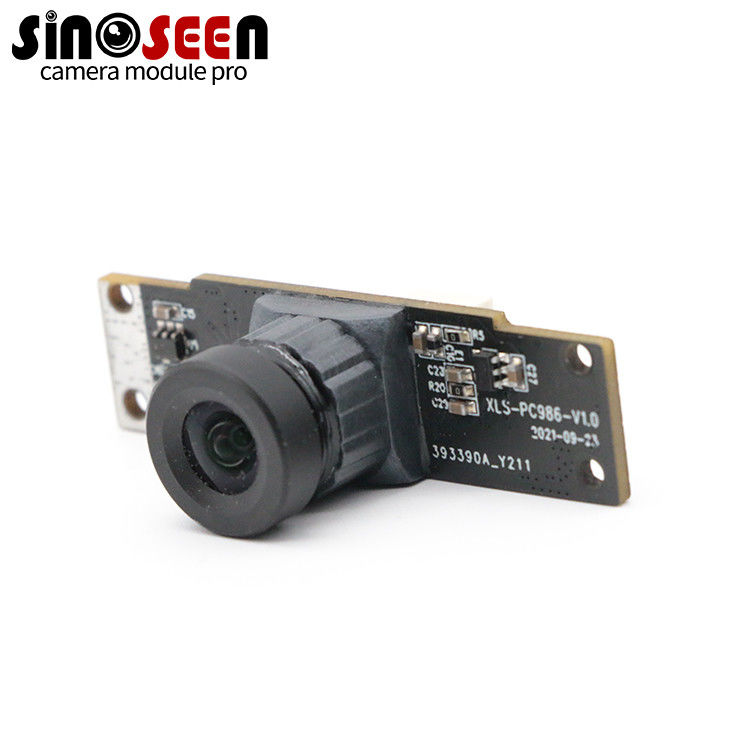

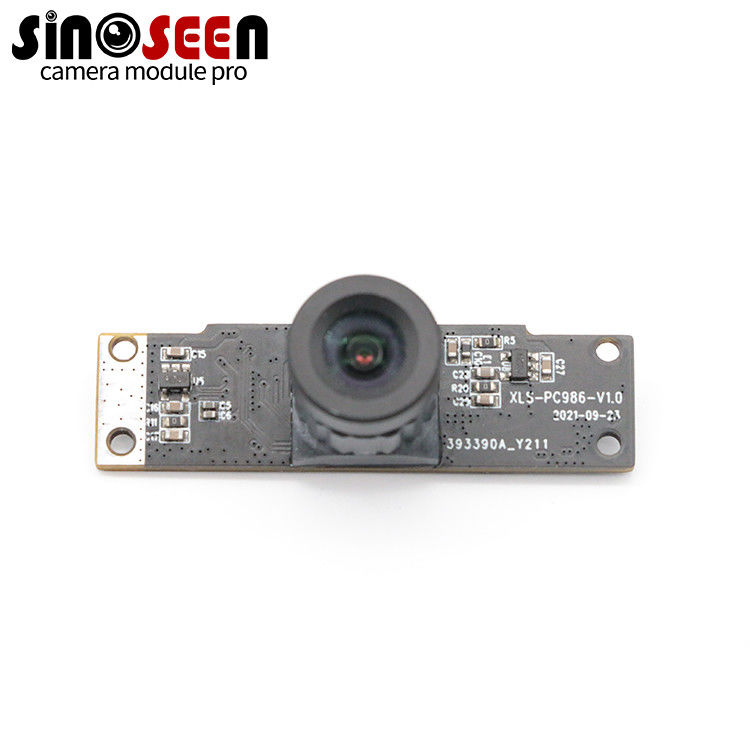

This is our newly developed USB camera module with PS5268 sensor.The sensor has a size of 1/2.7 and a maximum resolution of 1928*1088. It has the characteristics of high dynamics and full HD, which is very rare.This USB camera module can be widely used in face recognition, surveillance high-definition CCTV cameras, surveillance network cameras, car video recorders, video access control phones and other fields.If you need to customize your own module, we can customize all parameters such as size, lens angle, etc. according to your requirements.
| Model No | SNS-2MP-PS5268-A78 |
| SENSOR | PS5268 |
| Active array size | 1928(H) x 1088(V) |
| Pixel size | 3.0um (H) x 3.0um (V) |
| Shutter type | Electronic rolling shutter (ERS) |
| Optical format | 1/2.7-inch |
| Lens chief ray angle | 17 degree |
| ADC | 10-bit |
| Sensitivity | 5800 mV/Lux-sec |
| SNRmax | 41 dB |
| Dynamic range | 85 dB |
| Scan mode | Progressive scan |
| Input clock | Max 50MHz |
| Pixel clock | Max 148.5MHz |
| Max. frame rate |
1080p: 1920x1080 Linear@ 60fps 1080p: 1920x1080 HDR+LTM @30fps |
| Supply voltage |
Analog: 3.3 V Digital: 1.2 V I/O: 1.8V / 3.3V |
| Power consumption |
75mW@1080p30 (MIPI) 54.5mW@1080p30 (DVP w/o I/O) 124mW@HDR-LTM1080p30 (MIPI) 107mW@HDR-LTM 1080p30 (DVP w/o I/O) |
| Operating temperature | -30°C ~ 85°C |
