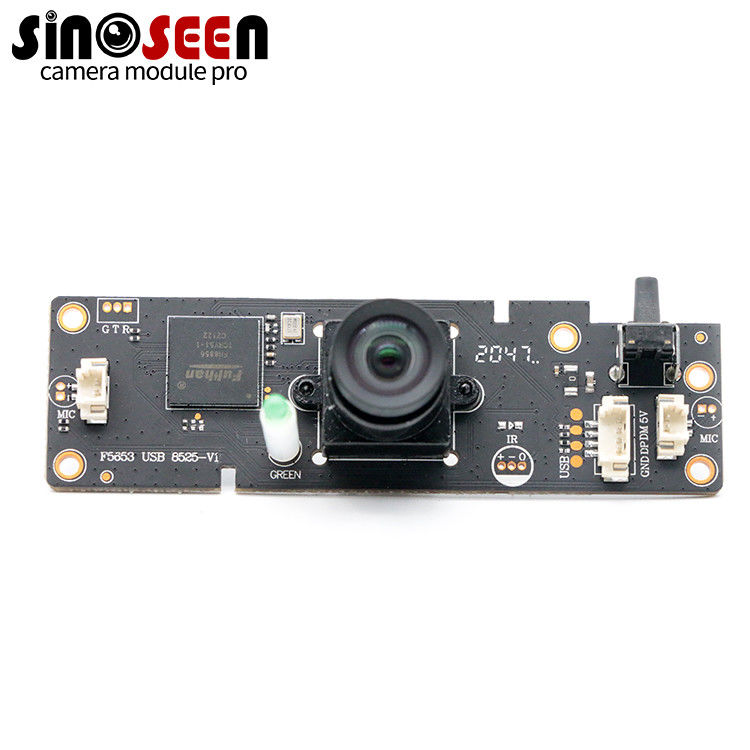

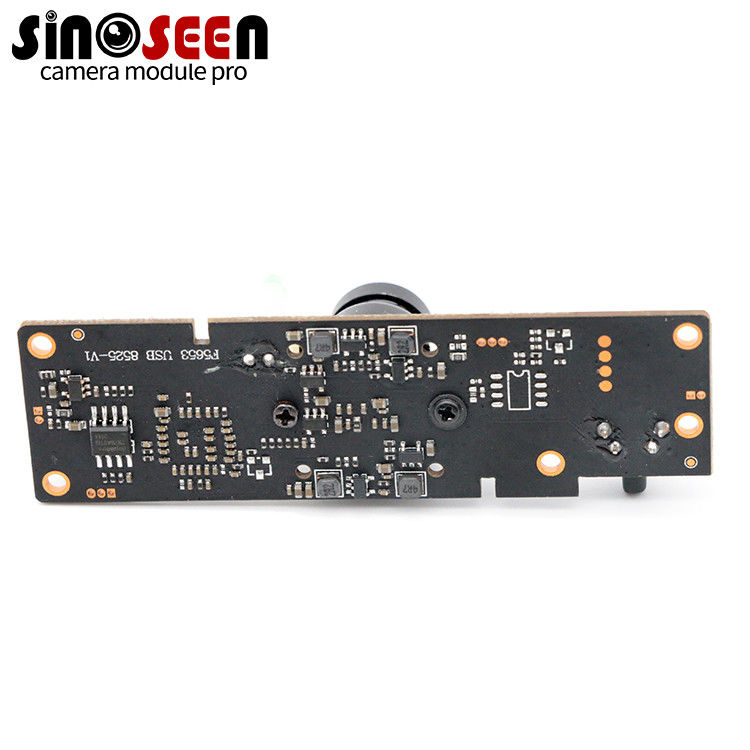

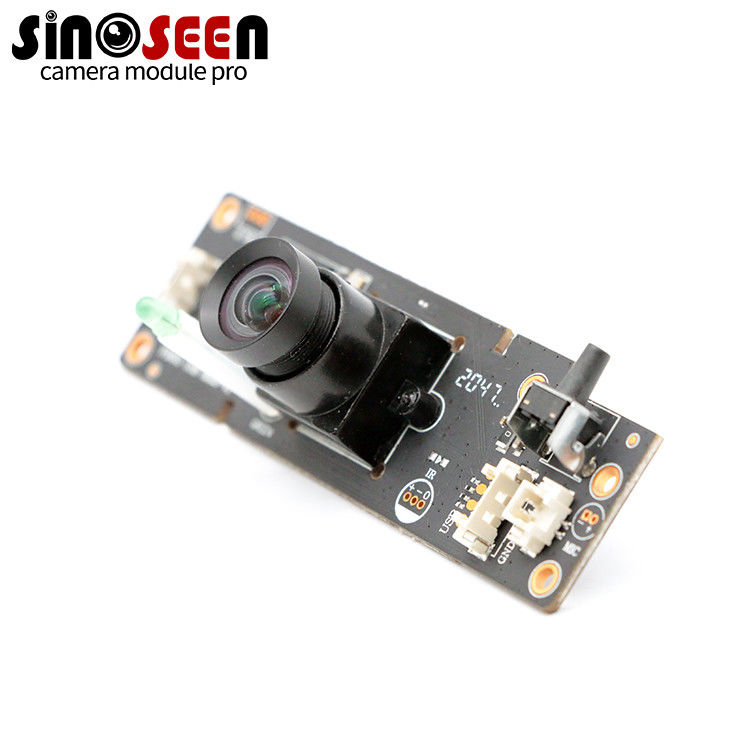

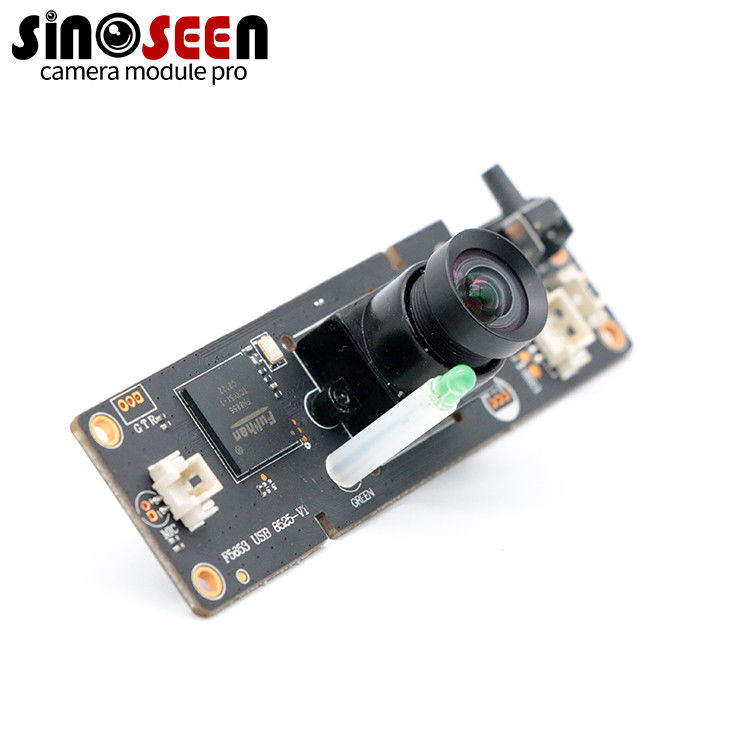

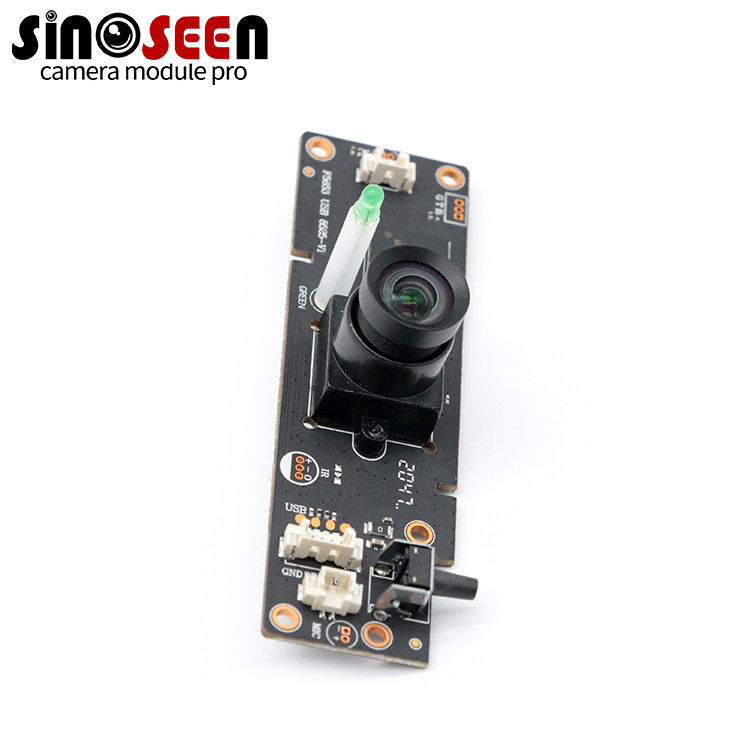

SONY IMX317 30FPS 4K 8MP USB Camera Module Support Optical Zoom
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-OV-INX317-TY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 8mp Camera Module | Sensor: | 1/2.5'' SONY IMX317 CMOS |
|---|---|---|---|
| Resolution: | 8MP 3840(H) X 2160(V) | Dimensions: | (customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | 4K |
| High Light: | SONY IMX317 USB Camera Module,30FPS 4K USB Camera Module,Optical Zoom 8MP Camera Module |
||
Product Description
HD 8mp Usb Camera Module Support Optical Zoom 30fps 4k With SONY IMX317
OEW HD 8mp Usb Camera Module 4k Support Optical Zoom 30fps With SONY IMX317
4K 8MP USB Camera Module
Features
1, With high-definition and high-dynamic functions, can have a good quality output
2, 4K pixels
3, The maximum resolution is 3840 (H) × 2160 (V)
4, Support optical zoom
5, Support operating system WinXP/Vista/Win7/Win8/Win10 Linux with UVC (linux-2.6.26 and above MAC-OS X 10.4.8 or later Android 4.0 or later with UVC
6, Used in high-definition photography, video surveillance, video conference all-in-one, video teaching, Internet of Things, aerial drones, QR code recognition and other fields
|
Model No |
SNS-OV-INX317-TY |
|
Sensor |
1/2.5’’ SONY IMX317 CMOS |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3840(H) x 2160(V) |
|
Pixel Size |
1.62µm x 1.62µm |
|
Image area |
3864um (H) x 2196um (V) |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Chroma |
Color, RGB |
|
Clock Frequency |
6 to 72 MHz |
|
Microphones |
Built-in |
|
Interface type |
Micro USB |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
|
Lens |
Focal length: 3.6mm |
|
Lens construction: 5E+IR |
|
|
D FOV: 100 degree |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Operating Voltage |
DC 5V |
|
Operating Current |
260mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
