Flexible Ribbon Board MIPI Interface HD Camera Module 1MP Fixed Focus
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-1MP-H62-M1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | 1/4" SOI JX-H62 |
|---|---|---|---|
| Resolution: | 1MP (1280*720) | Dimensions: | Customizable |
| Lens FOV: | 78°(optional) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | HD |
| High Light: | 1MP Fixed Focus HD Camera Module,Flexible Ribbon Board HD Camera Module,MIPI Interface 1MP Camera Module |
||
Product Description

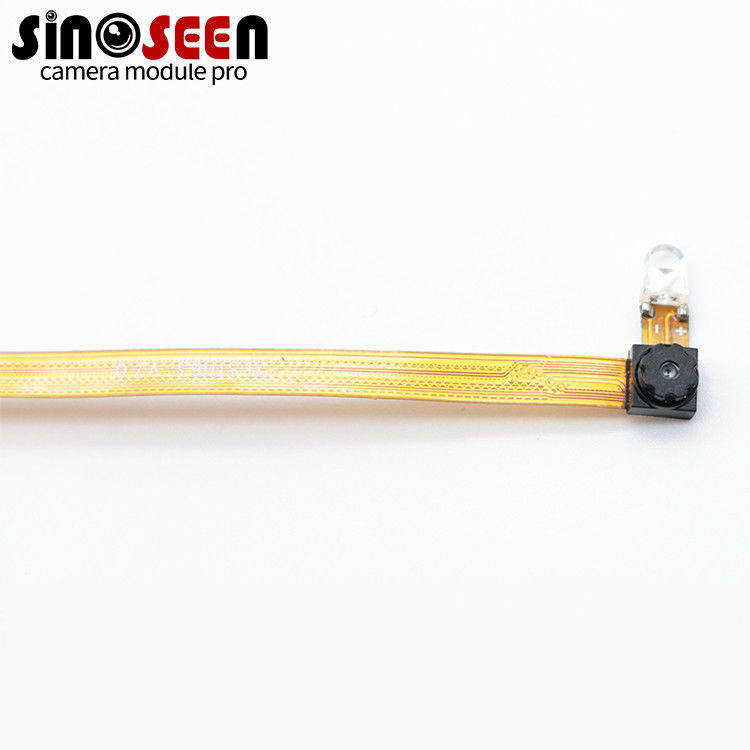

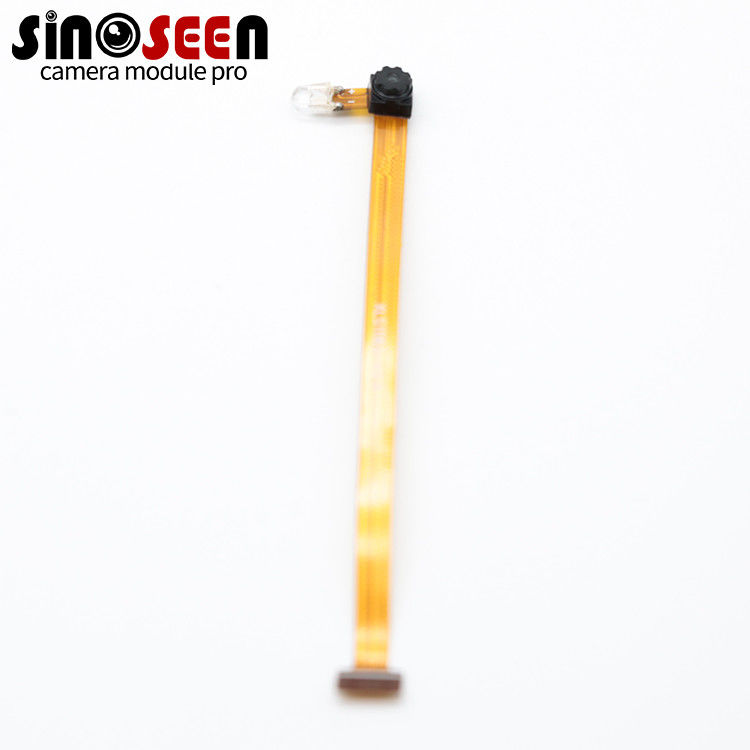

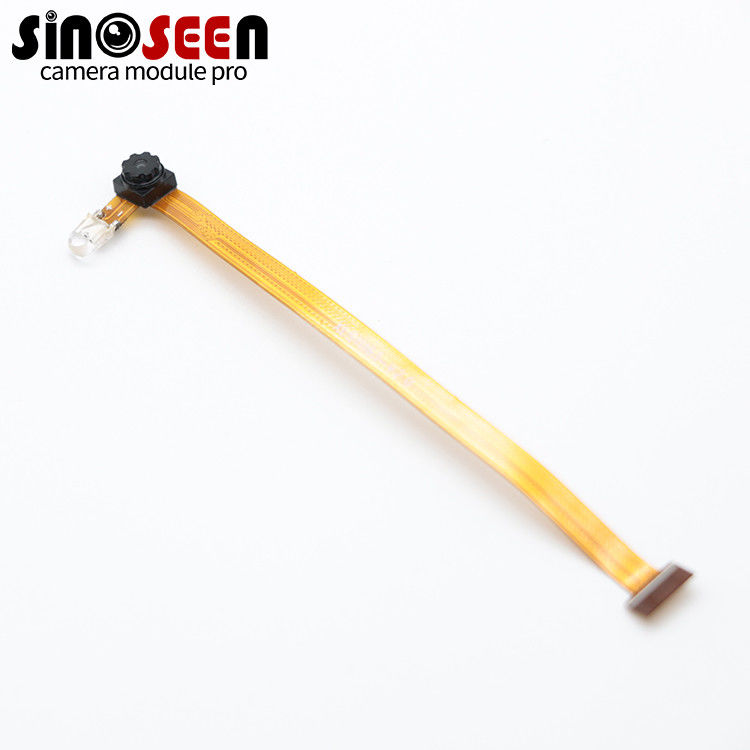

Flexible Ribbon Board 1MP Camera Module MIPI Interface Fixed Focus
Flexible Ribbon Board MIPI Interface 1MP Fixed Focus HD Camera Module
Camera Module MIPI
This is a camera module capable of capturing images with a resolution of 1 million pixels. The camera module adopts a fixed-focus lens design, that is, the focal length is set at a specific distance and cannot be adjusted.
The camera module uses a flexible strip plate, which makes the camera module more flexible in design and integration into various devices. rice. The PI (Mobile Industry Processor Interface) interface is a digital interface that allows high-speed data transmission between the camera module and the host device. MIPI interfaces are commonly used in camera modules in mobile devices such as smartphones, tablets, and other portable devices.
The camera module is capable of capturing high-definition (HD) images with a resolution of at least 720p (1280x720 pixels). High-definition images provide greater clarity and detail than standard-definition images, making them ideal for applications that require high-quality images.
Specification
|
Model No |
SNS-1MP-H62-M1 |
|
Sensor |
1/4’’ SOI JX-H2 |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280(H) x 720(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Min illumination |
0.05 LUX |
|
Compression format |
MJPG / YUY2 |
|
Resolution & Frame rate |
30FPS |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
TBDmV / lux-sec |
|
Interface type |
MIPI |
|
Lens FOV |
78° |
|
Dimension |
Customizable |
|
Storage temperature |
-30°C to 85°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
