New Style HD 2MP Usb Camera Module HDR 1080p With OV2735 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-OV2735 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2MP Camera Module | Sensor: | 1/2.7'' Omnivision OV2735 CMOS |
|---|---|---|---|
| Resolution: | 1920(H) X 1080(V) | Dimensions: | (customizable) |
| Lens FOV: | 95°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | HDR |
| High Light: | HD 2MP Usb Camera Module,HDR 1080p OV2735 Camera Module,Usb Camera Module 1080p |
||
Product Description

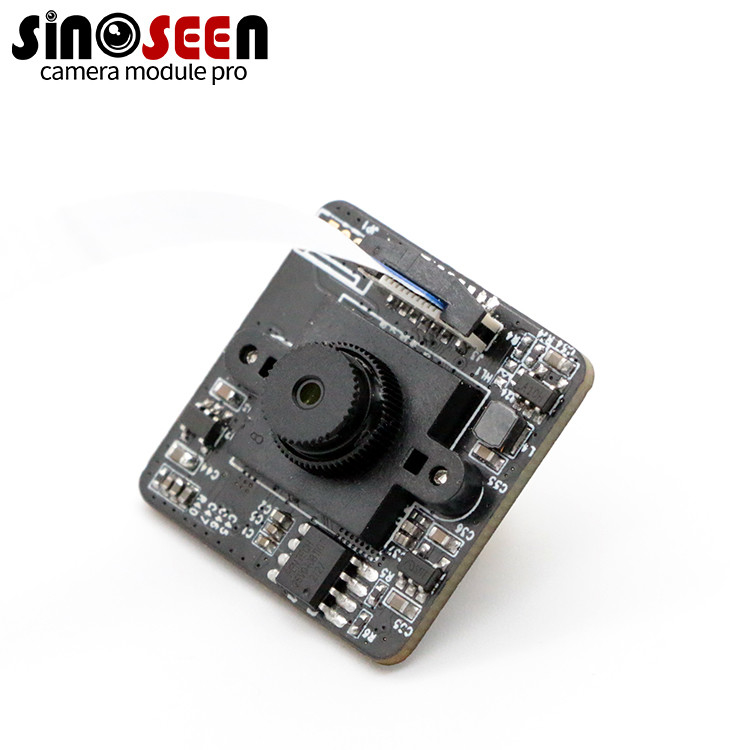

HDR 1080p HD 2MP Usb Camera Module With OV2735 Sensor
New Style HD 2MP Usb Camera Module HDR 1080p With OV2735 Sensor
2mp camera module
This is a new HD 2MP USB camera module with HDR and OV2735 sensor, which provides HD video capture and HDR (High Dynamic Range) capable camera module. The camera module has a resolution of 2 megapixels and is capable of capturing video at 1080p resolution at a frame rate of 30 frames per second.
The OV2735 sensor used in the camera module is a commonly used sensor in many camera applications and provides good image quality in various lighting conditions. The addition of the HDR feature enables the camera to capture images with a wider range of brightness and contrast, resulting in more detail and better image quality.
The camera module can be used in a variety of applications such as video conferencing, security and surveillance, and industrial automation. The HDR capability makes it ideal for applications where lighting conditions are challenging and the ability to capture detail in both bright and dark areas is important.
A USB interface makes it easy to integrate the camera module into existing systems, and the module's compact size allows it to be easily installed in a variety of applications. Overall, the new HD 2MP USB camera module with HDR and OV2735 sensor is a versatile camera module that could be a good choice for a range of applications requiring high-quality video capture.
|
Model No |
SNS-2MP-OV2735 |
|
Sensor |
1/2.7’’ Omnivision OV2735 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image Area |
5808µm x 3288µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
IR Cut filter: 850nm |
|
|
FOV: 95° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38x38MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 55°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
