Fixed Focus 2MP USB Camera Module GC2053 Sensor 1080p HDR
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1025-V1.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2MP Camera Module | Sensor: | 1/2.9’GC2053 CMOS |
|---|---|---|---|
| Resolution: | 1920(H) X 1080(V) | Dimensions: | (customizable) |
| Pixel Size: | 2.8um X2.8um | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | HDR |
| High Light: | 1080p HDR USB Camera Module,Fixed Focus 2MP Camera Module,GC2053 Sensor 2MP Camera Module |
||
Product Description

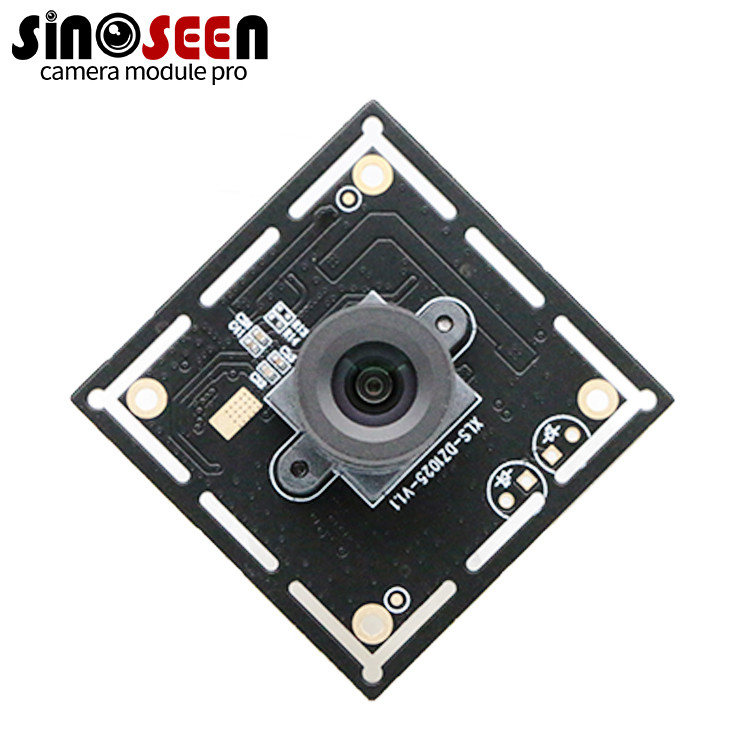

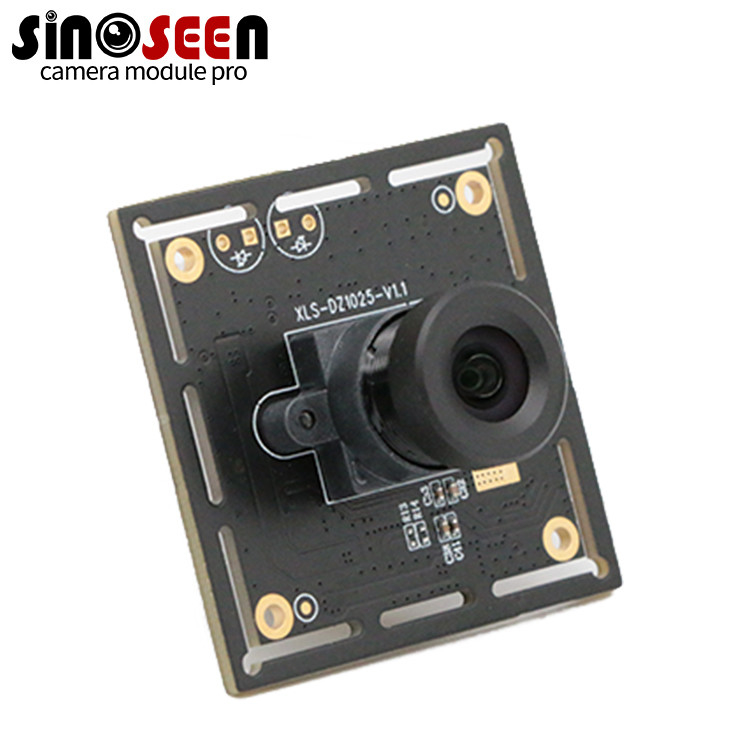

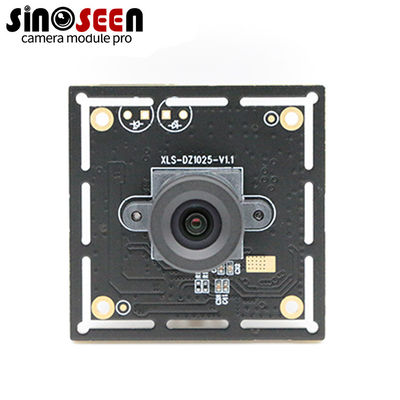

Fixed Focus 2mp USB Camera Module GC2053 Sensor 1080p HDR
1080p hdr usb camera module
This camera module uses the GC2053 sensor, which is a 2-megapixel sensor. It captures images at a resolution of 1920 x 1080 pixels (1080p) and supports high dynamic range (HDR) imaging. HDR achieves better image quality by capturing a wider range of light and dark details in a scene. The camera module has a fixed focus lens, which means it does not have the ability to adjust focus manually or automatically. A lens is set to a specific focal length and objects within that distance will be in focus. This is suitable for applications where the distance to the subject is relatively constant. This camera module can be used in a variety of applications. Some common applications include video conferencing, video surveillance, document scanning, barcode scanning, robotics and machine vision systems.
| Model No | SNS-DZ1025-V1.1 |
| Sensor | 1/2.9’GC2053 CMOS |
| Pixel | 2 Mega Pixel |
| Most effective pixels | 1920(H) x 1080(V) |
| Pixel Size |
2.8um x2.8um
|
| Image Area | 5808µm x 3288µm |
| Compression format | YUV2 / MJPG |
| Resolution | See above |
| Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | TBDdB |
| Dynamic range | TBDdB |
| Sensitivity | 3700 mV/lux-sec |
| Interface type | USB2.0 |
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure |
|
Power supply requirement
|
AVDD28: 2.7~3.3V(Typ.2.8V)
|
|
DVDD18: 1.15~1.3V(Typ.1.2V)
|
|
|
IOVDD: 1.7~3.0V(Typ.1.8V)
|
|
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 200mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Storage temperature |
0~60℃
|
| Operating temperature |
-20~80℃
|
| USB cable length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
