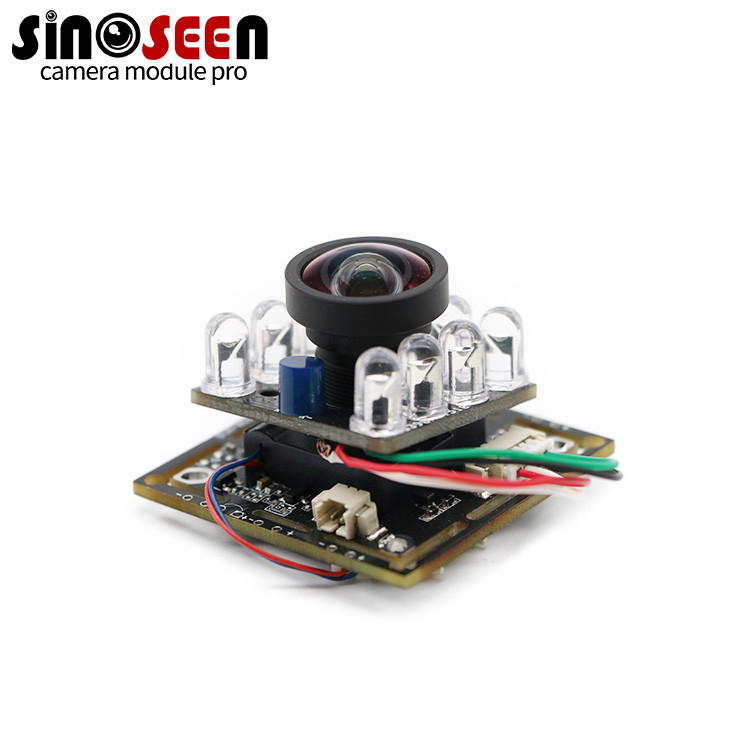

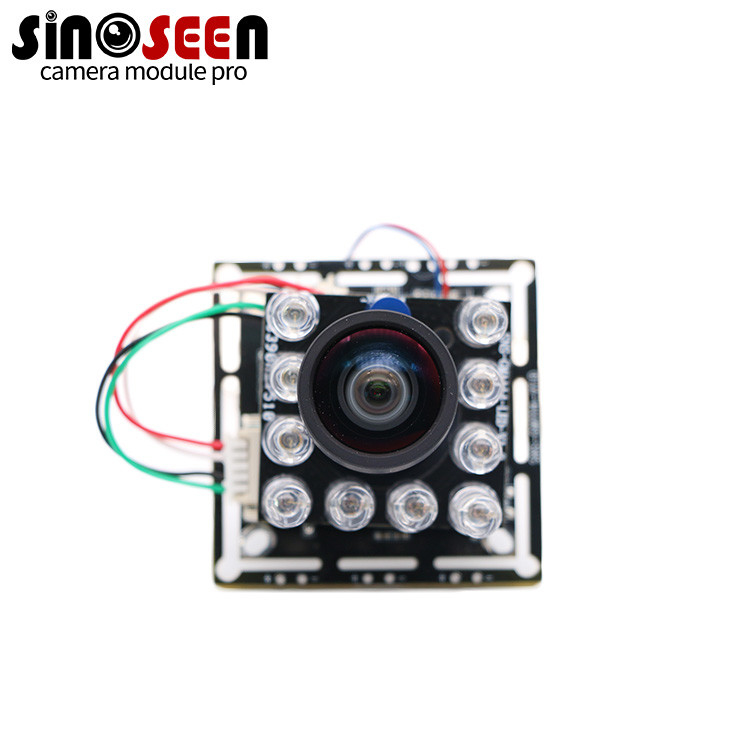

1080P High Dynamic USB2.0 2MP Camera Module Fixed Focus Wide Angle 140 Degree
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM1114-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.7" Omnivision OV2735 |
|---|---|---|---|
| Resolution: | 2MP 1920(H)X1080(V) | Dimensions: | 38x38mm (customizable) |
| Lens FOV: | 140°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Wide Angle |
| High Light: | USB2.0 2MP Camera Module,1080P 2MP Camera Module,High Dynamic USB Camera Module |
||
Product Description
2MP 1080P High Dynamic USB Interface Camera Module Automatically Switches To Black And White Mode In Dark Environm
2MP Camera Module
This camera module has a resolution of 2 megapixels (2MP), which means it can capture images with a maximum resolution of 1920 x 1080 pixels (1080P). This resolution provides good image quality suitable for many applications. The camera module is equipped with high dynamic range technology, allowing it to capture a wider range of brightness levels in a scene. This helps preserve detail in both bright and dark areas of the image, resulting in improved image quality and better detail visibility. In dark environments with limited light, the camera module automatically switches to black and white mode. This is a common feature called "night vision" or "low light mode." By switching to black and white, the camera module can make more efficient use of available light and capture clearer images in low-light conditions. This camera module is suitable for applications requiring high-resolution imaging, such as video conferencing, computer vision or surveillance systems. High dynamic range technology and the ability to switch to black and white mode in dark environments make it particularly useful in scenes where lighting conditions may change or be challenging.
|
Module No |
SNS-GM1114-V1.0 |
|
Pixel Size |
3.0μm x 3.0μm |
|
Effective Pixels |
1920(H)X1080(V) |
|
Video output |
YUV2 MJPG |
|
Active Array Size Video Rate |
1080p@30FPS,720P@60FPS |
|
Image Sensor |
1/2.7" OV2735 |
|
SNR max |
TBDdB |
|
Dynamic range |
TBDdB |
|
OTG |
USB2.0 OTG |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
|
Lens view |
FOV140°(optional),F/N(optional) |
|
Interface |
USB BUS POWER 5P-1.25mm |
|
Operating Voltage |
DC5V |
|
Operating Current |
MAX120MMA |
|
Operating temperature |
0～60℃ |
|
Storage temperature |
-20～70℃ |
|
Cable length |
Defualt |
|
OS |
WinXP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available USB solution
0.3MP
Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)
Global shutter:OV7251 (1/7.5”,B/W)
High frame rate:200FPS SC031GS(1/6”,B/W)
Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)
1MP
Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760
Small size for endoscope:OV9734 GC1009 HM1091
Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)
Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)
2MP
Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)
1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237
1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)
1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
1080P-WDR (30FPS): AR0230 AR0331(300W)
1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
1080P big size: IMX385
1080P global shutter: OG02B10(color) OG02B1B(B/W)
5MP
500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650
FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)
8MP
800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390
8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)
13MP-16MP
IMX214(13M) IMX258(13M) IMMX298(16M)
USB3.0
IMX335 OV5648 IMX179 IMX307 PS5268
H264
GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
