1080P Dual Lens Camera Module With Fill Light 2MP USB Interface
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-SM1118-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2MP Camera Module | Sensor: | 1/3’GC2083 CMOS |
|---|---|---|---|
| Resolution: | H1920*V1080 | Dimensions: | (customizable) |
| Pixel Size: | 2.7um X2.7um | Focus Type: | Fixed Focus |
| Interface: | USB | Feature: | HD |
| High Light: | 1080P Dual Lens Camera Module,2MP Dual Lens Camera Module,1080P Camera Module With Fill Light |
||
Product Description

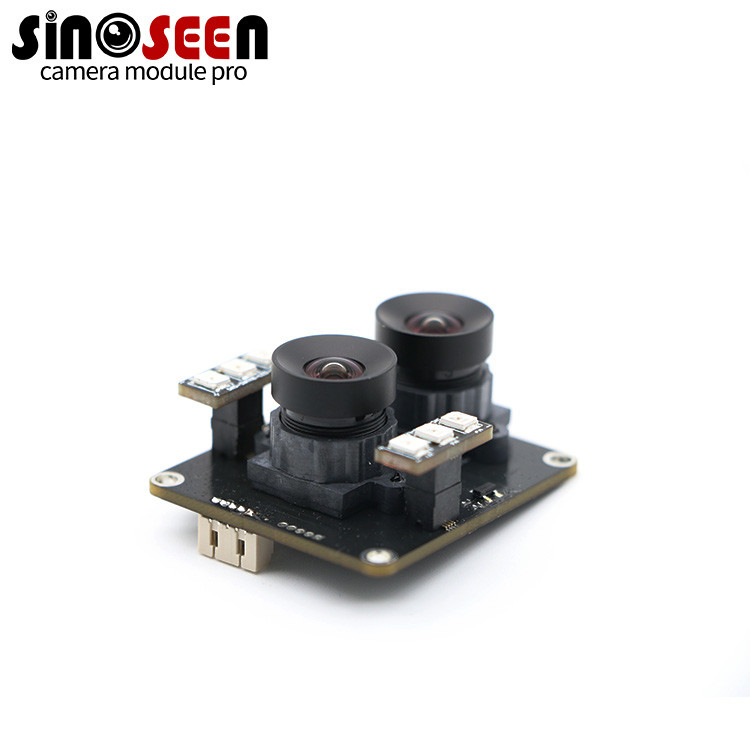

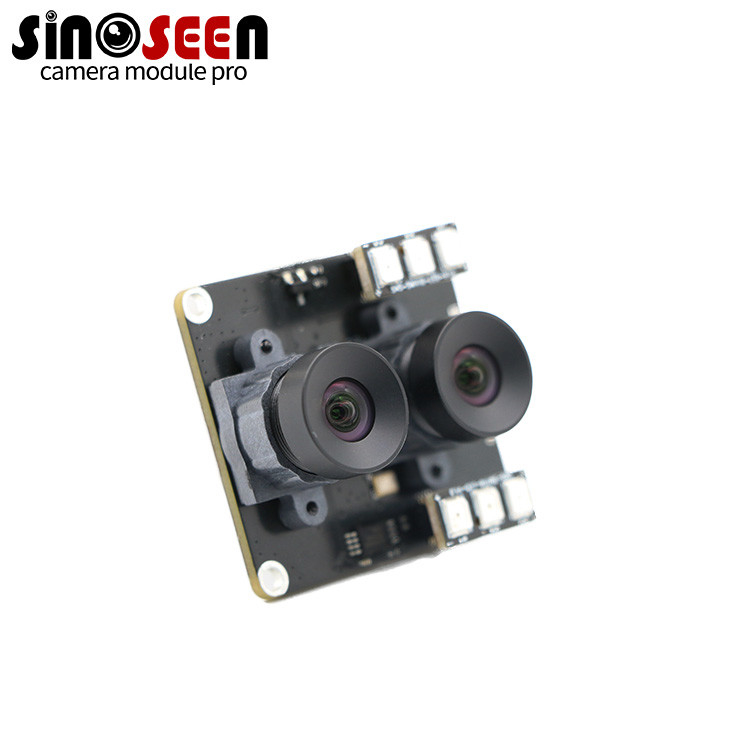

Dual Lens 1080P With Fill Light 2MP USB Interface Camera Module
2MP USB Camera Module
The camera module contains two lenses that capture images from two different angles simultaneously. Dual lenses can enable functions such as depth sensing, wide-angle imaging, or other advanced imaging technologies. By using two lenses, the camera module can provide more diverse imaging capabilities. The camera module is equipped with a fill light. A fill light is a supplemental light source that helps illuminate your subject, especially in low-light conditions or when shadows are present. Fill light ensures your subject is well-lit, improving image quality and visibility. The camera module has a 2MP image sensor that captures images with a resolution of 2 megapixels. While not the highest resolution available, it still provides good image quality for many applications.
|
Model No |
SNS-SM1118-V1.0 |
|
Sensor |
1/3’GC2083 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
H1920*V1080 |
|
Pixel Size |
2.7um x2.7um |
|
Image Area |
5808µm x 3288µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Power supply requirement |
AVDD28: 2.7~3.3V(Typ.2.8V) |
|
DVDD18: 1.15~1.3V(Typ.1.2V) |
|
|
IOVDD: 1.7~3.0V(Typ.1.8V) |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Storage temperature |
0~60℃ |
|
Operating temperature |
-20~80℃ |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
