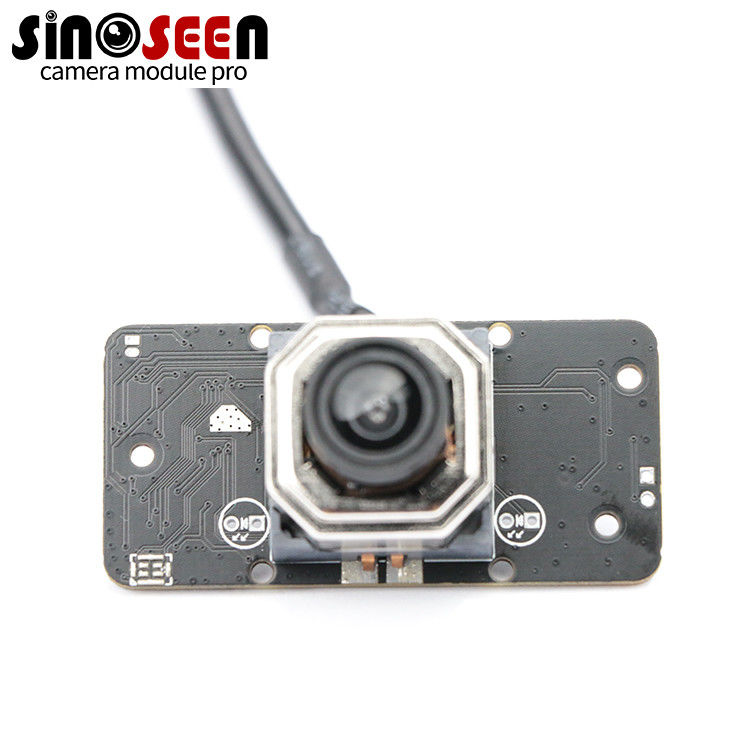

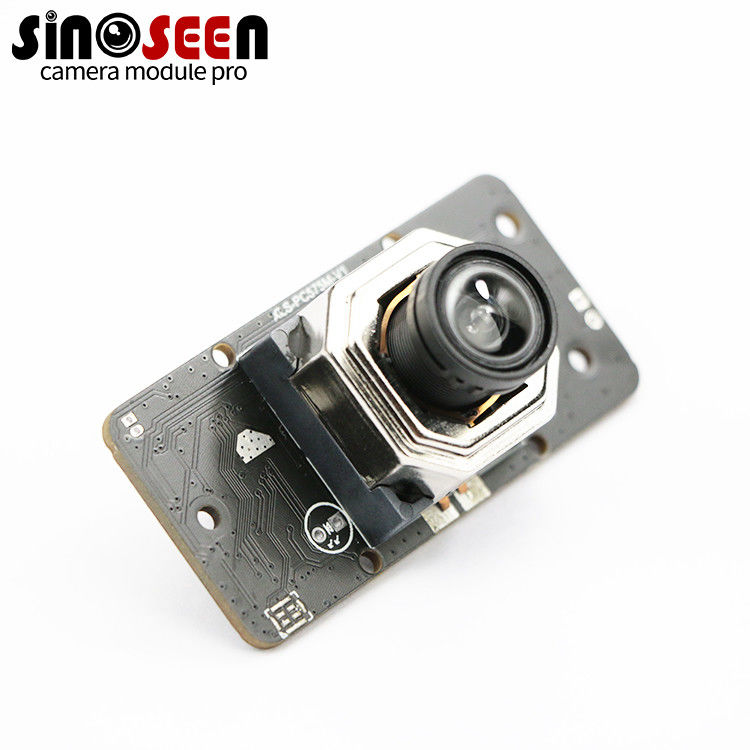

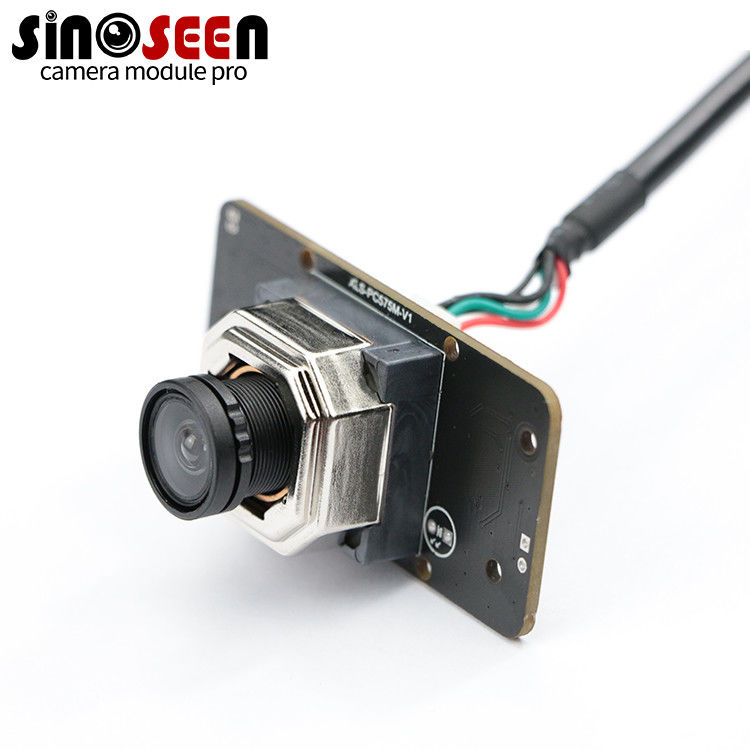

AR0144 Sensor Ultra Low Power Camera Module USB2.0 Interface M12 Lens

AR0144 Sensor Ultra Low Power Camera Module USB2.0 Interface M12 Lens

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-1MP-AR0144-AF12

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/4" ON Semiconductor AR0144
Resolution: 1MP 1280(H) X 800(V) Dimensions: Customizable
Lens FOV: 90°(optional) Focus Type: Auto Focus
Interface: USB2.0 Feature: Global Shutter
Highlight:

AR0144 Low Power Camera Module

,

M12 Lens Low Power Camera Module

,

AR0144 modul camera

Product Description

AR0144 Sensor Ultra Low Power Camera Module USB2.0 Interface M12 Lens

Global Shutter Camera Module With AR0144 Sensor USB2.0 Interface Color Image Auto Focus M12 Lens





This is one of our many excellent global exposure camera modules, which uses the AR0144 chip from ON Semiconductor. The AR0144 chip is available in color and black and white versions. We are currently using the color version of this module.

The AR0144 is a 1/4-inch 1.0 Mp CMOS digital image sensor with an active-pixel array of 1280H x 800V. It incorporates a new innovative global shutter pixel design optimized for accurate and fast capture of moving scenes. The sensor produces clear, low noise images in both low-light and bright scenes. It includes sophisticated camera functions such as auto exposure control, windowing, row skip mode, column-skip mode, pixel-binning and both video and single frame modes.The AR0144 produces extraordinarily clear, sharp digital pictures, and its ability to capture both continuous video and single frames makes it the perfect choice for a wide range of applications, including scanning and industrial inspection.

In this camera module, we use a very large motor to drive the M12 lens for autofocus, so that the camera has a very clear and stable imaging performance.

Specification



Model No

SNS-1MP-AR0144-AF12

Sensor

1/4’’ ON Semiconductor  AR0144

Pixel

1 Mega Pixel

Most effective pixels

1280H x 800V

Pixel Size

3.0µm x 3.0µm

Chroma

COLOR Image

Compression format

MJPG/YUY2

Resolution & Frame rate

See above

Shutter Type

Global shutter

Focus type

Auto focus

S/N ratio

38dB

Dynamic range

63.9dB

Protocol

Plug-&-Play (UVC compliant)

Interface type

USB2.0 high speed

Lens

Lens Size: 1/4 inch

FOV: 90°

Thread Size: M12*P0.5

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, 180mW

Main chip

DSP/SENSOR/FLASH

Dimension

customizable

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/
Definition/Gamma/White balance

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

AR0144 Sensor Ultra Low Power Camera Module USB2.0 Interface M12 Lens 0AR0144 Sensor Ultra Low Power Camera Module USB2.0 Interface M12 Lens 1



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current avaliable global shutter USB camera module





Omnivision                       OV7251        0.3MP         Monochrome(black and white)



Omnivision                       OV9281           1MP         Monochrome(black and white)



ON Semiconductor          AR0144            1MP         Monochrome(black and white) or RGB color



Omnivision                      OG02B1B         2MP         Monochrome(black and white)



Omnivision                      OG02B10          2MP        RGB color
