High Frame Rate Ov9281 Camera Module Black White Image 120FPS

High Frame Rate Ov9281 Camera Module Black White Image 120FPS

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-120FPS-OV9281-S1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/4" Omnivision OV9281 CMOS
Resolution: 1MP 1280(H) X 800(V) Dimensions: 38mmx38mm (compatible With 32mmx32mm)
Lens FOV: 90°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Global Shutter
High Light:

1MP Ov9281 Camera Module

,

120FPS 1MP Camera Module

,

120FPS 1MP spy camera module

Product Description

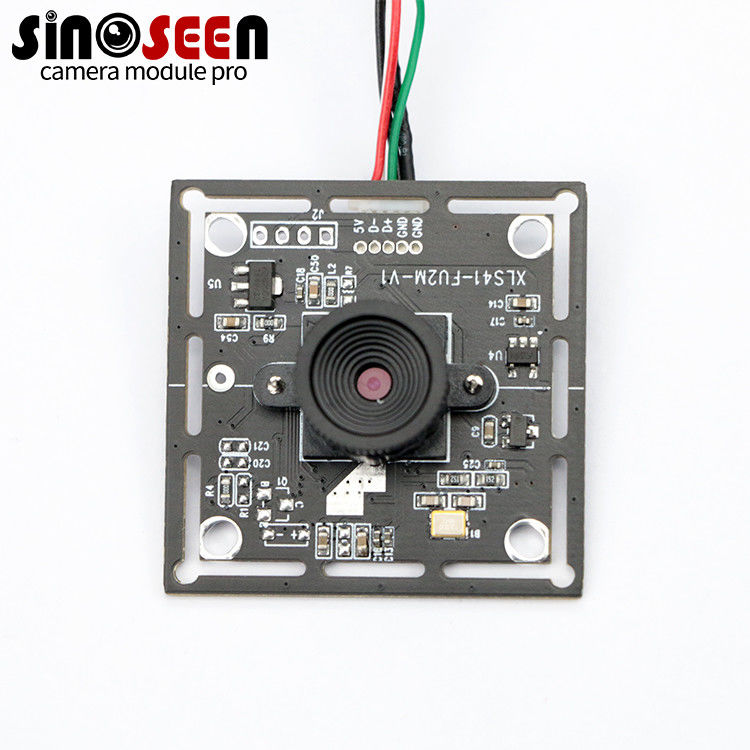

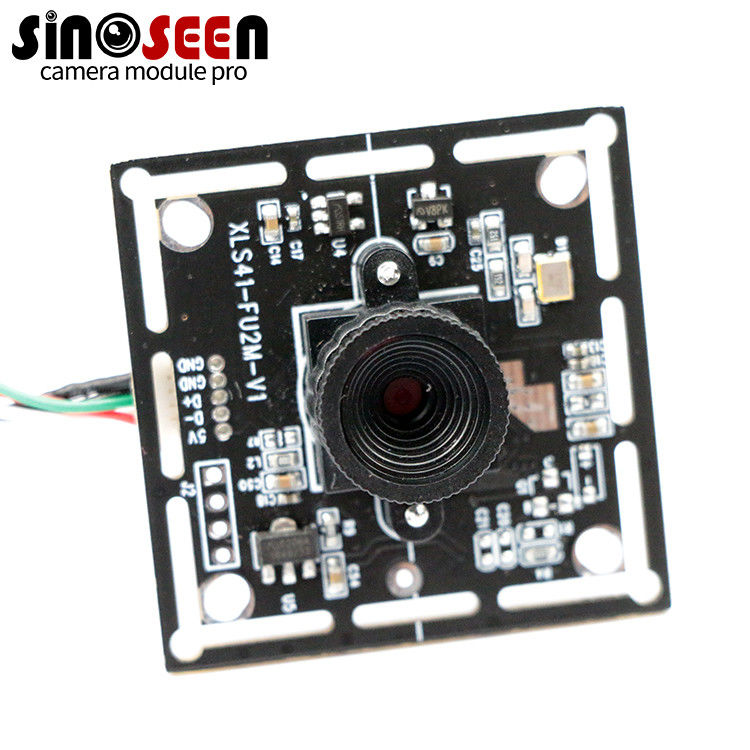

High Frame Rate Ov9281 Camera Module Black White Image 120FPS

Global Shutter Black and White Image 120FPS High Frame Rate USB Camera Module with OV9281 sensor

This is one of our most popular global shutter camera modules with Omnivision OV9281 CMOS sensor that has a resolution of 1 megapixel and supports a high frame rate up to 120 fps at full resolution. It is widely used in many consumer and industrial applications, including augmented reality (AR), virtual reality (VR), drones, robotics, artificial intelligence, sports, machine vision, computer vision, industrial automation, vision systems, imaging , Automobiles, object tracking, agriculture, barcode scanning and factory automation, etc.
This OV9281 global shutter black and white image 120FPS high frame rate USB camera module dimension is 38MM x38MM and compatible with 32MM x32MM currently, we can adjust the size and shape of the module according to your requirements. The standard focal length of the module lens is 3.6mm, the FOV is 90° with no distortion. We can also change the FOV of the lens from 40° to 220° as needed.



Specification



Model No
SNS-120FPS-OV9281-S1
Sensor
1/4" Omnivision OV9281 CMOS
Pixel
1 Mega Pixel
Most effective pixels
1280(H) x 800(V)
Pixel Size
3.0µm x 3.0µm
Image area
3896um(H) x 2453um (V)
Compression format
MJPG / YUY2
Resolution & Frame rate
See above
Shutter Type
Global Shutter
Chroma
B&W, Monochrome
Focus type
Fixed focus
S/N ratio
38dB
Dynamic range
68dB
Dark current
80e-/sec
Interface type
High speed USB2.0
Adjustable parameter
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure
Lens
Focal length: 3.6mm

Lens Size: 1/4 inch

FOV: 90° non distortion

Thread Size: M12*P0.5
Audio frequency
Optional
Power supply
USB BUS POWER
Power consumption
DC 5V, 180mW
Main chip
DSP/SENSOR/FLASH
Auto Exposure Control
Support
Auto White Balance
Support
Auto Gain Control
Support
Dimension
38mm x 38mm (compatible with 32mmx32mm)
Storage temperature
-20°C to 70°C
Operating temperature
0°C to 60°C
USB cable length
Default
Support OS
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

High Frame Rate Ov9281 Camera Module Black White Image 120FPS 0High Frame Rate Ov9281 Camera Module Black White Image 120FPS 1



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current avaliable global shutter USB camera module





Omnivision                       OV7251        0.3MP         Monochrome(black and white)



Omnivision                       OV9281           1MP         Monochrome(black and white)



ON Semiconductor          AR0144            1MP         Monochrome(black and white) or RGB color



Omnivision                      OG02B1B         2MP         Monochrome(black and white)



Omnivision                      OG02B10          2MP        RGB color
