OG02B10 60FPS USB Camera Module Global Shutter For Industrial Machine Vision Applications
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-OG02B10-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.9" Omnivision OG02B10 |
|---|---|---|---|
| Resolution: | 2MP (1600*1200) | Dimensions: | 38mmx38mm (compatible With 32mmx32mm) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Global Shutter |
| Highlight: | 1600*1200 Global Shutter Camera Module,2MP Global Shutter Camera Module,OG02B10 usb 2.0 camera module |
||
Product Description
Color Image Global Shutter Camera Module 1600*1200 Pixels With OG02B10 Sensor
Global Shutter Color Image 2MP USB Camera Module with Omnivision OG02B10 sensor

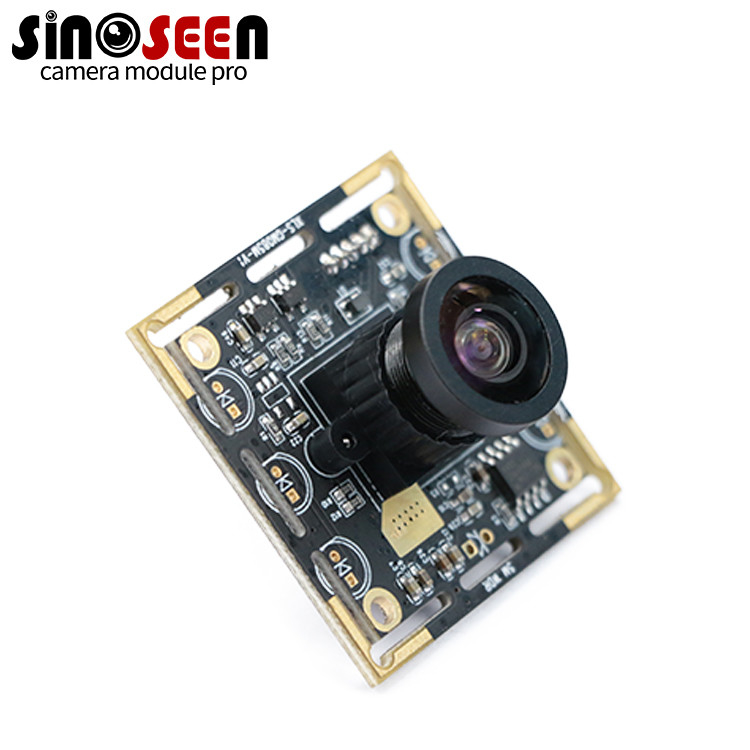

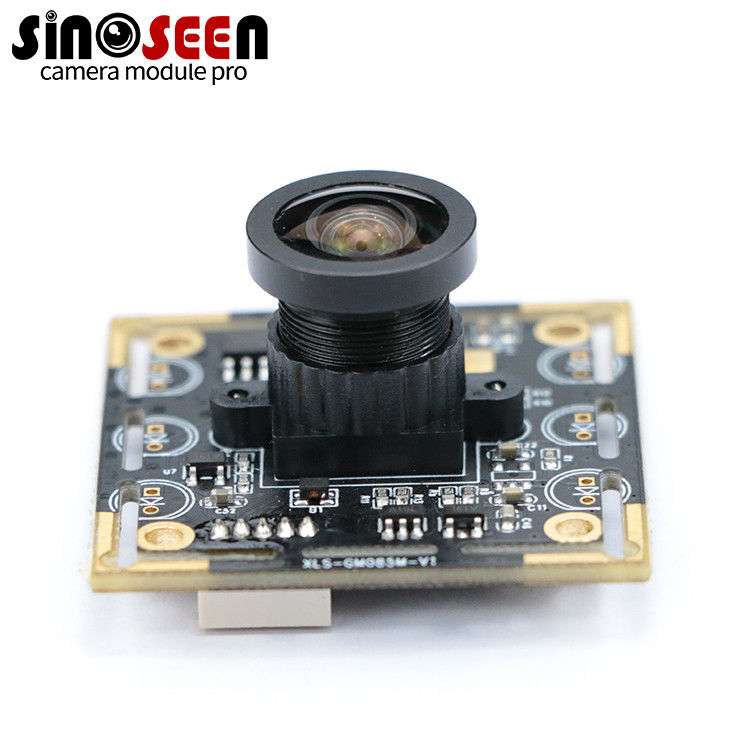

OG02B10 USB Camera Module
This is our latest and most advanced global shutter USB2.0 camera module with Omnivision's OG02B10 sensor. Unlike most other global shutter modules which usually have 0.3MP or 1MP resolution, this is the highest resolution you can get a global shutter camera module on the current market. The Tis sensor features color images and frame rates up to 60fps. There is also a monochrome version called the OG02B1B if you need a black and white image.

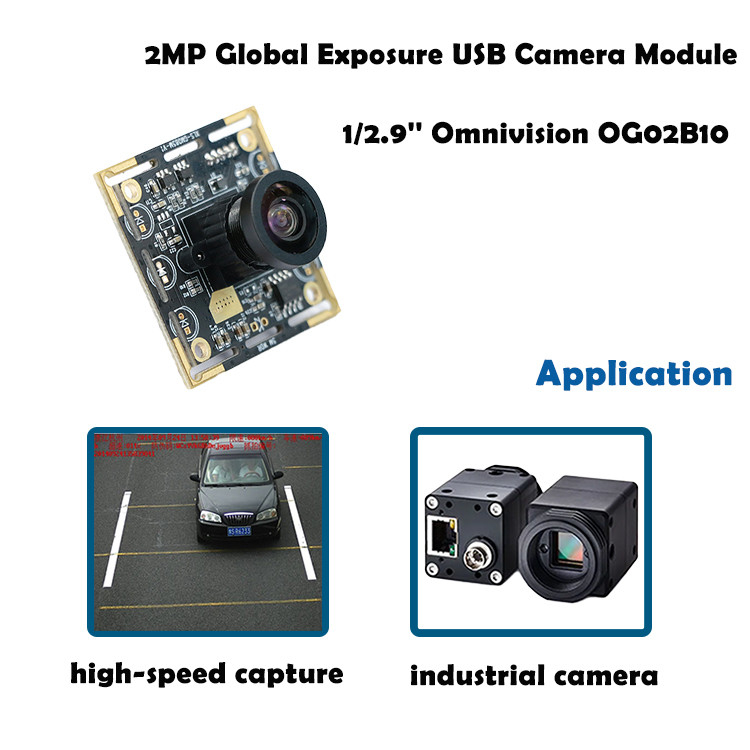

This camera module is widely used in many high-tech, high-end consumer and industrial machine vision applications such as AR/VR, industrial automation, robotics, drones, 3D modeling, imaging, barcode scanning, factory automation, healthcare, agriculture, and Artificial intelligence (AI), computer vision, etc.
Specification:Global Shutter Camera Module
|
Model No |
SNS-2MP-OG02B10-V1.0 |
|
Sensor |
1/2.9’’ Omnivision OG02B10 |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1600(H) x 1200(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Chroma |
COLOR |
|
Compression format |
MJPG / YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Global shutter |
|
Focus type |
Fixed Focus/Manually Adjustable |
|
Clock Frequency |
6 to 27 MHz |
|
Chief Ray Angle (CRA) |
15° |
|
Microphone |
Optional |
|
Interface type |
USB 2.0 high speed |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/Gamma |
|
Lens |
Lens Structure: 6G |
|
|
Lens Size: 1/2.5 inch |
|
|
H FOV: 90° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, <200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38mmx38mm (compatible with 32mmx32mm) |
|
Storage temperature |
-20°C to 75°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
|
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
