AR0230 Chip Module Camera USB Wide Dynamic Range 2MP 1080P 30FPS

AR0230 Chip Module Camera USB Wide Dynamic Range 2MP 1080P 30FPS

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-2MP-AR0230-W1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/2.7" ON Semiconductor AR0230
Resolution: 2MP 1928(H)X1088(V) Dimensions: 32x32mm (customizable)
Lens FOV: 90°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: WDR
High Light:

2MP 30FPS Module Camera USB

,

AR0230 30FPS Module Camera USB

,

AR0230 2MP autofocus camera module

Product Description

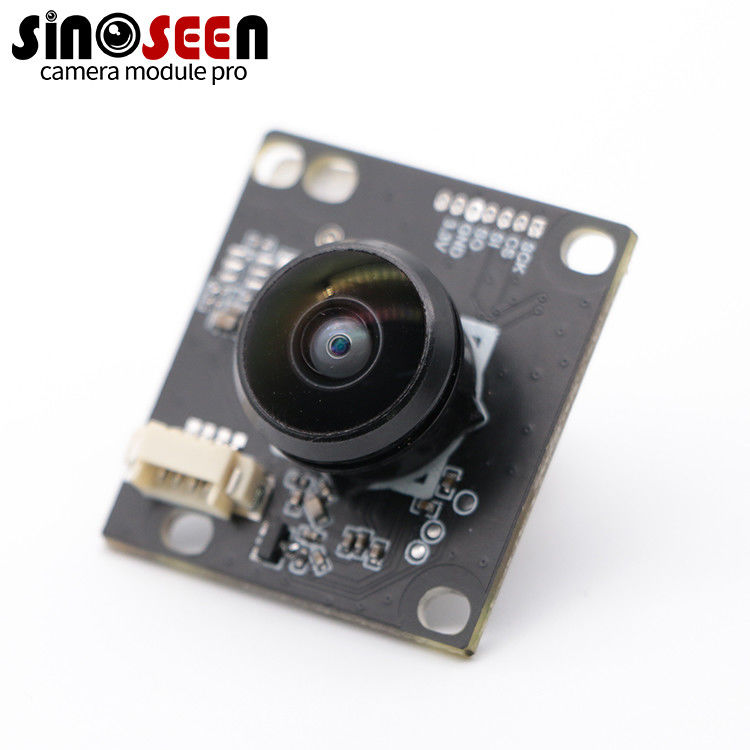

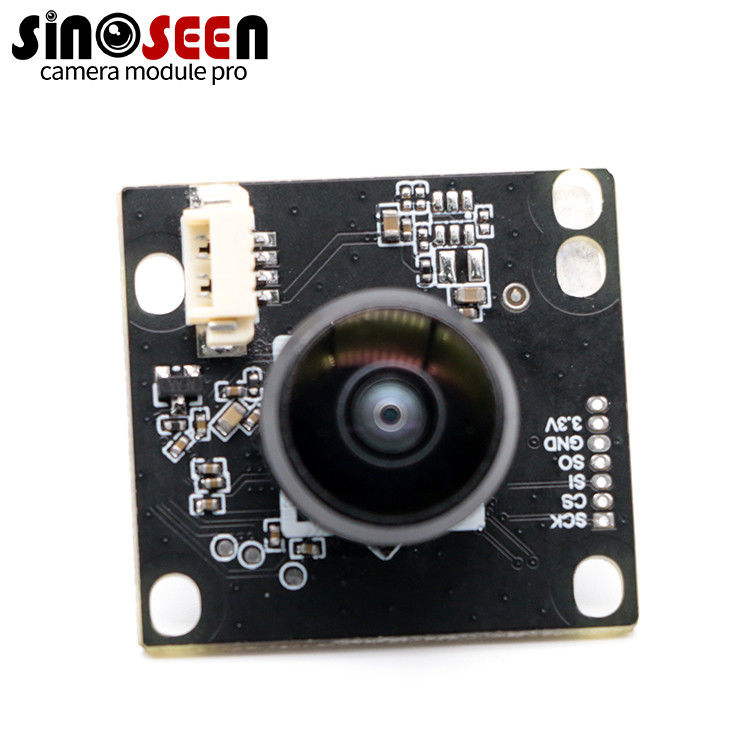

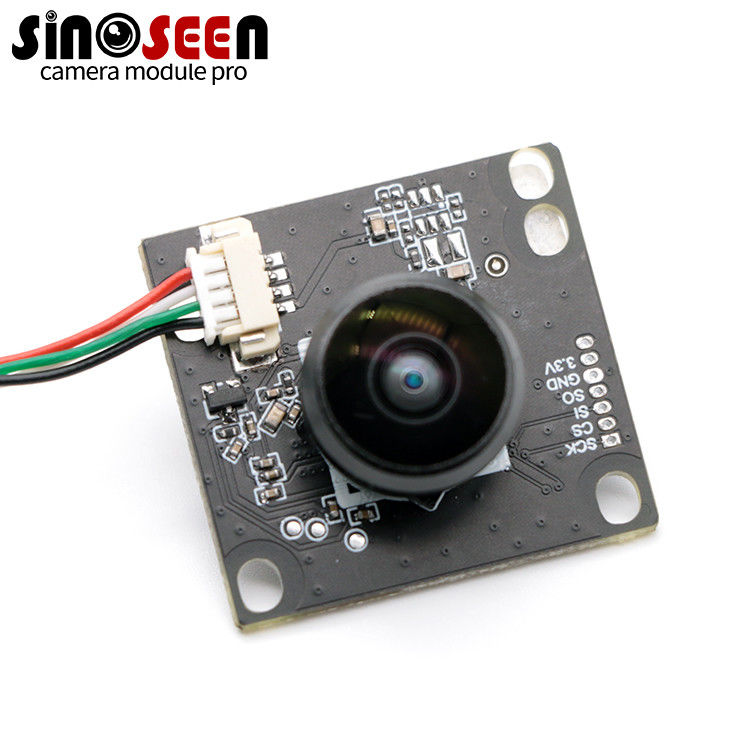

AR0230 Chip Module Camera USB Wide Dynamic Range 2MP 1080P 30FPS

Wide Dynamic Range 2MP 1080P 30FPS USB Camera Module With ON Semiconductor AR0230 Chip





This is a high quality wide dynamic USB camera module with AR0230 sensor from ON Semiconductor, ON Semiconductor's AR0230CS is a 1/2.7-inch CMOS digital image sensor with an active-pixel array of 1928Hx1088V. It captures images in either linear or high dynamic range modes, with a rolling-shutter readout. It includes sophisticated camera functions such as in-pixel binning, windowing and both video
and single frame modes. It is designed for both low light and high dynamic range scene performance. It is programmable through a simple two-wire serial inter face. The AR0230CS produces extraordinarily clear, sharp digital pictures, and its ability to capture both continuous video and single frames makes it the per fect choice for a wide range of applications, including surveillance and HD video.



It has below features:
Superior low-light performance
Full HD support at up to 1080P 60 fps for superior video performance
Linear or high dynamic range capture
Integrated position-based color and lens shading correction
Stereo/3D camera support
Auto black level calibration
High-speed configurable context switching
Temperature sensor



And always be used in these applications:
#Video surveillance #1080p60 (Surveillance) video applications #High dynamic range imaging





Specification


Module No

SNS-2MP-AR0230-W1

Pixel Size

3.0μm x 3.0μm

Effective Pixels

1928(H)X1088(V)

Video output

YUV2 MJPG

Active Array Size Video Rate

1080P@ 60fps

Image Sensor

1/2.7" ON Semiconductor AR0230

SNR max

TBDdB

Dynamic range

TBDdB

OTG

USB2.0 OTG

AEC

Support

AEB

Support

AGC

Support

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure

Lens view

FOV90°(optional),F/N(optional)

Interface

USB BUS POWER 5P-1.25mm

Operating Voltage

DC5V

Operating Current

MAX120MMA

Operating temperature

0~60℃

Storage temperature

-20~70℃

Cable length

Defualt

OS

WinXP/Vista/Win7/Win8

Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC

AR0230 Chip Module Camera USB Wide Dynamic Range 2MP 1080P 30FPS 0AR0230 Chip Module Camera USB Wide Dynamic Range 2MP 1080P 30FPS 1



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current available USB solution



0.3MP

Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

Global shutter:OV7251 (1/7.5”,B/W)

High frame rate:200FPS SC031GS(1/6”,B/W)

Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)



1MP

Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

Small size for endoscope:OV9734 GC1009 HM1091

Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)



2MP

Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

1080P-WDR (30FPS): AR0230 AR0331(300W)

1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

1080P big size: IMX385

1080P global shutter: OG02B10(color) OG02B1B(B/W)



5MP

500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)



8MP

800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)



13MP-16MP

IMX214(13M) IMX258(13M) IMMX298(16M)



USB3.0

IMX335 OV5648 IMX179 IMX307 PS5268



H264

GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
