20mp HD Auto Focus Optical Image Stabilized IMX230 Camera Module With MIPI Interface
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Sinoseen |
Certification: | RoHS |
Model Number: | SNS-230-v1.0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 3 |
---|---|
Price: | negotiable |
Packaging Details: | Tray+Anti-static bag in carton box |
Delivery Time: | 2-3weeks |
Payment Terms: | T/T |
Supply Ability: | 500000 pieces/month |
Detail Information |
|||
Type: | 20MP Camera Module | Sensor: | IMX230 |
---|---|---|---|
Dimensions: | (customizable) | Focus Type: | Fixed Focus/ Auto Focus |
Interface: | Mipi | Feature: | HDR |
High Light: | 20mp IMX230 Camera Module,MIPI Interface IMX230 Camera Module,Auto Focus MIPI Camera Module |
Product Description

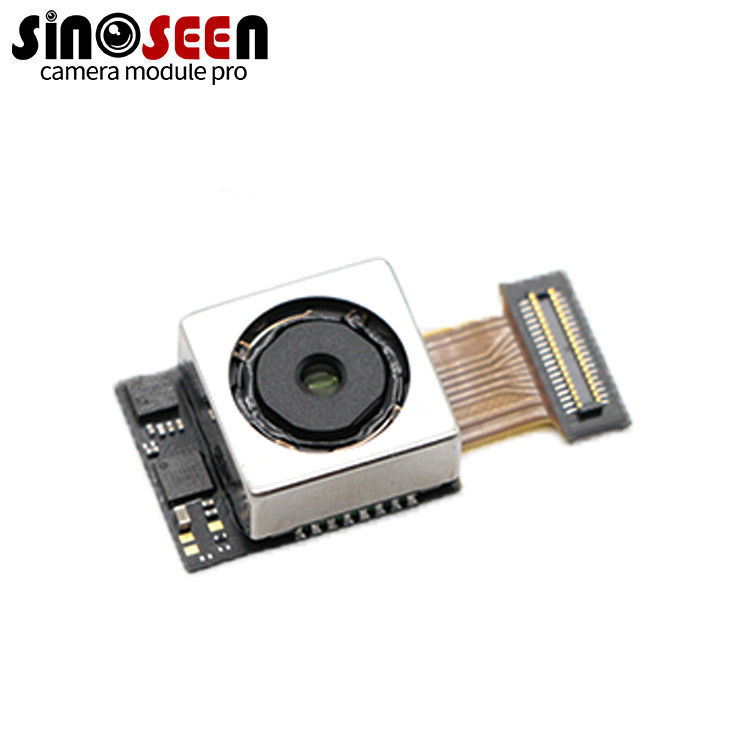

20mp HD Auto Focus IMX230 Optical Image Stabilized Camera Module with MIPI Interface
20mp Auto Focus camera module
This is a camera module using MIPI interface, Sony IMX230sensor, with 20 million pixels, which means it can capture images with a resolution of up to 5344*4016, presenting more detailed elements. It also has high-definition auto-focus function, optical image stabilization and other functions.
Where do you need the optical image stabilization function? For example, dark scenes require longer exposure times. For example, a telephoto lens that is easily affected by shaking; for example, when taking a video. Secondly, the biggest effect of optical image stabilization is to solve the problem of image exposure in low light. In the past, the method of increasing the ISO was used, but the negative effect was that the image became dirty, and it could only be compensated by noise reduction, and it would lose clarity.
Therefore, the optical anti-shake used in this module can lengthen the exposure time, allowing more light to enter, and the probability of image shaking will increase if the exposure time is long, and then use the floating lens group to offset part of this floating, so that To a large extent, it solves the problem of underexposure of the picture under low light.
If you have similar needs, you can use this design to customize your own camera module. We have a professional engineer team to discuss with you various requirements such as structure size and function, and customize various mipi camera modules according to your requirements.
Sensor Type | SNS-230-v1.0 |
Interface type
|
mipi
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
Power supply
|
USB BUS POWER
|
Support OS
|
WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Dimensions |
Customizable |
