1MP HD Infrared Camera Module 120FPS 330FPS Thermal Ambarella Wifi

1MP HD Infrared Camera Module 120FPS 330FPS Thermal Ambarella Wifi

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-1MP-120FPS-S1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/3" OmniVision CMOS SENSOR
Resolution: 1MP HD 1280(H)X800(V) Dimensions: (customizable)
Lens FOV: 180°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Fisheye Lens
High Light:

Thermal Ambarella Infrared Camera Module

,

330FPS Infrared Camera Module

,

Wifi 1MP Camera Module

Product Description

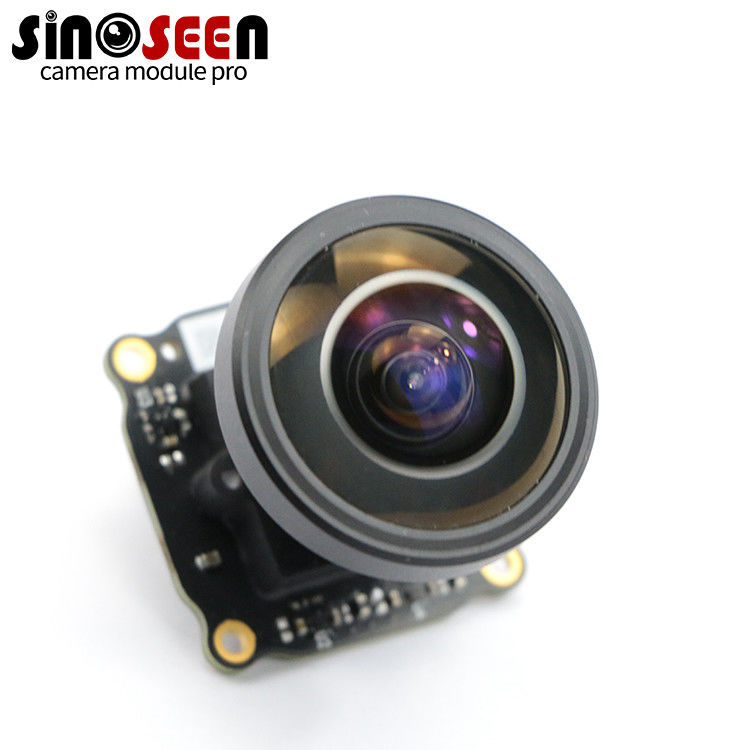

120FPS 330FPS 1MP Camera Module Infrared Thermal Ambarella Wifi Camera Board

120FPS & 330FPS High Frame Rate USB Camera Module infrared thermal ambarella wifi camera board





1MP Camera Module

Camera modules that support 120FPS and 330FPS are indeed rare and useful in scenarios where fast-moving objects or events need to be captured. The fact that it only supports one compression format (MJPEG) means it may not be as versatile as other cameras that support multiple compression formats. MJPEG is a popular compression format that can provide good image quality, but may result in larger file sizes compared to other compression formats.

The camera's ability to take color images is also useful because it can provide more detail and information than a black and white image. It's important to note, however, that color images may not be as effective as other imaging modes in certain scenarios, such as low-light or thermal imaging.





Specification

Model No

SNS-1MP-120FPS-S1

Sensor

1/3’’ OmniVision CMOS SENSOR

Pixel

1 Mega Pixel

Most effective pixels

1280 x 720

Pixel Size

3µm x 3µm

Image area

5440umx 3072um

Compression format

MJPEG ONLY

Resolution & Frame rate

1280x720@120FPS; 640x360@330FPS;

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

S/N ratio

38.3dB

Dynamic range

64.6dB

Dark current

1900m V/lux-sec (@550nm)

Interface type

USB2.0

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Lens

Focal length: 4mm

Lens Size: 1/3 inch

FOV: 180° and optional

IR-CUT filter: 650+/-10nm

Chroma

RGB

Power supply

USB BUS POWER

Power consumption

DC 5V, 180mW

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

38MMx38MM

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

1MP HD Infrared Camera Module 120FPS 330FPS Thermal Ambarella Wifi 01MP HD Infrared Camera Module 120FPS 330FPS Thermal Ambarella Wifi 1

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Camera module customization process





1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right SENSER+ lens solution, and then design the product PCB or FPC according to the structural requirements.



2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
