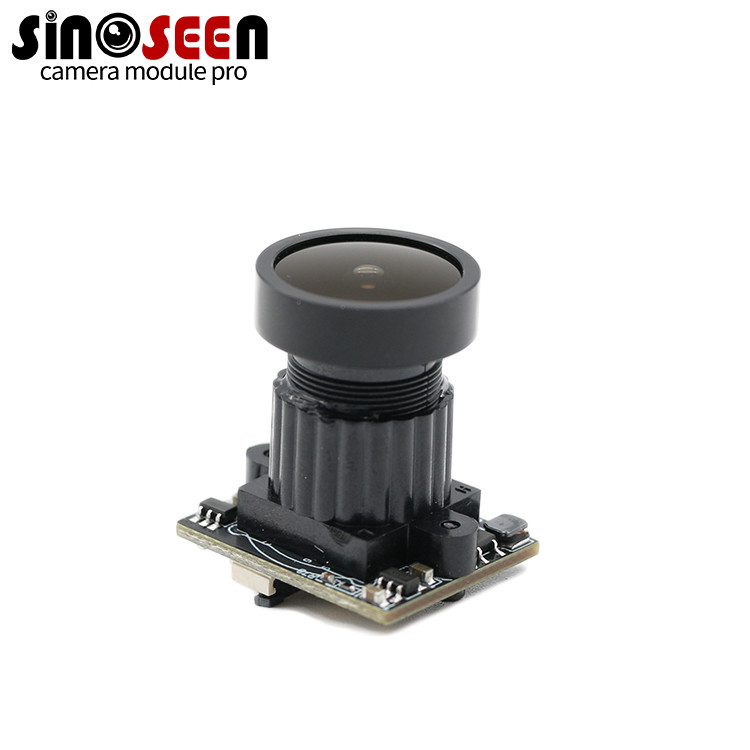

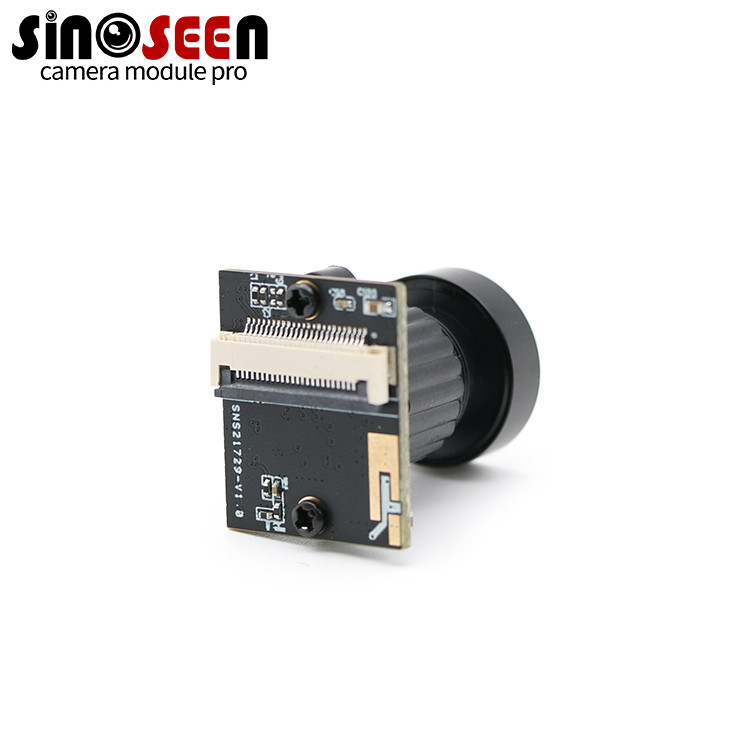

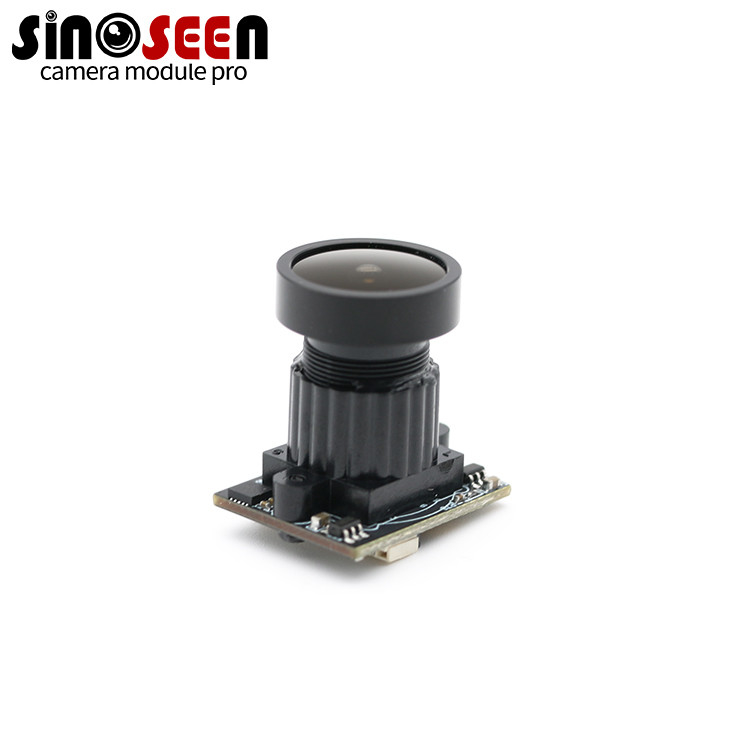

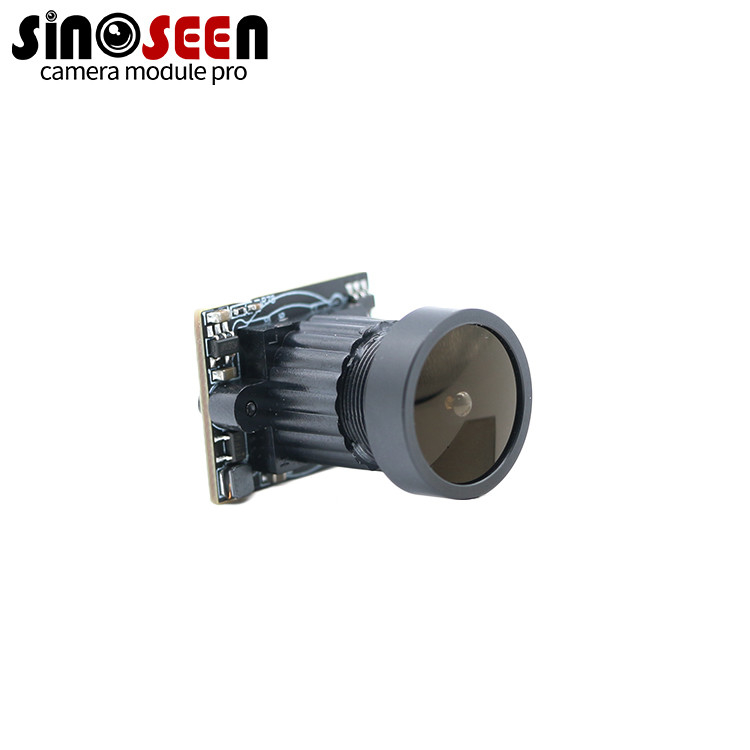

2MP GC2053 CMOS 1080P Mipi Camera Module Fixed Focus HD 30FPS
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS21729-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2MP Camera Module | Sensor: | 1/2.9’GC2053 CMOS |
|---|---|---|---|
| Resolution: | H1920*V1080 | Dimensions: | (customizable) |
| Pixel Size: | 2.8um X2.8um | Focus Type: | Fixed Focus |
| Interface: | Mipi | Feature: | HD |
| High Light: | 1080P Mipi Camera Module,GC2053 CMOS Camera Module,2MP Camera Module 30FPS |
||
Product Description
2MP GC2053 CMOS 1080P Mipi Camera Module Fixed Focus HD 30FPS
2MP MIPI Camera Module
This is a compact camera system designed for high-definition imaging applications. It features a GC2053 CMOS image sensor capable of capturing images with a resolution of 2 megapixels. The camera module supports 1080P resolution, which is equivalent to a resolution of 1920 x 1080 pixels. This enables the module to capture high-quality, Full HD images or videos with crisp detail and clarity. The camera module is designed with a fixed-focus lens, that is, the focal length is set at a specific point and can be adjusted manually or automatically. These lenses are suitable for applications where the shooting distance is relatively constant, requiring a simple and cost-effective camera solution. The camera module supports a frame rate of 30 frames per second (FPS) at 1080P resolution. This frame rate provides smooth, real-time video capture, making it suitable for applications such as video conferencing, surveillance or live broadcasting. The 2MP GC2053 CMOS 1080P MIPI camera module with fixed focus and 30FPS capability provides a compact HD imaging solution. It is suitable for various applications requiring high-quality imaging and real-time video capture, such as mobile devices, video conferencing systems, or other applications requiring high-definition imaging.
|
Model No |
SNS21729-V1.0 |
|
Sensor |
1/2.9’GC2053 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
H1920*V1080 |
|
Pixel Size |
2.8um x2.8um |
|
Image Area |
5808µm x 3288µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
MIPI |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Power supply requirement |
AVDD28: 2.7~3.3V(Typ.2.8V) |
|
DVDD18: 1.15~1.3V(Typ.1.2V) |
|
|
IOVDD: 1.7~3.0V(Typ.1.8V) |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Storage temperature |
0~60℃ |
|
Operating temperature |
-20~80℃ |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
