Place of Origin:
Shenzhen,China
Brand Name:
Sinoseen
Certification:
RoHS
Model Number:
SNS-USB9281-V1.0

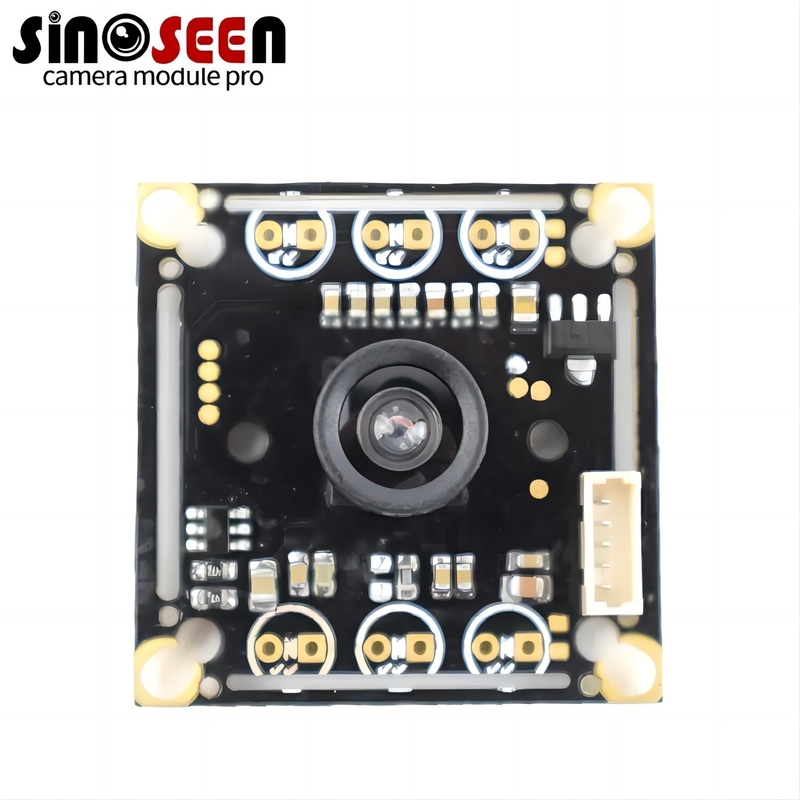

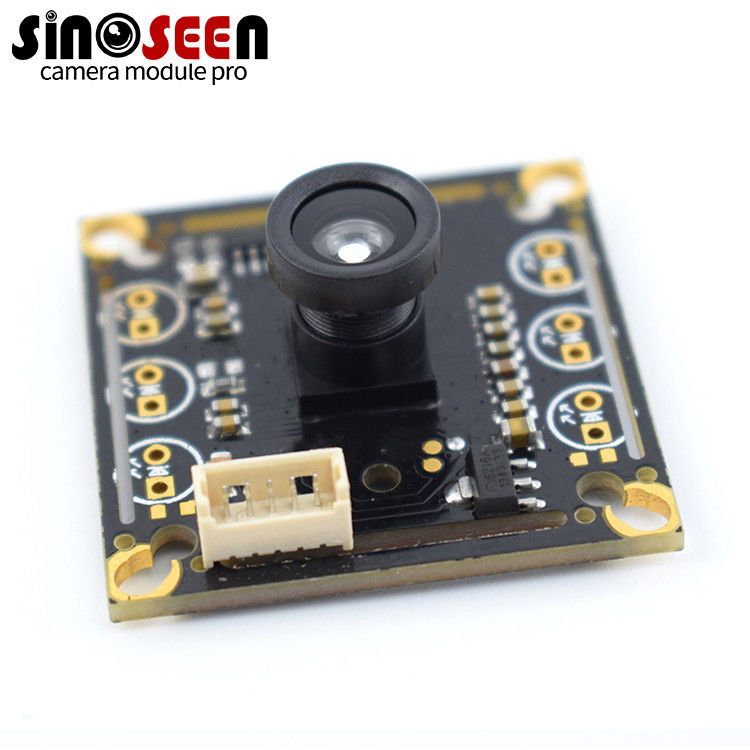

OV9281 Global Shutter USB Camera Module
This is a 1MP global shutter camera module with an Omnivision OV9281 CMOS sensor that outputs black and white images and supports high frame rates up to 120 fps at full resolution. It is widely used in many consumer and industrial applications, including augmented reality, virtual reality (VR), drones, robotics, artificial intelligence, machine vision, computer vision, industrial automation, object tracking, agriculture, barcode scanning, and factory automation, among others.

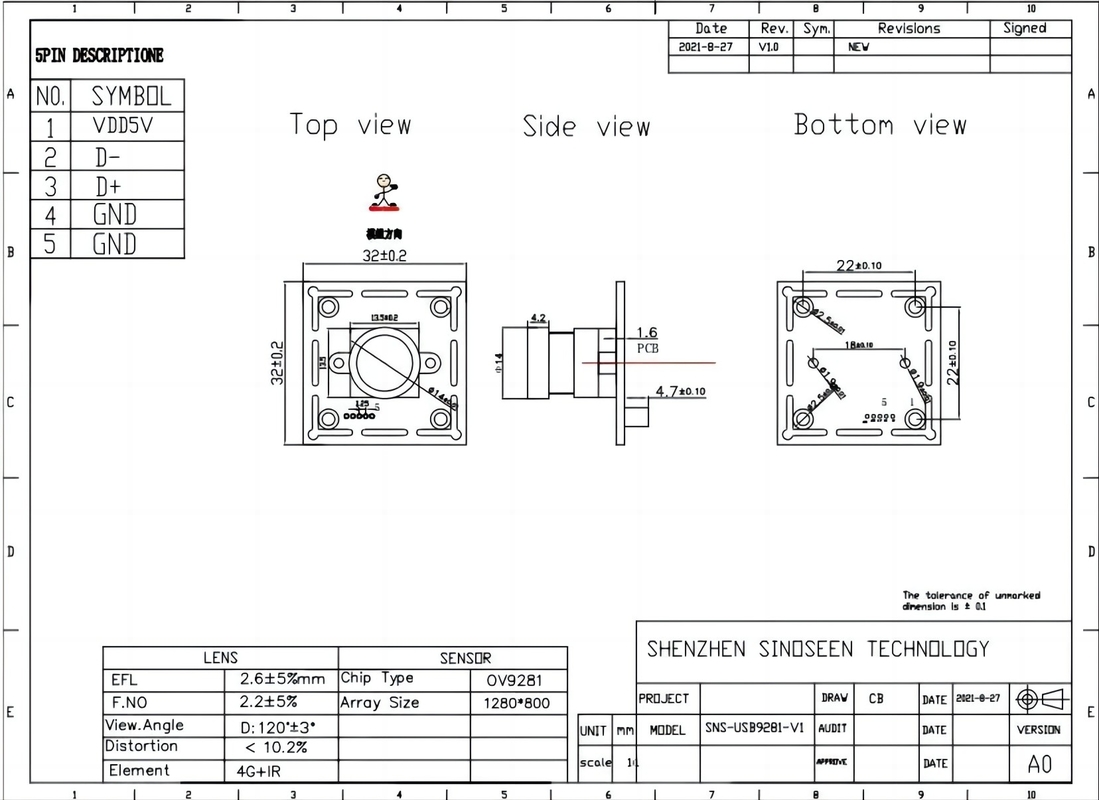

Specification:Fixed focus
|
Pixel Size |
3.0μm x 3.0μm |
|
Effective Pixels |
HD 1280(H)X800(V) |
|
Image Sensor |
1/4" |
|
AEC/AWB/AGC |
Supported |
|
Lens View |
FOV120°(Optional),F/N(Optional) |
|
Interface |
USB BUS POWER 5P-1.25mm |
|
Operating Voltage |
DC5V |
|
Working Current |
120mA~220mA |
|
Dimension |
38*38mm |
|
Cable Length |
0.6m |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
