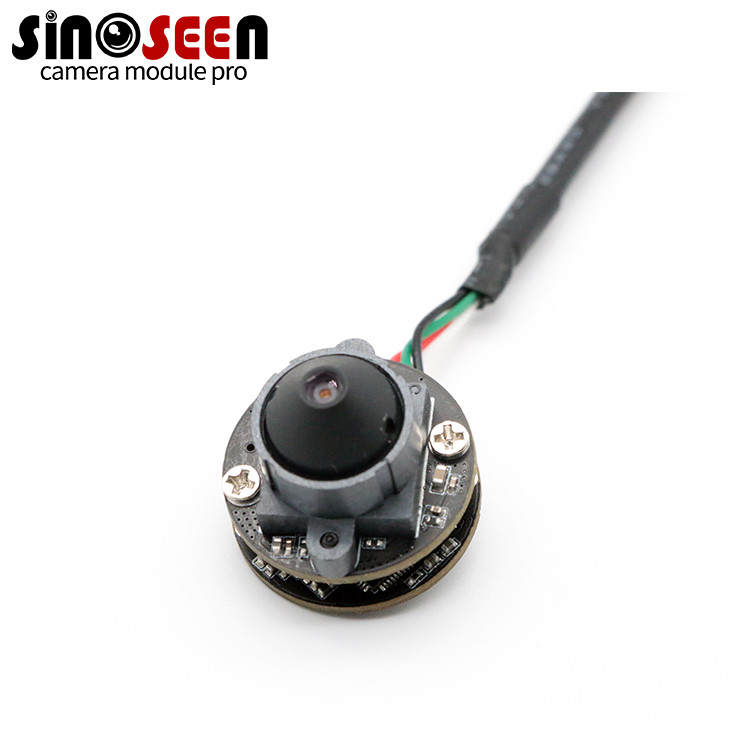

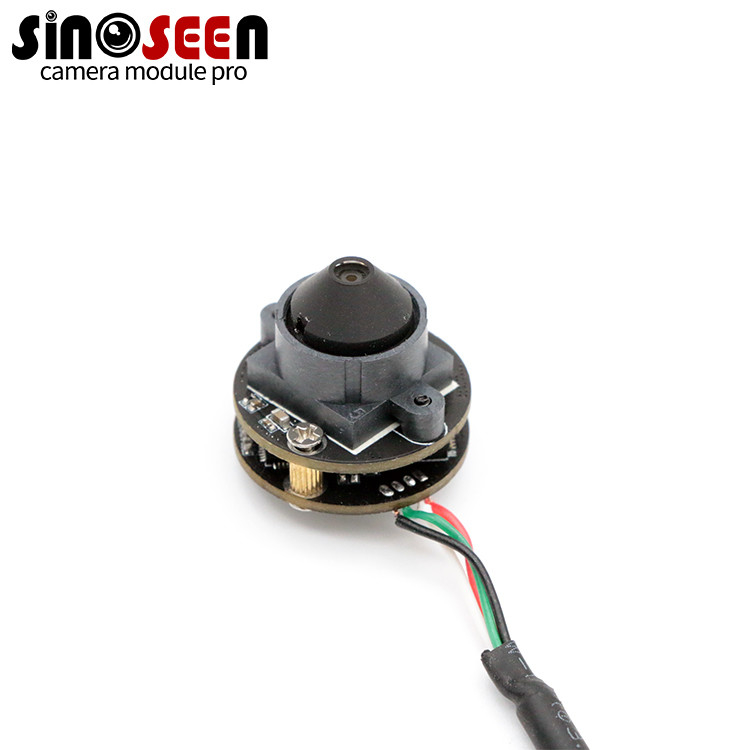

Low Power Consumption 1/4 Inch 720P USB Camera Module With GC1054 Sensor

Low Power Consumption 1/4 Inch 720P USB Camera Module With GC1054 Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-1MP-GC1054-typ

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 1MP Camera Module Sensor: 1/4 GC1054
Resolution: 1280(H) X 720(V) Dimensions: (customizable)
Lens FOV: 95°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Low Power Consumption
High Light:

1/4 Inch 720P USB Camera Module

,

GC1054 Sensor USB Camera Module

,

1/4 Inch 720P Camera Module

Product Description

720p Usb Camera Module Low Power Consumption With GC1054 Sensor

Low Power Consumption 1/4 Inch 720p Usb Camera Module With GC1054 Sensor



Usb Camera Module GC1054 Sensor

This is a low-power 1 million camera module. The maximum resolution is 1280*720. It uses a high-quality 720P GC1054 CMOS image sensor, which has the characteristics of high performance and low power consumption
It can be applied to action cameras, automobiles, DVRs, surveillance toys, digital cameras and camcorders, video telephony and conferencing equipment, security systems, industrial and environmental systems, etc.


Specification: 720P USB Camera Module
Parameter Typical value
Optical Format 1/4inch
Pixel Size 3.0um*3.0um
Active pixel array 1280*720
ADC resolution 10bit ADC
Max Frame rate 30fps@36MHz,DCLK
  AVDD:3.15-3.45V(Typ.3.3V)
Power Supply DVDD:1.4-1.6(Typ.1.5V)
  IOVDD:1.7-3.45V(Typ.1.8V)
Power Consumption 110mW@30fps,720p
SNR 41.4dB
Dart Current 200e-/s(60)
Sensitivity 18000e-/lux-sec
Dynamic range 70.7dB
Operating temperature -30-80
Stable Image temperature 0-50
Optimal Lens chief ray angle(CRA) 12(linear)
Package type CSP/PLCC
Input clock frequency 6-27MHz
