UHD Fixed Focus USB 2.0 Camera Module With Sony IMX179 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-PC292-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/3.2" SONY IMX179 |
|---|---|---|---|
| Resolution: | 8MP 3264(H) X 2448(V) | Dimensions: | 90mmx15mm (customizable) |
| Lens FOV: | 95°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | UHD |
| High Light: | 90mm USB 2.0 Camera Module,30fps USB 2.0 Camera Module,IMX179 camera module |
||
Product Description

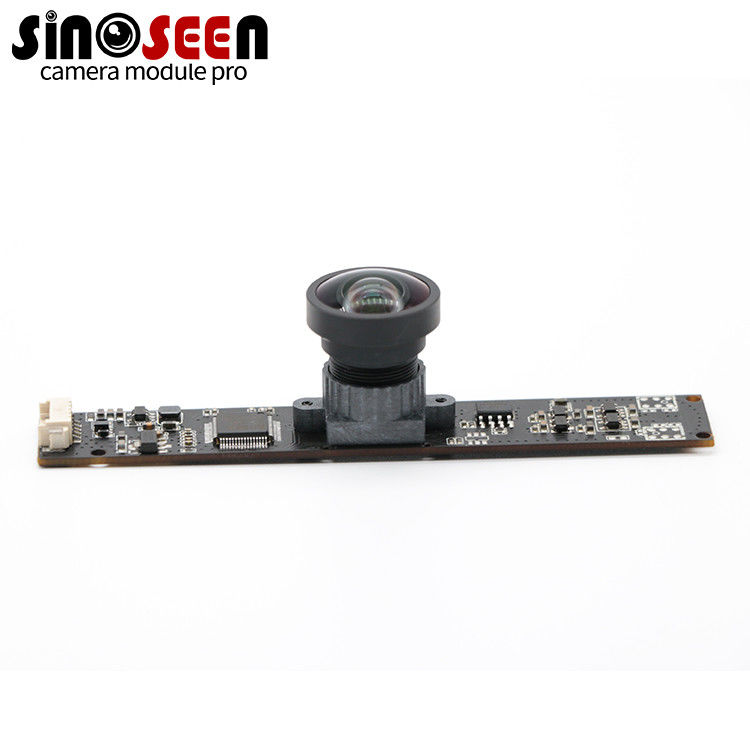

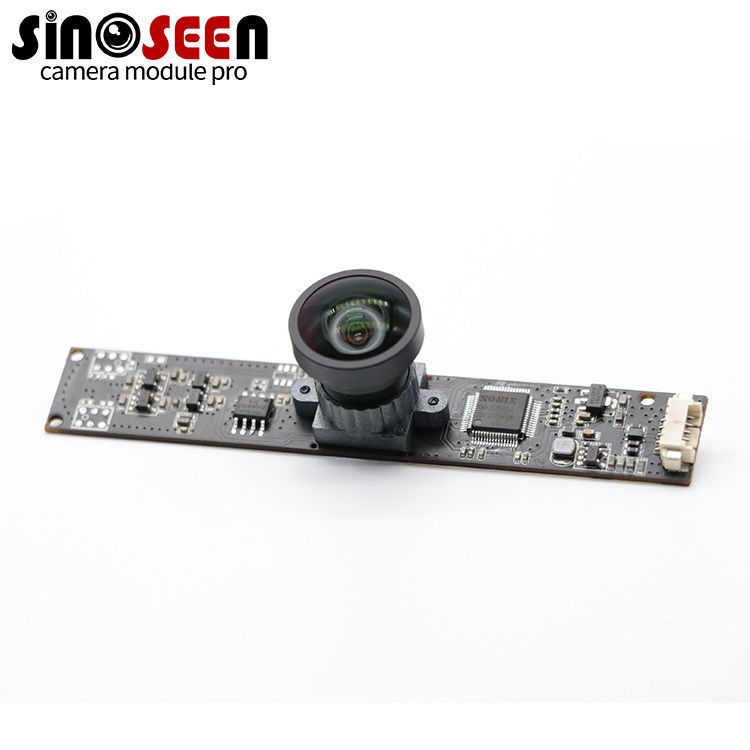

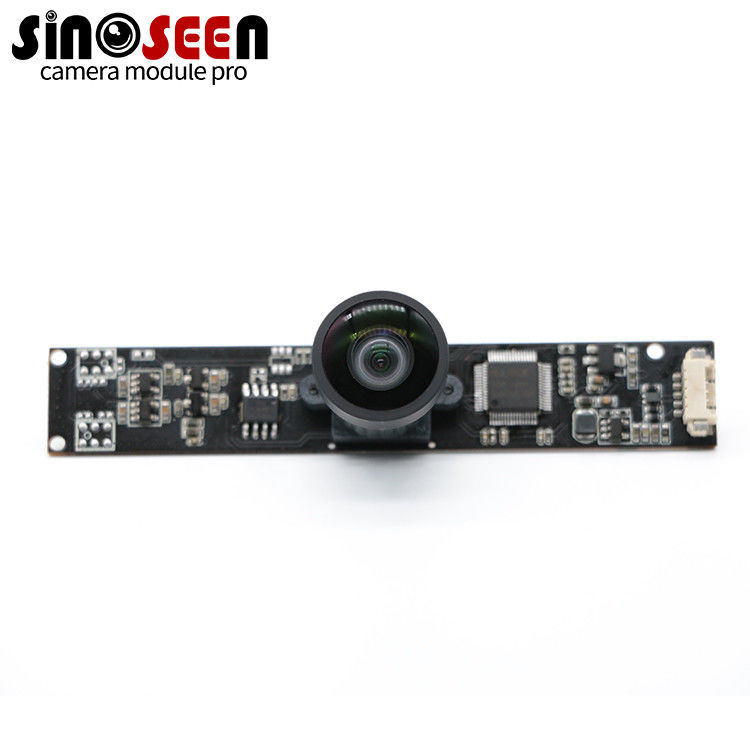

UHD Fixed Focus USB 2.0 Camera Module With Sony IMX179 Sensor
8MP UHD Fixed Focus Customizable Size USB Camera Module With SONY IMX179 CMOS Sensor
USB 2.0 Camera Module
This is our latest customized 8MP USB camera module with SONY IMX179 sensor. The PCB size and lens angle are all customized according to the requirements given by the customer. In addition, the customer’s logo is printed.
It supports below frame rates:
MPEG
3264x2448@15fps； 2592x1944@15fps； 1920x1080@30fps； 1600x1200@30fps； 1280x720@30fps； 960x540@30fps； 848x480@30fps； 640x480@30fps； 640x360@30fps； 320x240@30fps；
YUYV2
3264x2448@2fps； 2592x1944@2fps； 1920x1080@5fps； 640x480@30fps； 320x240@30fps；
Specification
|
Model No
|
SNS-PC292-V1.0
|
|
Sensor
|
1/3.2’’ IMX179
|
|
Pixel
|
8 Mega Pixel |
|
Most effective pixels
|
3264(H) x 2448(V)
|
|
Pixel Size
|
1.4µm x 1.4µm
|
|
Compression format
|
MJPG / YUY2
|
|
Resolution
|
see above
|
|
Frame rate
|
see above
|
|
Shutter Type
|
Electronic rolling shutter
|
|
Focus type
|
Fixed focus
|
|
S/N ratio
|
36dB
|
|
Dynamic range
|
60dB
|
|
Interface type
|
USB2.0
|
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens
|
Focal length: 3.6mm
|
|
|
Lens Size: 1/3 inch
|
|
|
FOV: 95° (Optional)
|
|
|
Thread Size: M12*P0.5
|
|
Audio frequency
|
Support
|
|
microphone
|
Built-in
|
|
Power supply
|
USB BUS POWER
|
|
Power consumption
|
DC 5V, 200mA
|
|
Main chip
|
DSP/SENSOR/FLASH
|
|
Auto Exposure Control (AEC)
|
Support
|
|
Auto White Balance (AEB)
|
Support
|
|
Auto Gain Control (AGC)
|
Not Supported
|
|
Dimension
|
90MM x 15MM (customizable)
|
|
Storage temperature
|
-20°C to 70°C
|
|
Operating temperature
|
0°C to 60°C
|
|
USB cable length
|
Default
|
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
