OV2735 Sensor HDR 1080P 2MP USB 2.0 Camera Module

OV2735 Sensor HDR 1080P 2MP USB 2.0 Camera Module

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-2MP-OV2735-ihj

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 2MP Camera Module Sensor: 1/2.7'' Omnivision OV2735 CMOS
Resolution: 1920(H) X 1080(V) Dimensions: (customizable)
Lens FOV: 95°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: HDR
High Light:

OV2735 Sensor USB 2.0 Camera Module

,

HDR 1080P USB 2.0 Camera Module

,

USB 2.0 2MP Camera Module

Product Description

HDR 1080p HD 2MP Usb Camera Module With OV2735 Sensor

New Style HD 2MP Usb Camera Module HDR 1080p With OV2735 Sensor



2mp camera module

This is a HDR 2mp camera module. Use OV2735 Sensor.1/2.7 size
The maximum resolution is 1920*1080. It supports MJPEG/YUY2 dual output formats. It has high-definition and high-dynamic characteristics. 30FPS per second, 720P resolution up to 60FPS. Can be used in security, driving recorder, network camera, video conferencing all-in-one machine, advertising all-in-one machine and other fields


Specification:HDR 1080P camera module
Model No SNS-2MP-OV2735-ihj
Sensor 1/2.7’’ Omnivision OV2735 CMOS
Pixel 2 Mega Pixel
Most effective pixels 1920(H) x 1080(V)
Pixel Size 3.0µm x 3.0µm
Image Area 5808µm x 3288µm
Compression format YUV2 / MJPG
Resolution See above
Frame rate See above
Shutter Type Electronic rolling shutter
Focus type Fixed focus
S/N ratio TBDdB
Dynamic range TBDdB
Sensitivity 3700 mV/lux-sec
Interface type USB2.0

Adjustable parameter
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure
Lens Focal length: 3.6mm
IR Cut filter: 850nm
FOV: 95°
Thread Size: M12*P0.5
Audio frequency Optional
Power supply USB BUS POWER
Power consumption DC 5V, 200mA
Main chip DSP/SENSOR/FLASH
Auto Exposure Control (AEC) Support
Auto White Balance (AEB) Support
Auto Gain Control (AGC) Support
Dimension 38x38MM
Storage temperature -20°C to 70°C
Operating temperature 0°C to 55°C
USB cable length Default
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

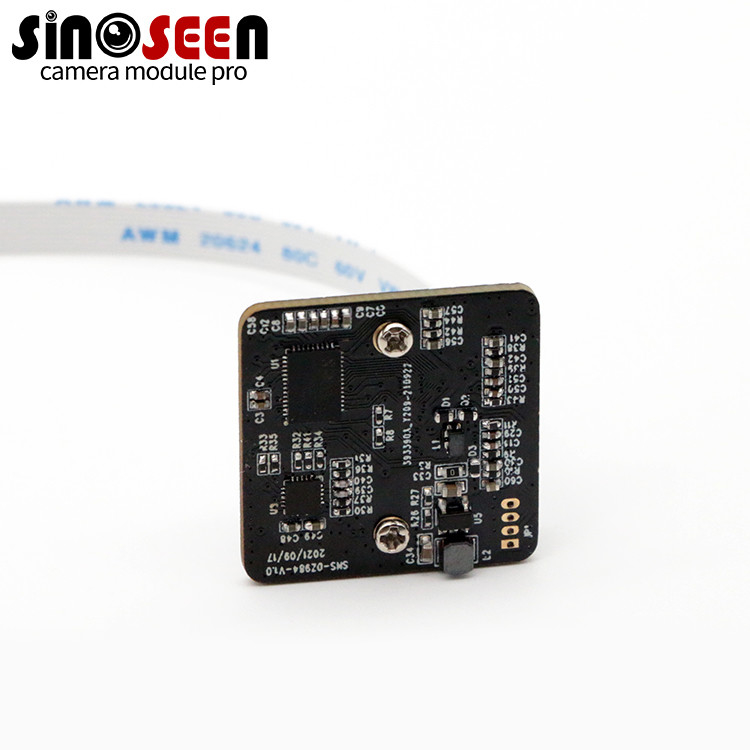

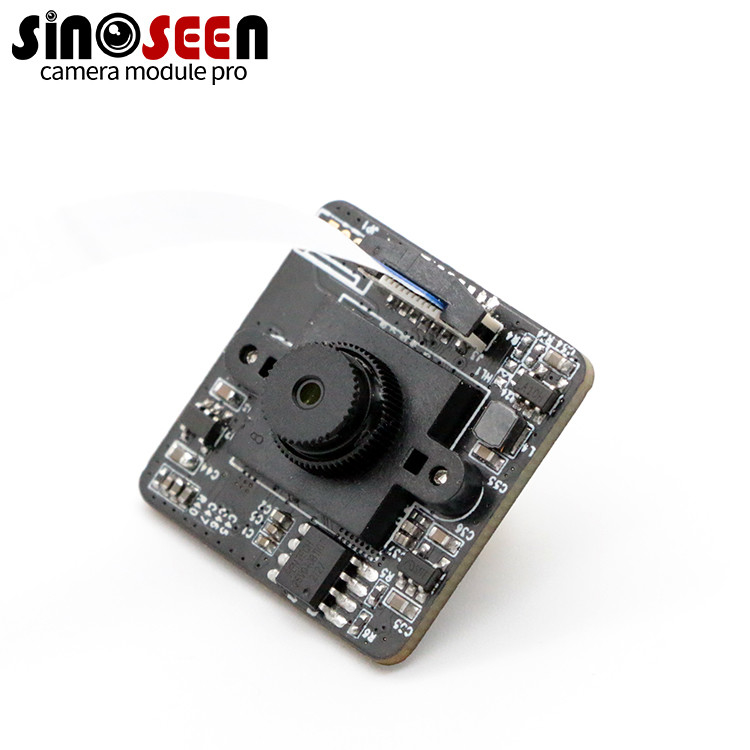

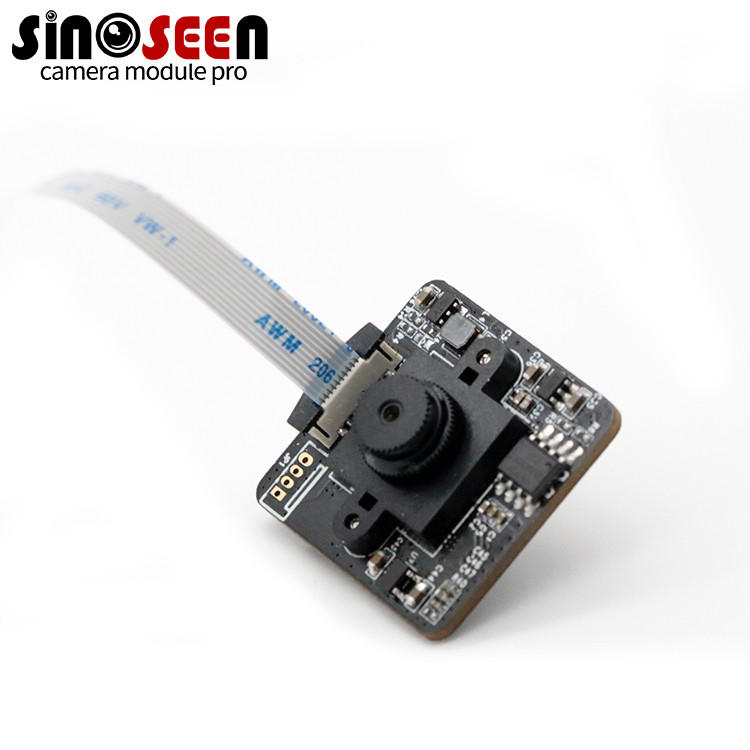

OV2735 Sensor HDR 1080P 2MP USB 2.0 Camera Module 0
