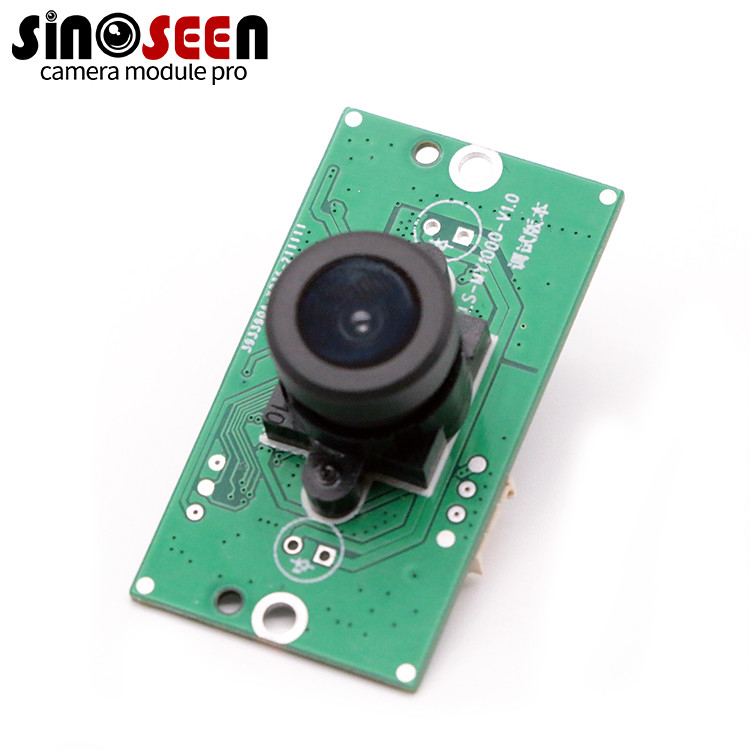

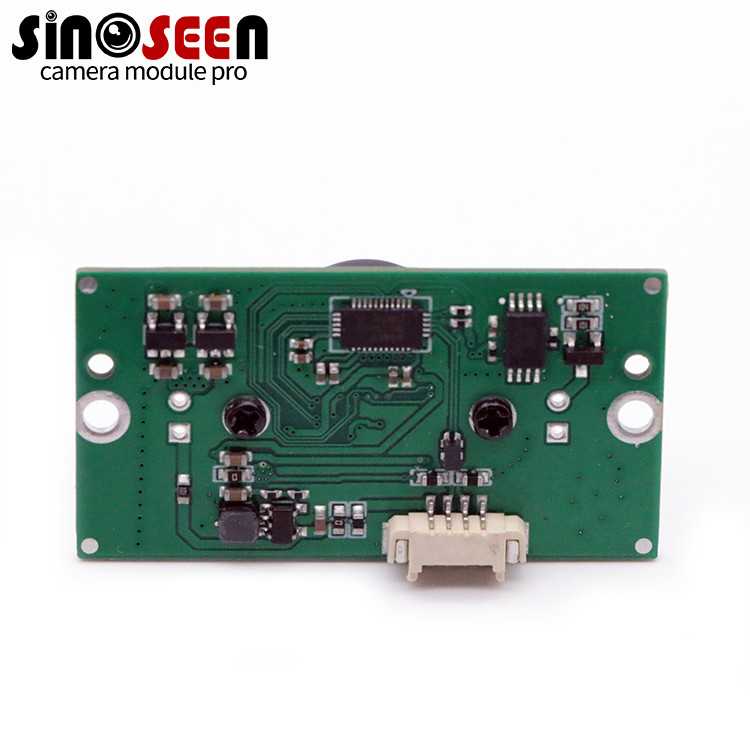

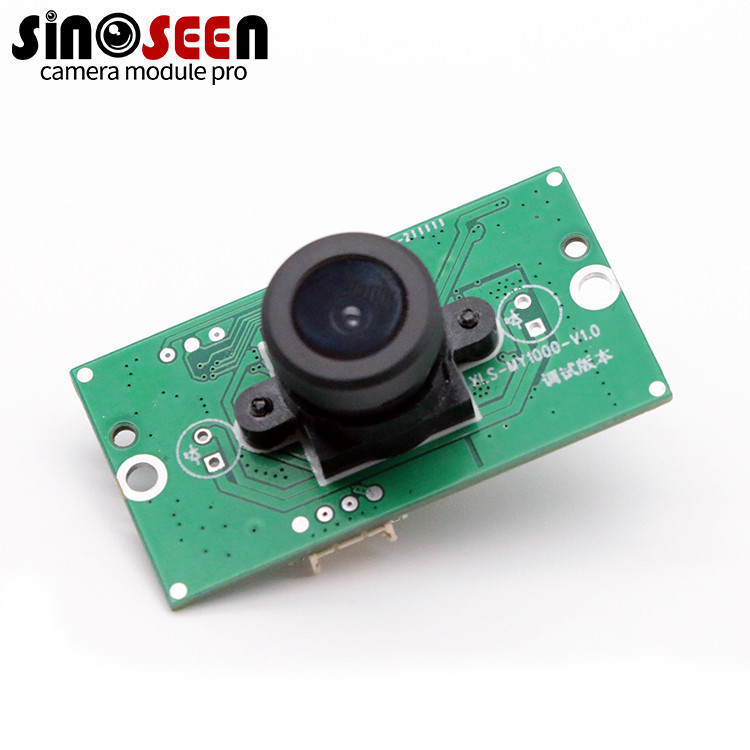

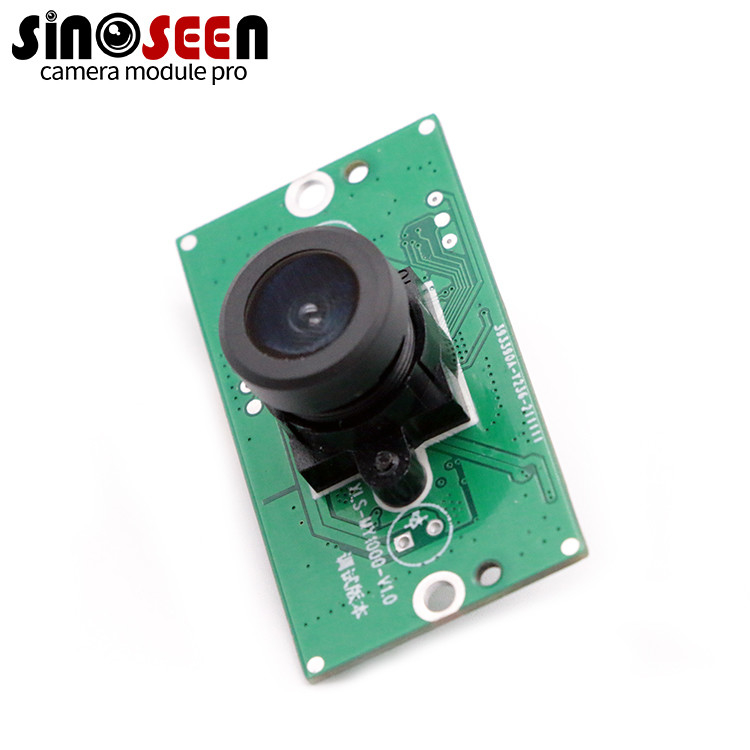

Fixed Focus 1080P 30FPS 2MP USB Camera Module With GC2053 Sensor

Fixed Focus 1080P 30FPS 2MP USB Camera Module With GC2053 Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-2MP-GC2053-iio

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 2MP Camera Module Sensor: 1/2.7'' Omnivision OV2735 CMOS
Resolution: 1920(H) X 1080(V) Dimensions: (customizable)
Lens FOV: 95°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: HDR
High Light:

30FPS USB Camera Module

,

GC2053 Sensor USB Camera Module

,

2MP 1080P Camera Module

Product Description

1080p Fixed Focus 30FPS 2MP Usb Camera Module With GC2053 Sensor

Factory Price Fixed Focus 30FPS 2MP Usb Camera Module 1080p With GC2053 Sensor





1080p 2MP USB Camera Module

Features: Size: 1/2.7

Maximum resolution: 1920*1080

1. MJPEG/YUY2 dual output format is optional

2. With the characteristics of high definition and high dynamics, it can also have a good image quality output in low light conditions

3. A complete 1080P full-size image array with 30FPS per second, 720P resolution up to 60FPS Application: usually used in security, car data recorder, web camera, video conference all-in-one machine, advertising all-in-one machine and other fields



Specification:GC2053 Camera Module

Model No

SNS-2MP-GC2053-iio

Sensor

1/2.7’’ Omnivision OV2735 CMOS

Pixel

2 Mega Pixel

Most effective pixels

1920(H) x 1080(V)

Pixel Size

3.0µm x 3.0µm

Image Area

5808µm x 3288µm

Compression format

YUV2 / MJPG

Resolution

See above

Frame rate

See above

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

S/N ratio

TBDdB

Dynamic range

TBDdB

Sensitivity

3700 mV/lux-sec

Interface type

USB2.0


Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Lens

Focal length: 3.6mm

IR Cut filter: 850nm

FOV: 95°

Thread Size: M12*P0.5

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, 200mA

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

38x38MM

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 55°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
