Name: 8MP IMX317 USB Camera Module 4K 30FPS
Brand: Shenzhen Sinoseen Technology Co., Ltd
SKU: SNS-DZ1009-V1.0
Availability: InStock

Home > products > USB Camera Module >

8MP IMX317 USB Camera Module 4K 30FPS

8MP USB camera module

4K 30FPS USB camera

IMX317 sensor camera module

Place of Origin:

Shenzhen,China

Brand Name:

Sinoseen

Certification:

RoHS

Model Number:

SNS-DZ1009-V1.0

Request A Quote

Product Details

Type:

USB Camera Module

Sensor:

IMX317 1/2.5 Inch

Resolution:

8MP 3840*2160

Dimensions:

Customizable

Frame Rate:

30FPS

Lens FOV:

82°(optional)

Interface:

USB

Highlight:

8MP USB camera module

4K 30FPS USB camera

IMX317 sensor camera module

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiable

Packaging Details

Tray+Anti-static bag in carton box

Delivery Time

2-3weeks

Payment Terms

T/T

Supply Ability

500000 pieces/month

USB2.0 Camera Module OV9782 720P 120fps for Barcode Scanning

Get Best Price

video

IMX317 USB Camera Module 8MP 4K 30FPS Compact Design

Get Best Price

video

8MP IMX317 USB Camera Module 4K 30FPS

Get Best Price

video

IMX317 USB Camera Module 8MP 4K 30FPS Fixed Focus

Get Best Price

+8618075543558

sales@sinoseen.com

Contact Now

Product Description

Sinoseen USB Camera Module with 8MP IMX317 Sensor 4K 30FPS

Key Features

High-resolution 8MP IMX317 CMOS sensor (1/2.5 inch)
4K Ultra HD video at 3840×2160 resolution
Smooth 30 frames per second performance
Compact and customizable dimensions
Fixed-focus design for simplified integration
USB 2.0 interface for plug-and-play functionality
Wide 82° field of view (optional)
Compatible with Windows, Linux, Mac OS, and Android

Product Overview

The Sinoseen SNS-DZ1009-V1.0 Camera Module delivers exceptional 4K video performance for digital cameras, dash cams, sports cameras, and industrial applications. Featuring Sony's premium IMX317 sensor, this module captures crisp, detailed images at 30fps, overcoming the limitations of traditional modules with poor image quality or low frame rates.

The fixed-focus design simplifies camera structure while maintaining excellent image quality, ideal for applications where working distance is known. The USB interface enables easy integration with various host devices, from security systems to industrial automation equipment.

Technical Specifications

Module	SNS-DZ1009-V1.0
Sensor	IMX317 CMOS
Image sensor size	1/2.5 inch
Resolution	8MP (3840×2160)
Pixel Size	1.62μm×1.62μm
Frame rate	30fps
Focus type	Fixed focus
Interface	USB 2.0
Video output	MJPG/YUV
Output formats	RAW Bayer 10bits
Operating temperature	0°C to 60°C
Storage temperature	-20°C to 70°C
Supported OS	Windows XP/Vista/7/8/10, Linux (UVC), Mac OS X 10.4.8+, Android 4.0+

Product Images

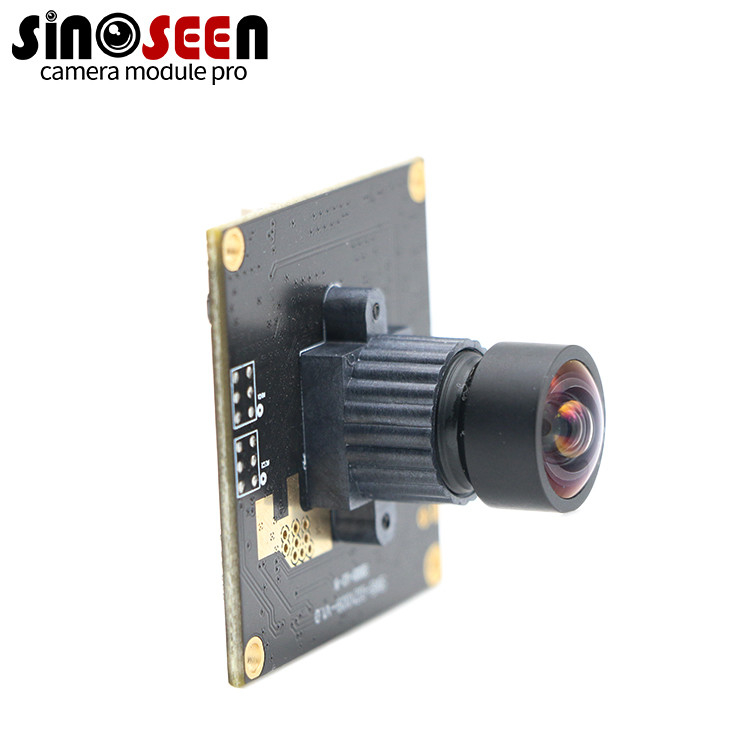

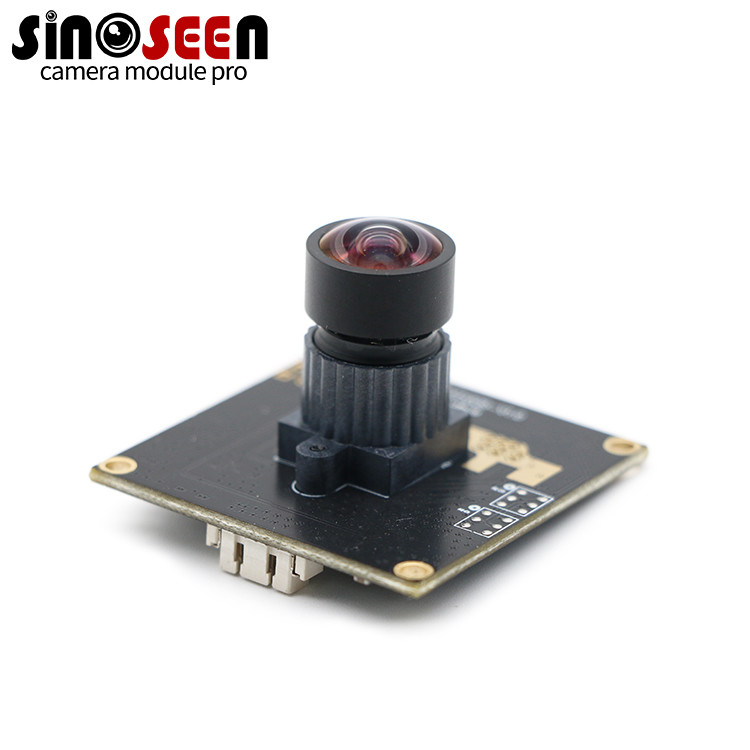

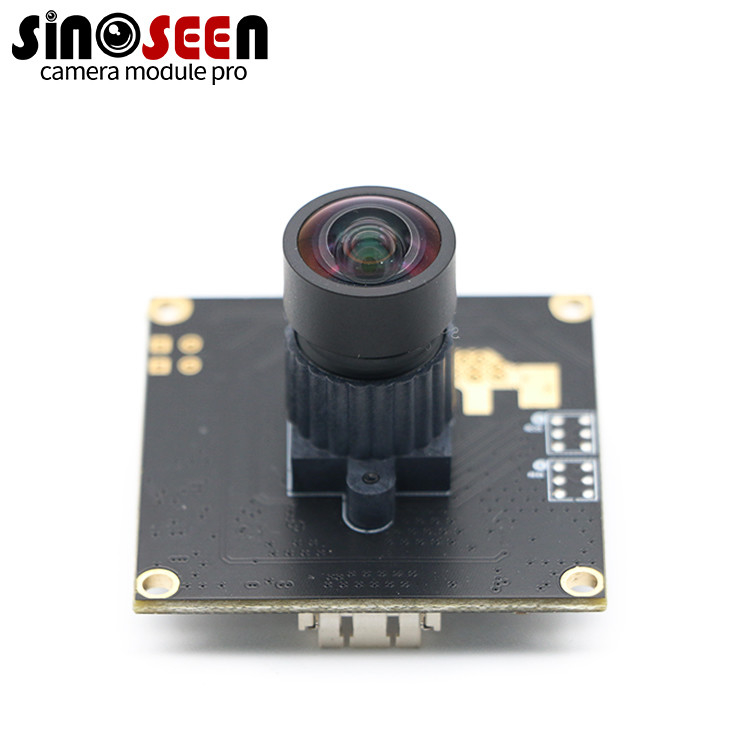

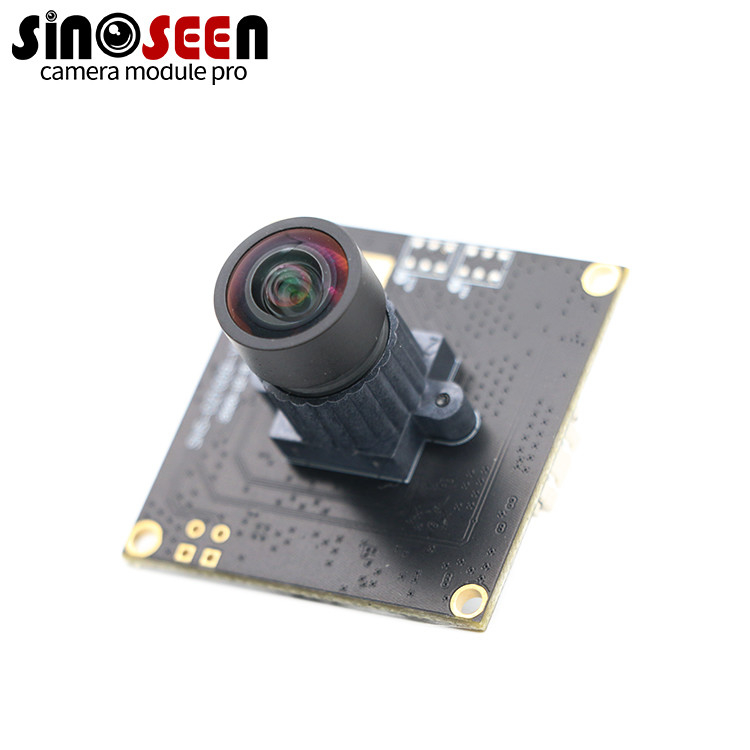

Front View

Side View

Top View

Connection Interface

In Use

Applications

Ideal for digital cameras, dash cams, sports cameras, security surveillance systems, industrial automation, and any application requiring reliable 4K video capture with easy USB integration.
