IMX317 USB Camera Module 8MP 4K 30FPS Fixed Focus

IMX317 USB Camera Module 8MP 4K 30FPS Fixed Focus

Place of Origin:

Shenzhen,China

Brand Name:

Sinoseen

Certification:

RoHS

Model Number:

SNS-DZ1009-V1.0

Contact Us
Request A Quote
Product Details
Type:
USB Camera Module
Sensor:
IMX317 1/2.5 Inch
Resolution:
8MP 3840*2160
Dimensions:
Customizable
Frame Rate:
30FPS
Lens FOV:
82°(optional)
Interface:
USB
Payment & Shipping Terms
Minimum Order Quantity
3
Price
negotiable
Packaging Details
Tray+Anti-static bag in carton box
Delivery Time
2-3weeks
Payment Terms
T/T
Supply Ability
500000 pieces/month
Product Description
Sinoseen IMX317 CMOS Sensor Camera Module - The Ultimate Choice for 4K Clarity and Seamless Integration with USB Interface
Product Attributes
Type USB Camera Module
Sensor IMX317 1/2.5 inch
Resolution 8MP 3840*2160
Dimensions Customizable
Frame Rate 30FPS
Lens FOV 82° (optional)
Interface USB
Product Description

Still searching for a camera that offers both 4K clarity and high flexibility across various application scenarios? The Sinoseen SNS-DZ1009-V1.0 Camera Module provides ultimate 4K clarity, making it your ideal versatile solution for multiple scenarios.

It features an IMX317 CMOS sensor, supporting 3840 x 2160 4K Ultra HD video with a smooth output of 30 frames per second. This completely addresses the shortcomings of traditional modules in detail capture and motion fluidity. Its fixed-focus design further simplifies integration, enabling reliably clear imaging without complex focusing, effectively reducing design and maintenance costs.

This module's USB interface offers unparalleled plug-and-play convenience, allowing seamless integration into digital cameras, dash cams, sports cameras, security surveillance systems, and even industrial equipment. Whether you need to record high-quality videos for outdoor activities, provide detailed security footage for vehicles, or deliver precise visual feedback for production lines, the SNS-DZ1009-V1.0 can meet your needs.

Specifications
Module SNS-DZ1009-V1.0
Sensor IMX317 CMOS
Image sensor size 1/2.5 inch
Pixel 8MP
Most effective pixels 3840*2160
Pixel Size 1.62um*1.62um
Frame rate 30fps
Focus type Fixed focus
Output interface USB2.0
Video output MJPG/YUV
Output formats RAW Bayer 10bits
Max S/N ratio TBD
Dynamic TBD
Storage temperature -20°C to 70°C
Operating temperature 0°C to 60°C
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

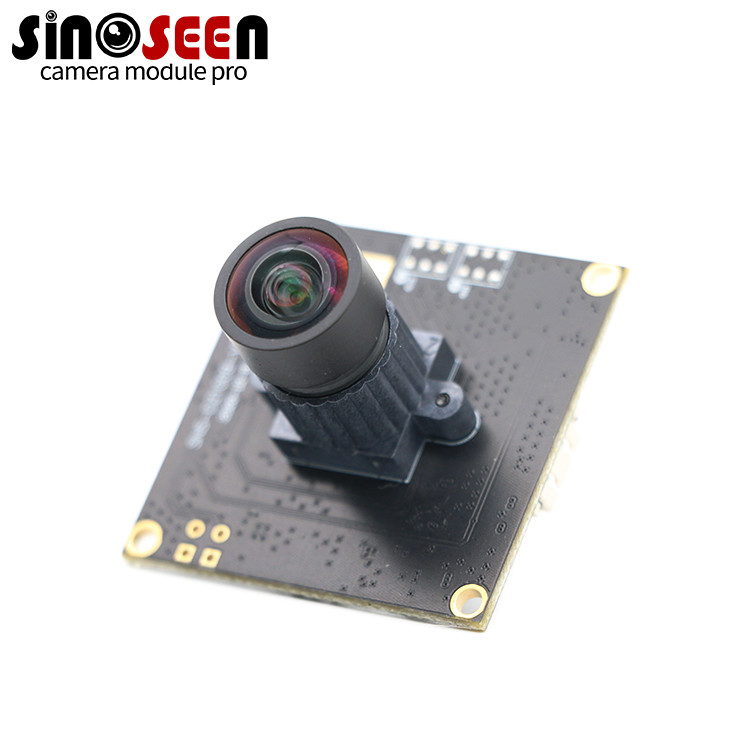

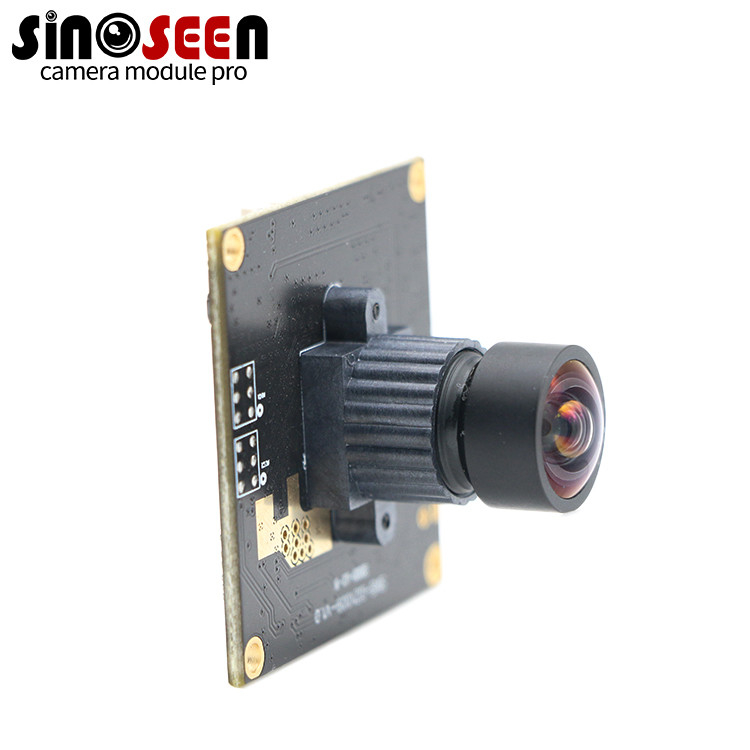

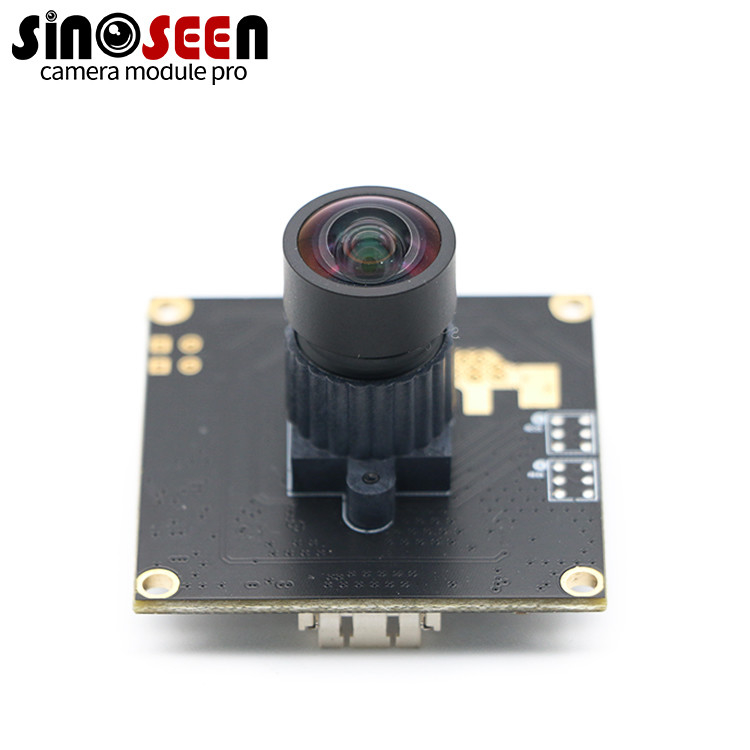

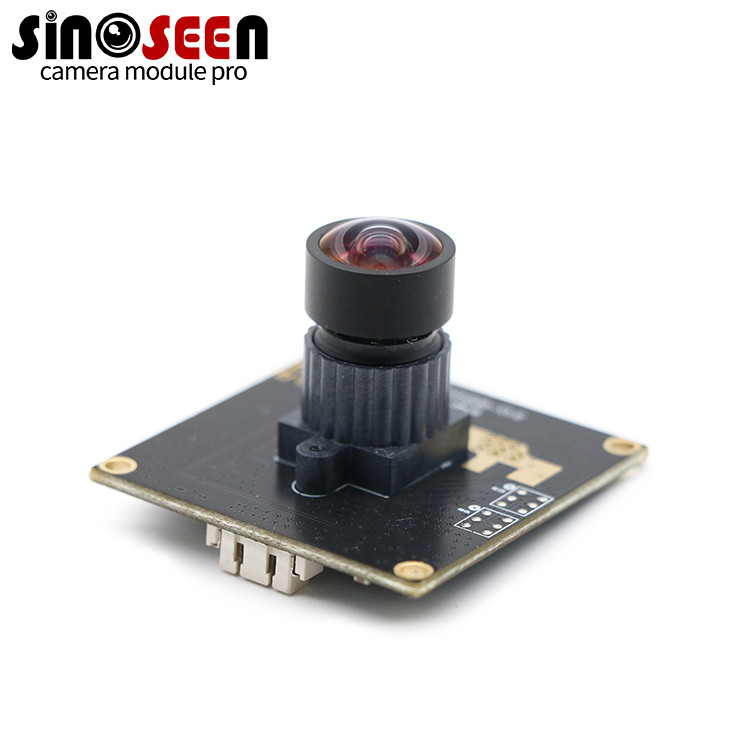

Product Images
