200W 1080P AR0234 Global Exposure Autofocus USB High-Speed Snapshot Camera Module
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM1045-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2MP Camera Module | Sensor: | 1/2.6'' |
|---|---|---|---|
| Resolution: | 1920(H) X 1080(V) | Dimensions: | (customizable) |
| Pixel Size: | 3.0μm X 3.0μm | Focus Type: | Auto Focus |
| Interface: | USB2.0 | Feature: | HD |
| High Light: | Autofocus USB Camera Module,AR0234 USB Camera Module,Snapshots OEM Camera Modules |
||
Product Description

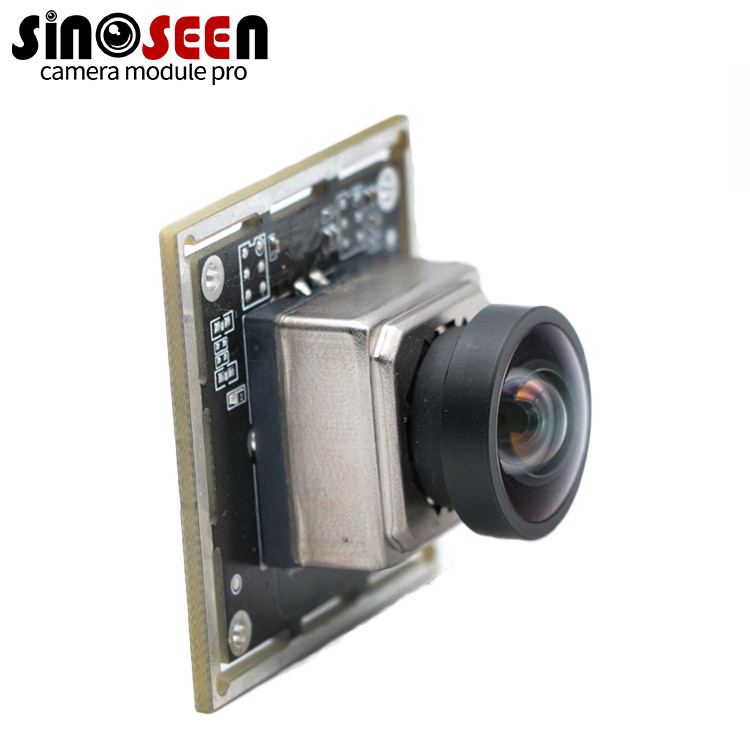

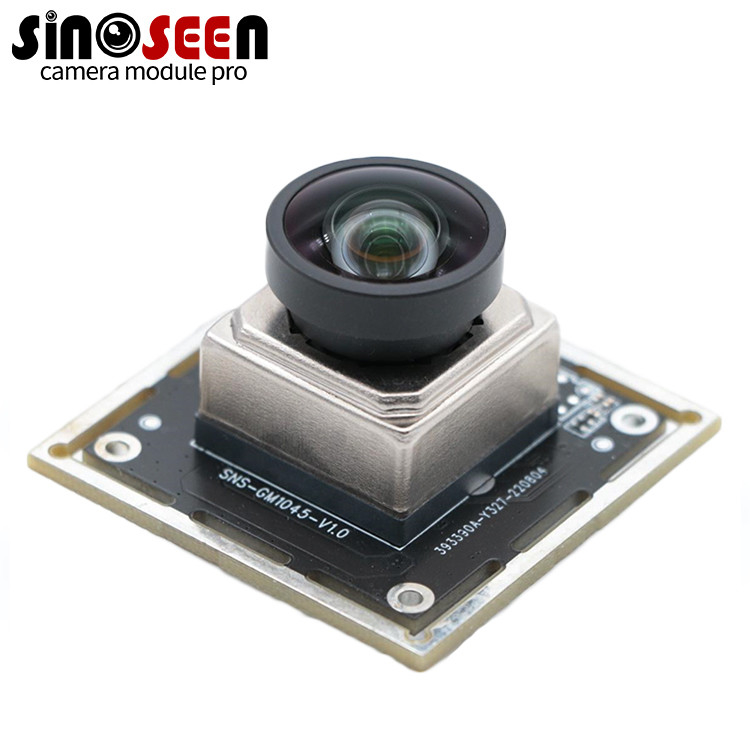

AR0234 1080P Global Exposure autofocus USB Camera Module for High Speed Snapshots
1080p autofocus usb camera module
We introduce a USB2.0 camera module with AR0234CMOS sensor, which can autofocus and is designed for a variety of applications including machine vision cameras, augmented reality (AR)/virtual reality (VR)/mixed reality (MR) head-mounted displays , Autonomous Mobile Robots (AMRs) and barcode readers. It can run at up to 120 frames per second (fps), capturing both 1080p video and single-frame images. Use this 2-megapixel sensor with industry-leading shutter efficiency to minimize frame-to-frame distortion in high-speed scenes and reduce motion artifacts encountered with other image sensors for crisp images. The module's innovative pixel architecture provides the high dynamic range required to support a wide range of lighting conditions. Low noise and improved low-light response make it suitable for industrial applications such as autonomous mobile robots and machine vision cameras, and the extended operating temperature range enables deployment in challenging outdoor conditions. Other advanced features include: Programmable ROI with on-chip histogram, automatic exposure control and 5 x 5 statistics engine, fully integrated strobe illumination control, flexible row and column skip modes, and horizontal and vertical mirroring, windowing and pixels merge.
Specification
|
Model No |
SNS-GM1045-V1.0 |
|
Sensor |
1/2.6’’ |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Power supply requirement |
AVDD28: 2.7~3.3V(Typ.2.8V) |
|
DVDD18: 1.15~1.3V(Typ.1.2V) |
|
|
IOVDD: 1.7~3.0V(Typ.1.8V) |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Storage temperature |
0~60℃ |
|
Operating temperature |
-20~80℃ |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
