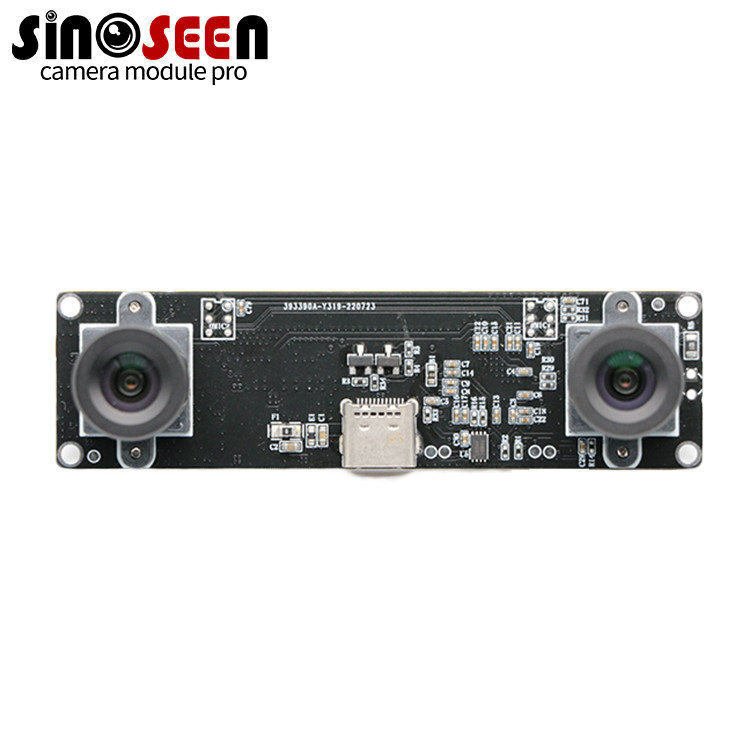

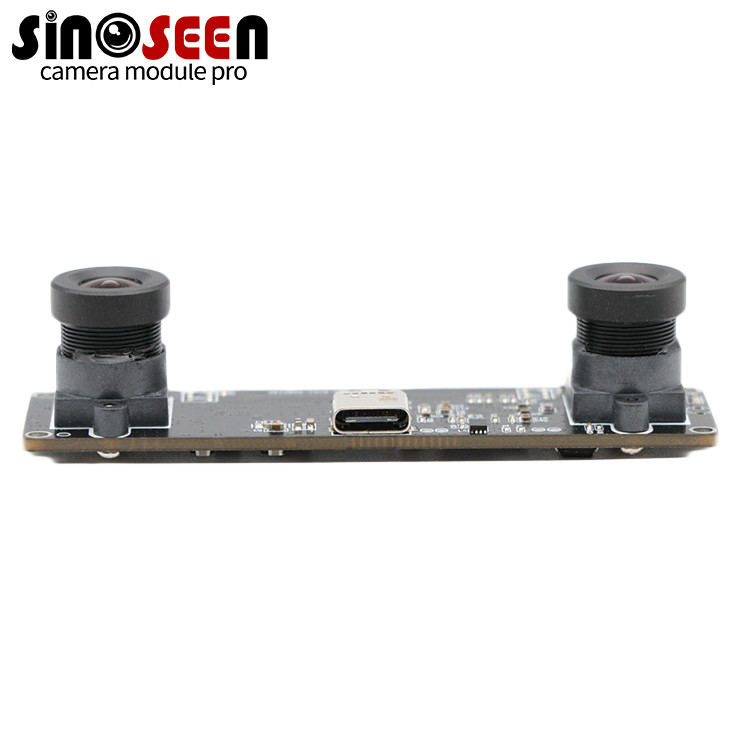

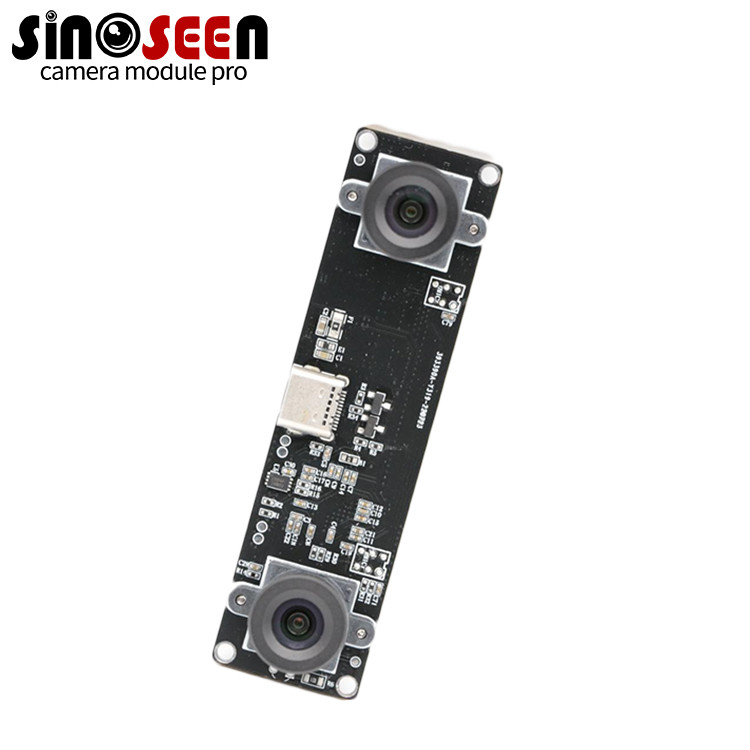

Dual Lens Camera Module For VR / AR Shooting
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-SM1034-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | Dual Lens Camera Module | Sensor: | 1/2.7" OV2735 |
|---|---|---|---|
| Resolution: | 2MP 1920(H) X 1080(V) | Dimensions: | (customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Dual Lens |
| High Light: | Sync Vibration Dual Lens Camera Module,3D Calibration Dual Lens Camera Module,AR Shooting Dual Lens Camera Module |
||
Product Description
Binocular Sync Vibration Camera 1080P 60FPS 3D Calibration for VR/AR Shooting
This is a full featured HD 1080p/720p camera module with OV2735 sensor. Refers to devices that support IP cameras, HD analog cameras, or 1080p video capture at 30fps. Support low power consumption mode, maintain stable image quality in the operating temperature range of 0"C to 60%C, and significantly reduce power consumption. This module can be programmed to control: gain, exposure, frame rate, image size, horizontal mirroring, Vertical flip, crop and window.
| Active array size | 1920(H) x 1080(V) |
| Shutter type | Electronic rolling shutter (ERS) |
| Optical format | 1/2.7-inch |
| Lens chief ray angle | 17 degree |
| ADC | 10-bit |
| Sensitivity | 5800 mV/Lux-sec |
| SNRmax | TdB |
| Dynamic range | TdB |
| Scan mode | Progressive scan |
| Input clock | Max 50MHz |
| Pixel clock | Max 148.5MHz |
| Max. frame rate |
1080p: 1920x1080 Linear@ 60fps 1080p: 1920x1080 HDR+LTM @30fps |
| Supply voltage |
Analog: 3.3 V Digital: 1.2 V I/O: 1.8V / 3.3V |
| Power consumption |
75mW@1080p30 (MIPI) 54.5mW@1080p30 (DVP w/o I/O) 124mW@HDR-LTM1080p30 (MIPI) 107mW@HDR-LTM 1080p30 (DVP w/o I/O) |
| Operating temperature | 0～60℃ |
