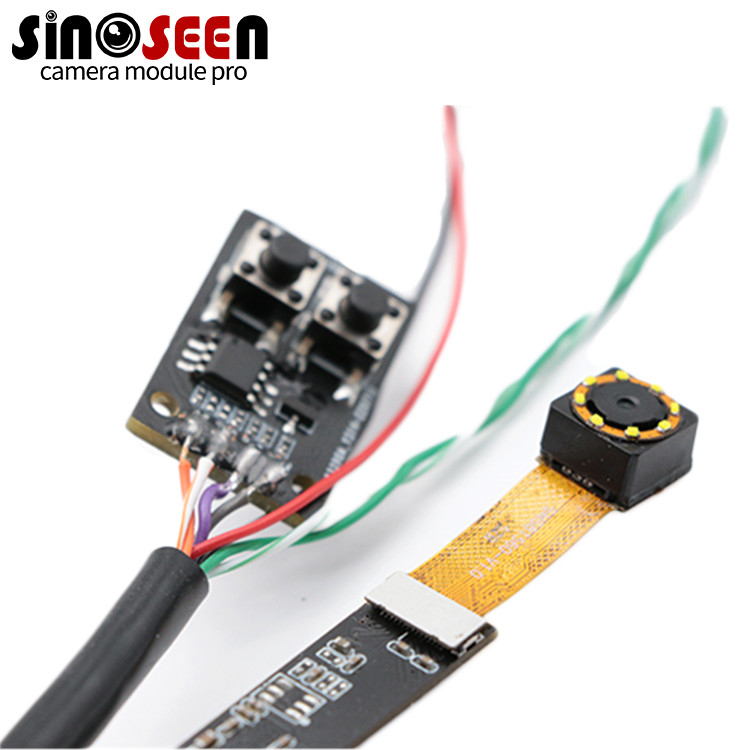

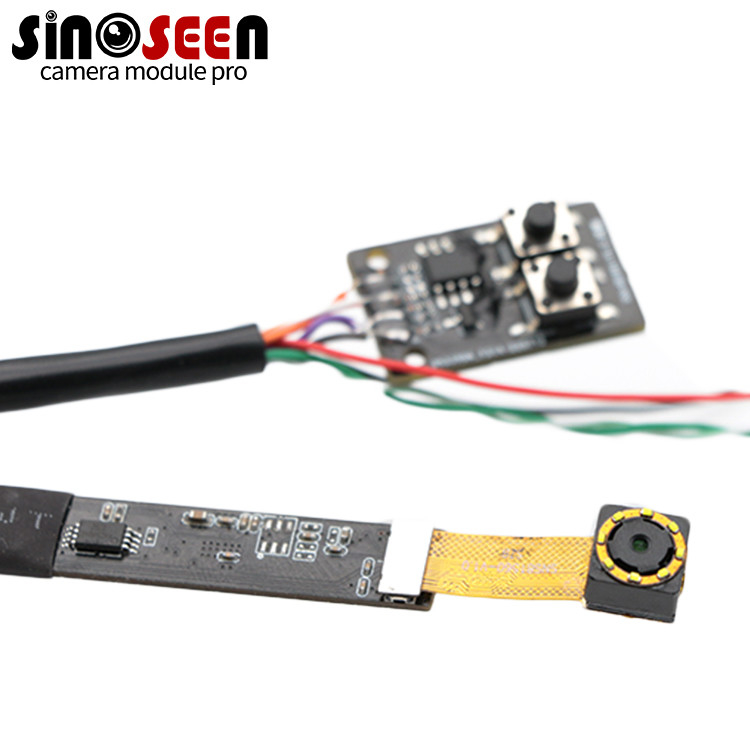

8mp Usb Camera Module With LED Fill Light

8mp Usb Camera Module With LED Fill Light

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-DZ1041-V1.0

Payment & Shipping Terms:

Minimum Order Quantity: 5
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 8mp Camera Module Sensor: 1/3.2'' IMX179
Resolution: 3264(H) X 2448(V) Dimensions: (customizable)
Lens FOV: 100°(optional) Focus Type: Fixed Focus
Interface: USB3.0 Feature: 4K
High Light:

Oem 8mp Usb Camera Module


Imx179 8mp Usb Camera Module


Industrial Endoscopy OEM Camera Modules

Product Description

oem hd imx179 8mp usb camera module with LED fill light for industrial endoscopy


* 8 million pixels, using SONY IMX179 CMOS image sensor

* High quality image, high sensitivity, low power consumption, low current

* High resolution, max resolution 3264X2448

*With LED fill light, you can press the button to take pictures and change the imaging direction

*For industrial inspection and industrial endoscopy Highest Frame Rate - 30 fps at 1024*768 resolution

*UVC for Win XPWin7Win8AndroidLinuxMac OS

*Compliant with UVC standard, no driver, plug and play, support Linux, Android, Mac and Windows, OTG



Model No



1/3.2’’ IMX179


8 Mega Pixel

Most effective pixels

3264(H) x 2448(V)

Pixel Size

1.4µm x 1.4µm

Compression format



see above

Frame rate

see above

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

S/N ratio


Dynamic range


Interface type


Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure


Focal length: 3.6mm


Lens Size: 1/3 inch


FOV: 95° (Optional)


Thread Size: M12*P0.5

Audio frequency




Power supply


Power consumption

DC 5V, 200mA

Main chip


Auto Exposure Control (AEC)


Auto White Balance (AEB)


Auto Gain Control (AGC)

Not Supported


90MM x 15MM (customizable)

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length


Support OS

Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
