Place of Origin:
Shenzhen,China
Brand Name:
Sinoseen
Certification:
RoHS
Model Number:
SNS-11558-v1.0

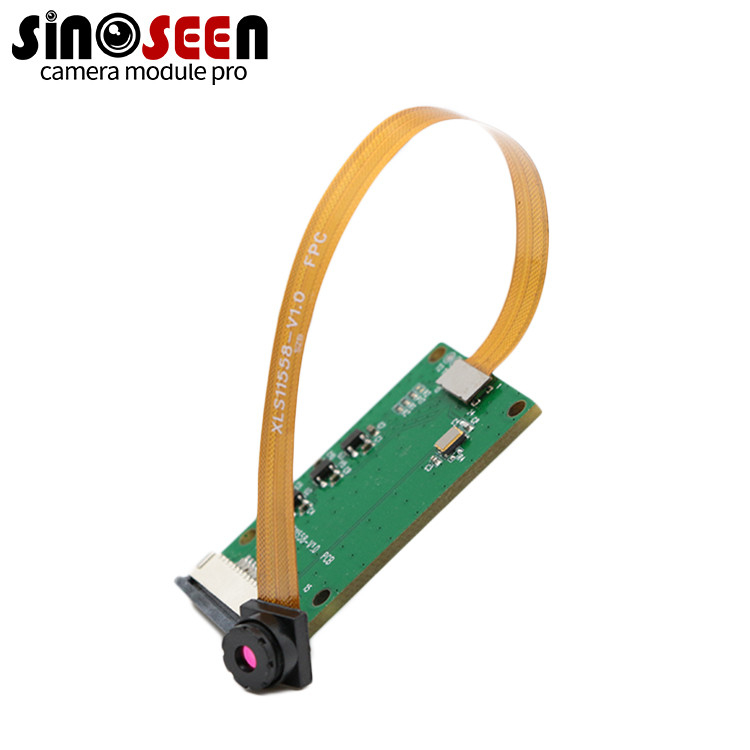

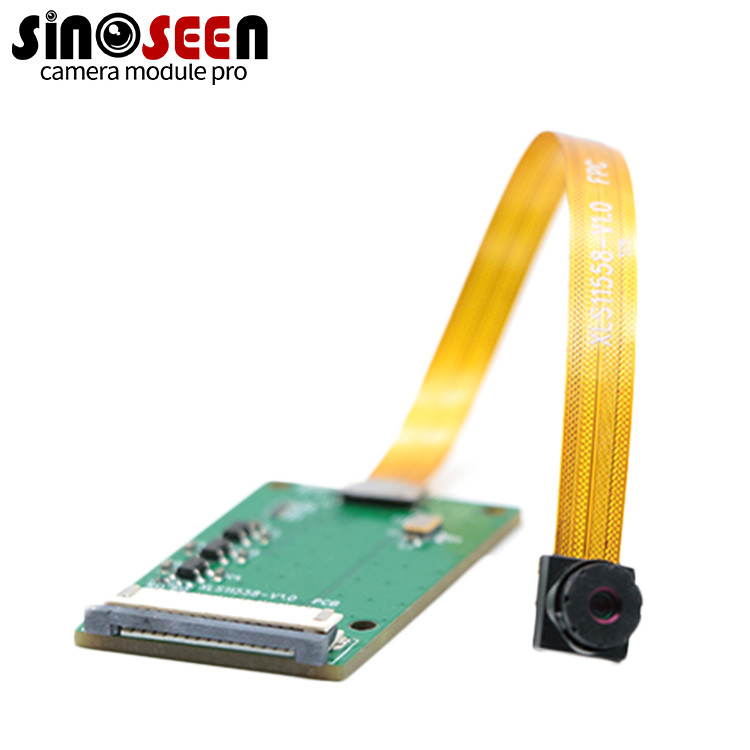

This is a dedicated camera module for Raspberry Pi. Use the OV9281 B&W sensor, a high-speed global shutter image sensor for accurate and fast capture of moving scenes at 720p resolution and 60 fps. This mod captures images at high frame rates, helping to minimize frame-to-frame distortion and reduce motion blur, while capturing fast-moving objects for smoother images and richer scene details.
And the module can bring 1-megapixel resolution to a variety of consumer and industrial computer vision applications, including augmented reality, virtual reality. Features best-in-class near-infrared quantum efficiency for high resolution and low latency requirements.
Specification
|
Model No |
SNS-11558-v1.0 |
|
Sensor |
1/4" Omnivision OV9281 CMOS |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280(H) x 800(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image area |
3896um(H) x 2453um (V) |
|
Compression format |
MJPG / YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Global Shutter |
|
Chroma |
B&W, Monochrome |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
68dB |
|
Dark current |
80e-/sec |
|
Interface type |
High speed USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
|
Lens Size: 1/4 inch |
|
|
FOV: 60° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control |
Support |
|
Auto White Balance |
Support |
|
Auto Gain Control |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
