Place of Origin:
Shenzhen,China
Brand Name:
Sinoseen
Certification:
RoHS
Model Number:
UX-ZOOM20-4KYS
camera module 20x zoom

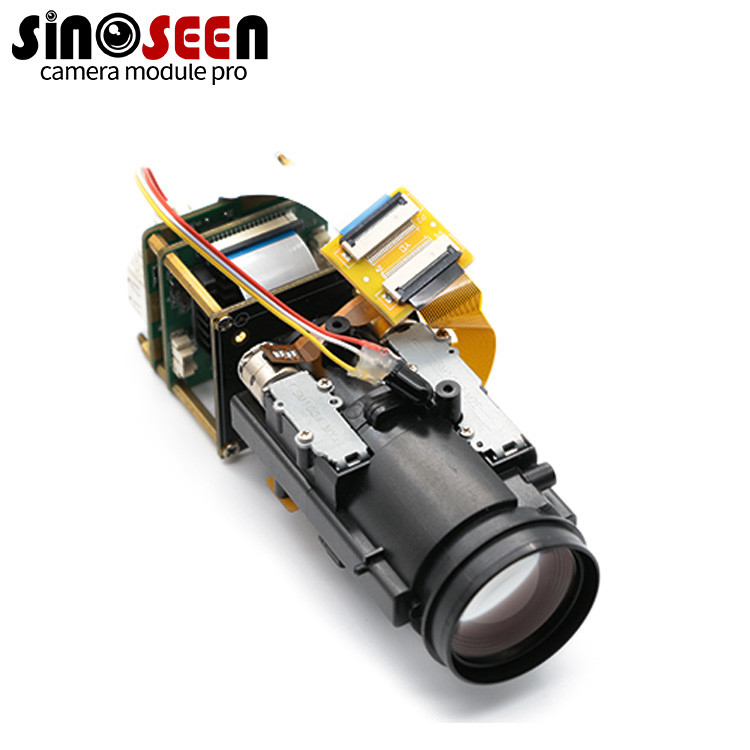

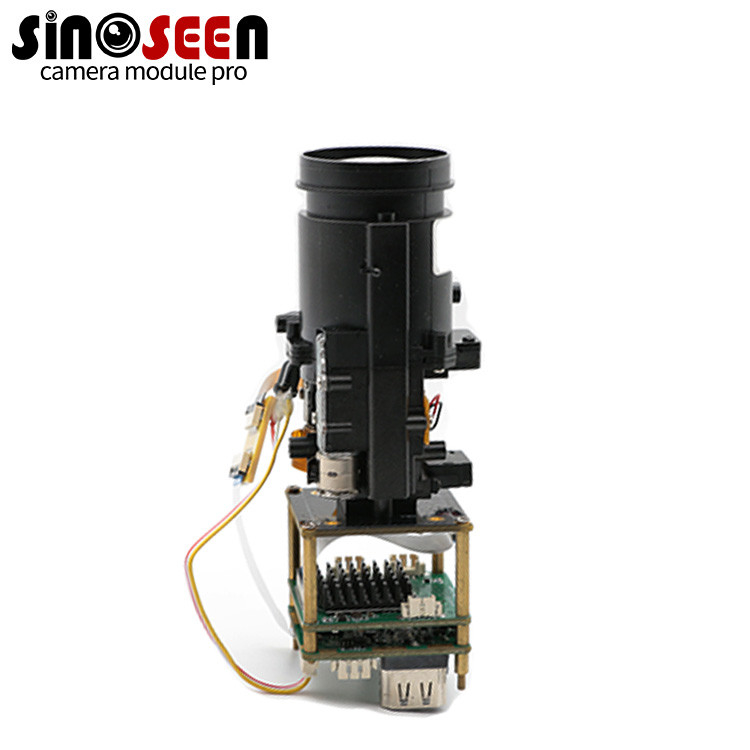

This is a USB camera module with Sony IMX415 8 million sensors. With a 20x optical zoom and a sensor size of 1/2.8, it is easier to obtain greater depth of field in small sizes. The focusing system can be automatic or manual, with a maximum resolution of 3840 * 2160 and a full resolution output of 30FPS. The high dynamic and high-definition features can perfectly restore the true appearance of the screen. We can adjust the size and shape according to your requirements; In addition, we have various FOVs from 40 ° to 200 °. IMX415USB camera module is usually widely used in high-definition photography, surveillance camera, FA camera, industrial camera, video surveillance, video conference integration, video teaching, Internet of Things, aerial camera drone, two-dimensional code recognition and other fields.
Specification:8mp hdr USB2.0 camera module
| Model No | UX-ZOOM20-4KYS |
| Sensor | 1/2.8’’ SONY IMX415 CMOS |
| Pixel | 8 Mega Pixel |
| Most effective pixels | 3840(H) x 2160(V) |
| Pixel Size | 1.45µm x 1.45µm |
| Image area | 3864(H) x 2192(V) |
| Compression format | MJPEG / YUV2 (YUYV) |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Auto focus/ Manual focus |
| Chroma | Color, RGB |
| Clock Frequency | 6 to 72 MHz |
| Microphones | Built-in |
| Interface type | USB2.0 |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Lens | Focal length: 3.6mm |
| Lens construction: 5E+IR | |
| D FOV: 100 degree | |
| Thread Size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 260mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Dimension | Customizable |
| Storage temperature | -40˚C to 85 ˚C |
| Operating temperature | -30˚C to 85 ˚C |
| USB cable length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
