IMX415 CMOS Auto Focus 30fps USB Camera Module For Video Conference
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1049-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 8mp Camera Module | Sensor: | 1/2.8'' SONY IMX415 CMOS |
|---|---|---|---|
| Resolution: | 8MP 3840(H) X 2160(V) | Dimensions: | (customizable) |
| Lens FOV: | 100°(optional) | Focus Type: | Auto Focus |
| Interface: | USB2.0 | Feature: | HDR |
| High Light: | IMX415 USB Camera Module,IMX415 CMOS Camera Module,30fps Auto Focus Camera Module |
||
Product Description

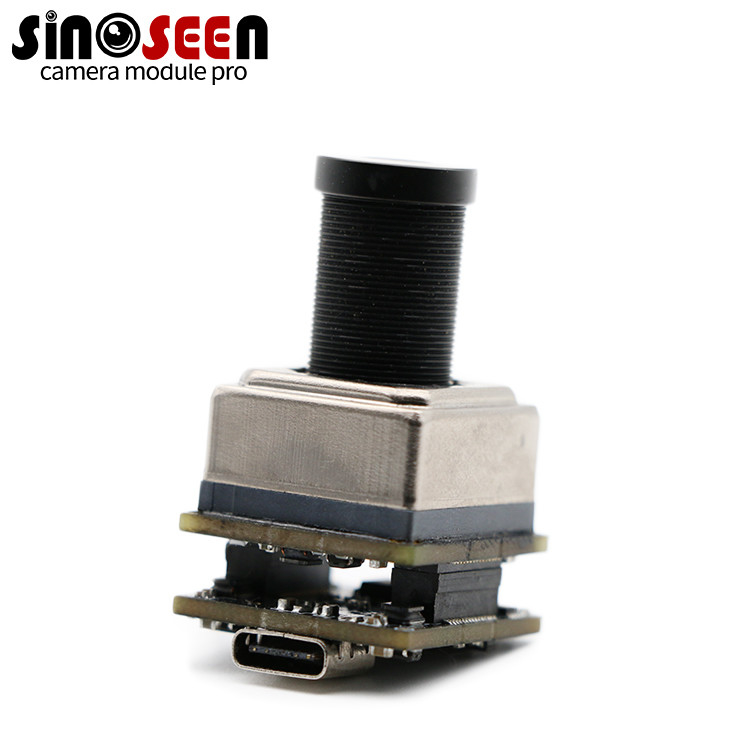

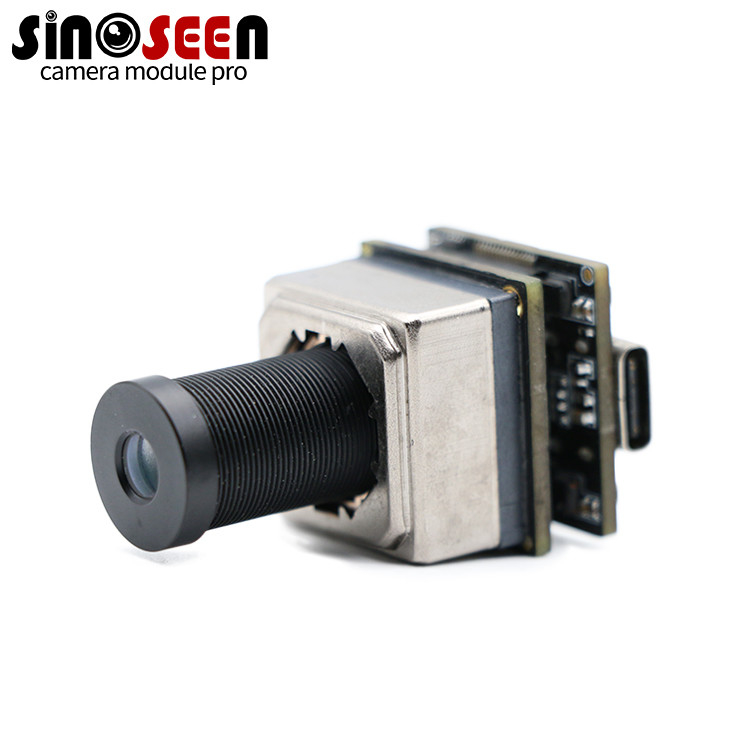

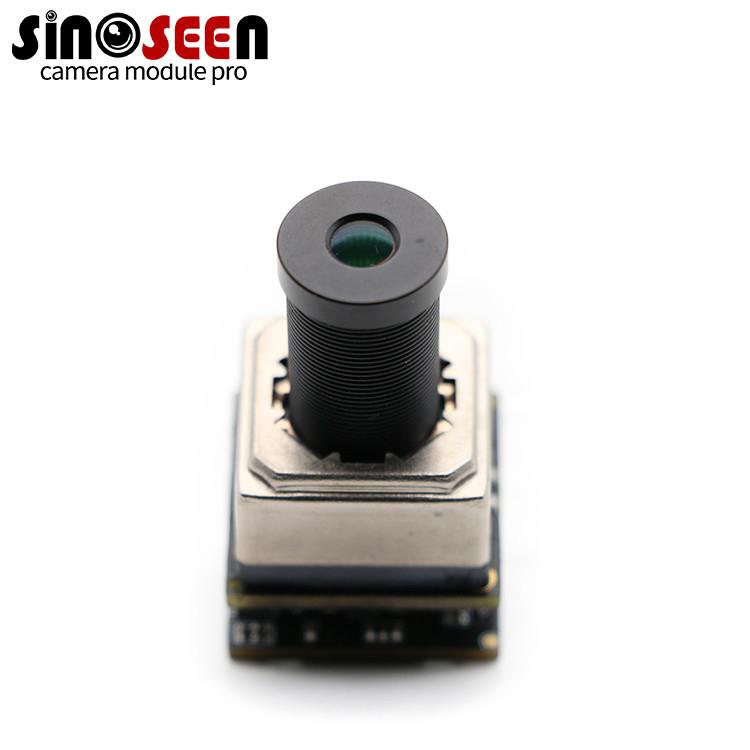

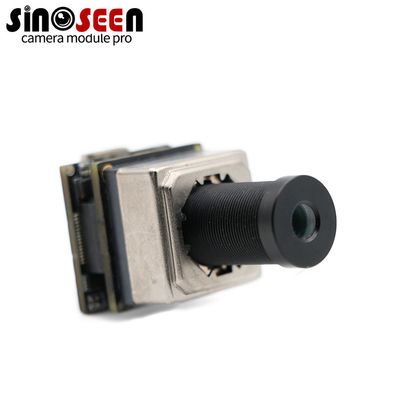

IMX415 CMOS Auto Focus 30fps USB Camera Module For Video Conference
imx415 usb camera module
This is a 4k 8mp USB camera module. It features the world's smallest sensor size at just 1/2.8 inch and is based on stacked CMOS technology. It also comes with two digital microphones. With the support of new technology, the module can achieve better photosensitive effect in a smaller area. In low-light conditions, its actual performance is 3.3 times that of the previous generation. And can take sharper images in low light environments. In the only dark light environment, you can see that more picture details are preserved in this picture, and the noise control is also significantly improved. It can also be used for face recognition, security monitoring, video conferencing, video education booths, etc.
| Model No | SNS-DZ1049-V1.0 |
| Sensor | 1/2.8’’ SONY IMX415 CMOS |
| Pixel | 8 Mega Pixel |
| Most effective pixels | 3840(H) x 2160(V) |
| Pixel Size | 1.45µm x 1.45µm |
| Image area | 3864um (H) x 2196um (V) |
| Compression format | MJPEG / YUV2 (YUYV) |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| Chroma | Color, RGB |
| Clock Frequency | 6 to 72 MHz |
| Microphones | Built-in |
| Interface type | USB2.0 |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Lens | Focal length: 3.6mm |
| Lens construction: 5E+IR | |
| D FOV: 100 degree | |
| Thread Size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 260mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Dimension | Customizable |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
