4MP Raspberry Pi Camera Module with IMX482 Sensor
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS、ISO9001、CE |
| Model Number: | SNS21853-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100usd or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type:: | Raspberry PI Camera Module | Sensor:: | IMX482 |
|---|---|---|---|
| Resolution:: | 640H X 488V | Dimensions:: | 38mmx38mm (compatible With 32mmx32mm) |
| Highlight: | Multi-Platform Raspberry Pi Camera Module,H.265 Encoding Raspberry Pi Camera Module,4MP Raspberry Pi Camera Module |
||
Product Description

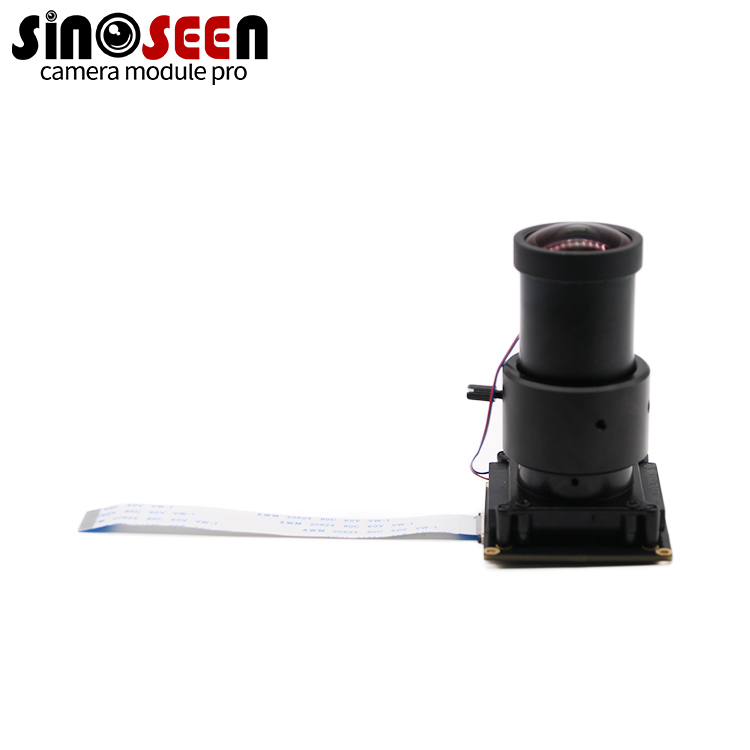

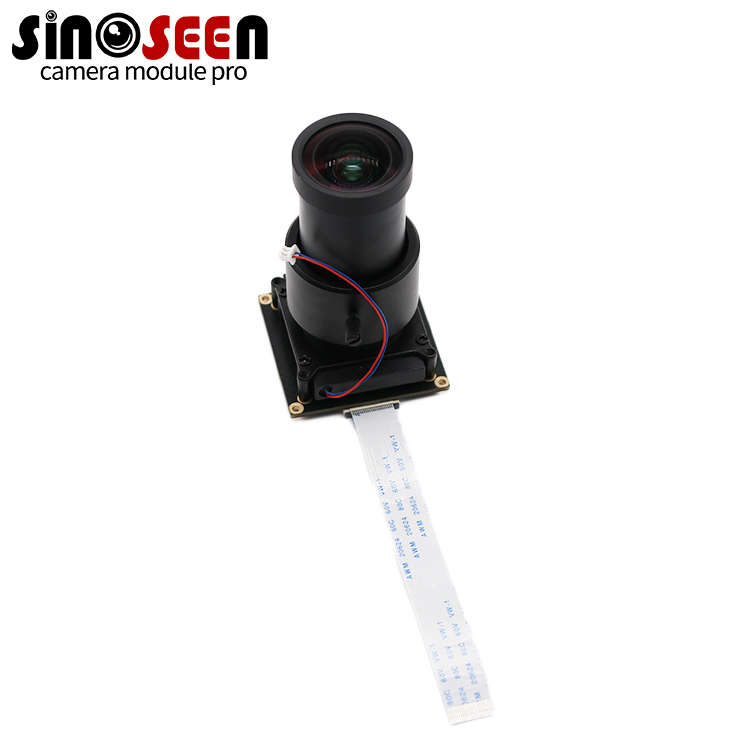

4MP Raspberry Pi Camera Module with IMX482 Sensor
Product Overview
The Sinoseen SNS-21853-V1.0 camera module features a 4-megapixel 1/1.8-inch progressive scan CMOS sensor (IMX482) with HiSilicon DSP (Hi3516DV300) for superior image quality. With 120dB wide dynamic range (WDR) and 3D digital noise reduction, it delivers clear, detailed images in all lighting conditions.
Key Features
- 4MP high-definition imaging with IMX482 sensor for rich image details
- 120dB ultra-wide dynamic range for optimal performance in complex lighting
- Intelligent face recognition supporting detection, tracking and capture of up to 32 faces
- H.265+ efficient encoding with ROI enhancement for storage and bandwidth savings
- Multi-platform compatibility with Raspberry Pi, iPhone, Android and P2P cloud technology
Technical Specifications
| Attribute | Value |
|---|---|
| Type | Raspberry PI Camera Module |
| Sensor | IMX482 |
| Resolution | 640H x 488V |
| Dimensions | 38mmx38mm (compatible With 32mmx32mm) |
Camera Specifications
| Specification | Detail |
|---|---|
| Sensor Type | 1/1.8 inch progressive scan CMOS 4 megapixels SC4210 |
| Digital Signal Processor | Hi3516DV300 |
| Electronic Shutter | 1/12s ~ 1/8000s |
| Minimum Illumination | Color 0.005lux F1.7; B/W 0.001Lux F1.7 |
| Signal-to-Noise Ratio | ≥ 50dB (AGC off) |
| Day/Night Mode | Photosensitive detection/video detection/time detection |
| WDR | ≥ 120dB |
| 3DNR | 3DNR |
| Memory | 8Gb DDR |
| Flash | 128Mb SPI NAND Flash |
Compression Standards
| Type | Standard |
|---|---|
| Video Compression | H.265+/H.265/H.264/MJPEG |
| H.265 | Main outline |
| Video Bitrate | 32 Kbps ~ 16Mbps |
| Audio Compression | G.711a/G.711u/G.726 |
Smart Features
| Feature | Capability |
|---|---|
| Smart Coding | Low bit rate, low latency, ROI enhancement encoding (supports 4 ROI areas) |
| Intelligent Detection | Occlusion, out-of-focus, brightness, color, sound, remaining, motion detection; virtual cordon, area intrusion |
| Intelligent Control | Alarm on/off, fault clearing, intelligent noise reduction |
