Raspberry Pi IMX482 Camera Module 4MP HD with 120dB WDR
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS、ISO9001、CE |
| Model Number: | SNS21853-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100usd or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type:: | Raspberry PI Camera Module | Sensor:: | IMX482 |
|---|---|---|---|
| Resolution:: | 640H X 488V | Dimensions:: | 38mmx38mm (compatible With 32mmx32mm) |
| Highlight: | Raspberry Pi IMX482 camera module,4MP HD Raspberry Pi camera,120dB WDR Raspberry Pi module |
||
Product Description
| Type: | Raspberry PI Camera Module |
| Sensor: | IMX482 |
| Resolution: | 640H x 488V |
| Dimensions: | 38mm x 38mm (compatible with 32mm x 32mm) |

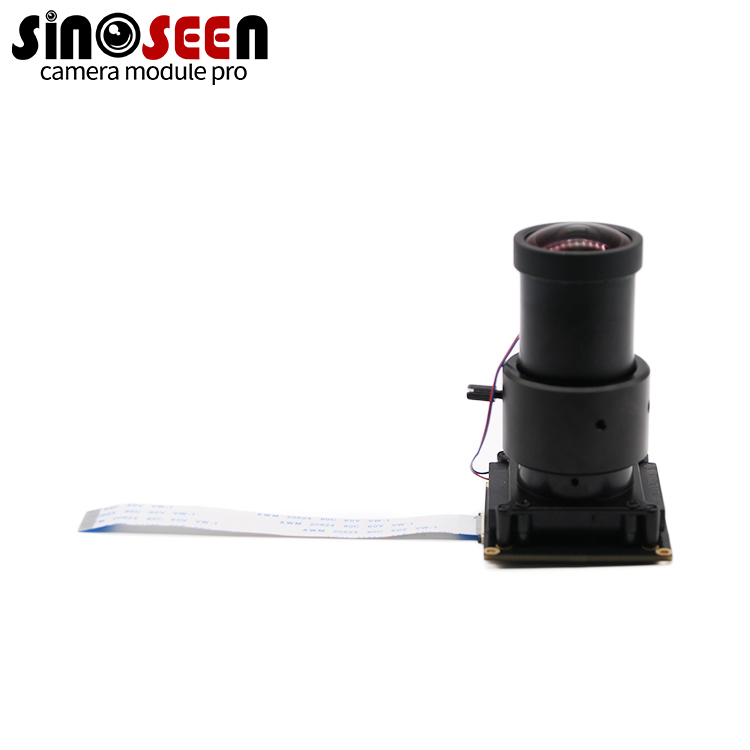

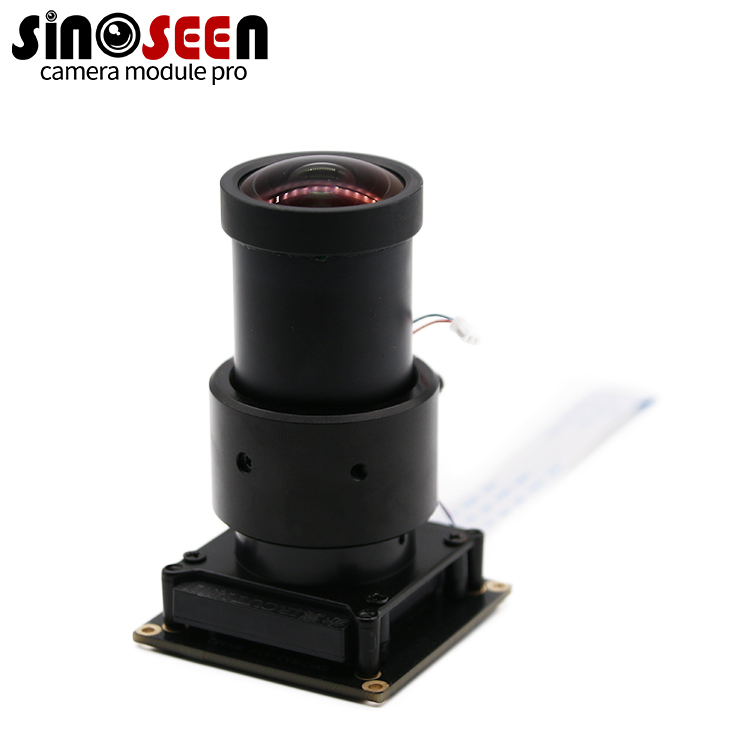

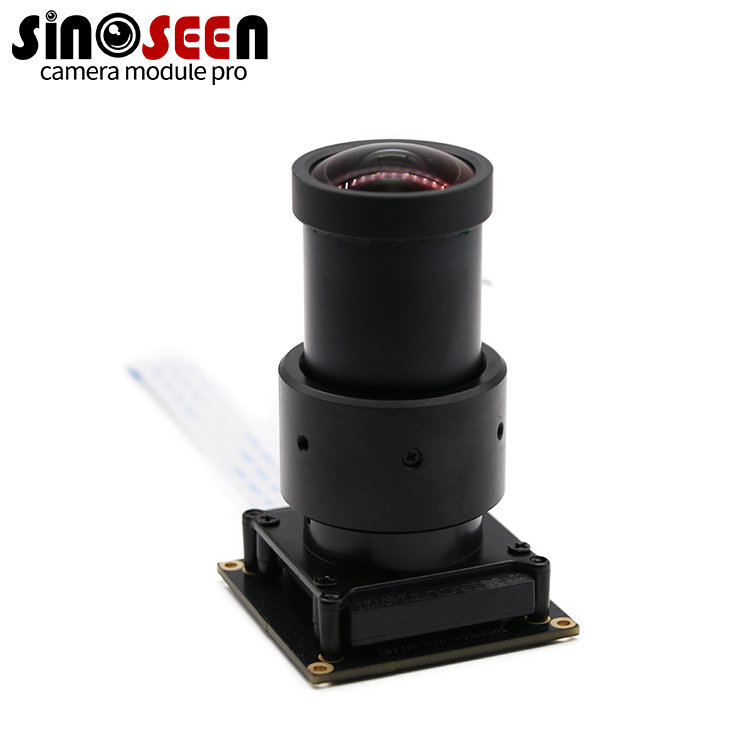

The Sinoseen SNS-21853-V1.0 camera module integrates a 4MP 1/1.8" SONY IMX482 progressive scan CMOS sensor with a HiSilicon Hi3516DV300 DSP to deliver outstanding image clarity. It offers 120dB wide dynamic range and 3D digital noise reduction, ensuring crisp, detailed visuals in both bright and low-light environments.
Designed for intelligent security, it supports up to 32-face detection, tracking, and capture per frame, with multiple capture modes and adjustable face exposure. H.265+ compression with ROI encoding minimizes storage use without sacrificing quality. Compact size options (38×38mm and 32×32mm) make it easy to integrate into various systems.
- 4MP HD Imaging - Sharp details with SONY IMX482 sensor
- 120dB WDR - Balanced exposure in high-contrast scenes
- Smart Face Recognition - Detects & tracks up to 32 faces
- H.265+ Compression - Saves bandwidth & storage
- Multi-Platform Support - Works with Raspberry Pi, iOS, Android, and P2P
| Sensor Type | 1/1.8 inch progressive scan CMOS 4 megapixels SC4210 |
| Digital Signal Processor | HiSilicon Hi3516DV300 |
| Electronic Shutter | 1/12s ~ 1/8000s |
| Minimum Illumination | Color 0.005lux F1.7; B/W 0.001Lux F1.7 |
| Signal-to-Noise Ratio | ≥ 50dB (AGC off) |
| WDR | ≥ 120dB |
| 3DNR | 3D Digital Noise Reduction |
| Video Compression | H.265+/H.265/H.264/MJPEG |
| Video Bitrate | 32 Kbps ~ 16Mbps |
| Maximum Image Size | 2560 × 1440 |
We offer OEM/ODM customization including sensor selection, lens options, firmware tuning, and size adaptation to meet specific project needs.
Shenzhen Sinoseen Technology Co., Ltd. specializes in OEM/ODM CMOS image processing solutions for industrial, security, AI, and consumer applications. Visit us at www.oemcameramodules.com.
