Sony IMX179 Sensor USB 3.0 Camera Module Auto Focus 4k Ultra HD
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM028M-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/3.2" IMX179 |
|---|---|---|---|
| Resolution: | 8MP 3264(H) X 2448(V) | Dimensions: | 38mmx38mm (customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Auto Focus |
| Interface: | USB3.0 | Feature: | Ultra HD |
| Highlight: | 38mm USB 3.0 Camera Module,8MP USB 3.0 Camera Module,8MP usb3 camera module |
||
Product Description
Sony IMX179 Sensor USB 3.0 Camera Module Auto Focus 4k Ultra HD
8MP USB3.0 Camera Module Auto Focus 4k Ultra HD lens with Sony IMX179 sensor
IMX179 Camera Module description

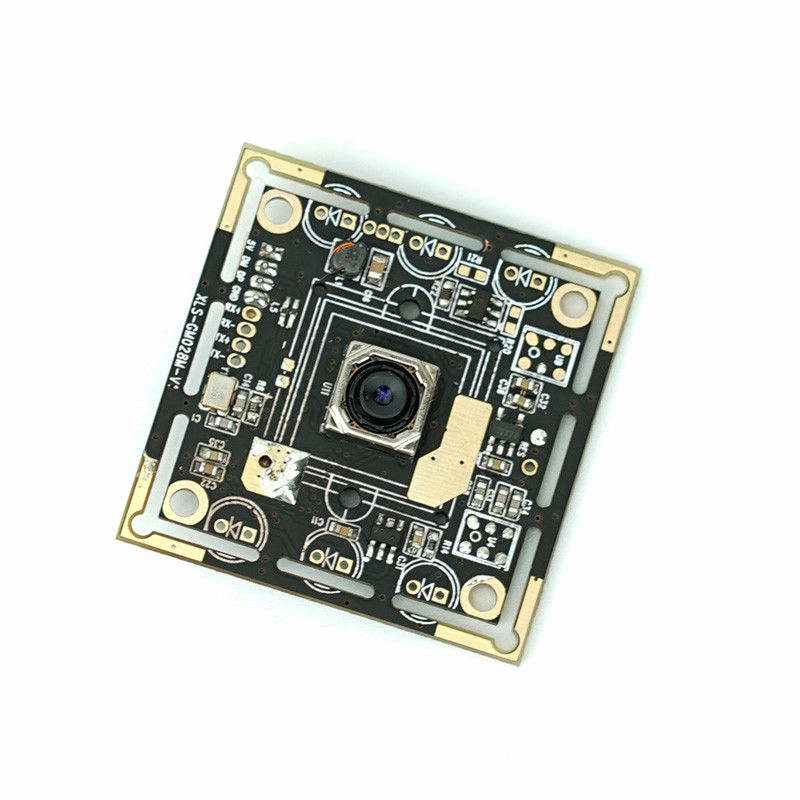

This is one of our best selling USB3.0 camera modules. It is autofocus with 8 megapixels IMX179 CMOS image sensor from SONY. The image quality is excellent and stable.
The module size is 38MMx38MM (compatible with 32MMx32MM), we can adjust the size and shape of the module according to your requirements;
It supports below frame rates:
MPEG
3264x2448@15fps； 2592x1944@15fps； 1920x1080@30fps； 1600x1200@30fps； 1280x720@30fps； 960x540@30fps； 848x480@30fps； 640x480@30fps； 640x360@30fps； 320x240@30fps；
YUYV2
3264x2448@2fps； 2592x1944@2fps； 1920x1080@5fps； 640x480@30fps； 320x240@30fps；
Specification
|
Model No |
SNS-GM028M-V1.0 |
|
Sensor |
1/3.2’’ IMX179 |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3264(H) x 2448(V) |
|
Pixel Size |
1.4µm x 1.4µm |
|
Compression format |
MJPG / YUY2 |
|
Resolution |
see above |
|
Frame rate |
see above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Auto/Fixed focus |
|
S/N ratio |
36dB |
|
Dynamic range |
60dB |
|
Interface type |
USB 3.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
|
Lens Size: 1/3 inch |
|
|
FOV: 90° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Support |
|
microphone |
Built-in |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Not Supported |
|
Dimension |
38MM x 38MM (32MM x 32MM) |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
|
WinXP/Vista/Win7/Win8/Win10 |
