SONY IMX179 USB2.0 8MP Camera Module Drive Free For High Speed Scanner
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-USB179SM-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/3.2" SONY IMX179 |
|---|---|---|---|
| Resolution: | 8MP 3264(H) X 2448(V) | Dimensions: | 58x28.7mm (customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | 4K |
| High Light: | USB2.0 8MP Camera Module,IMX179 8MP Camera Module,imx179 camera module |
||
Product Description
SONY IMX179 USB2.0 8MP Camera Module Drive Free For High Speed Scanner
UHD 8MP SONY IMX179 Sensor Drive Free USB Coms Camera Module For High Speed Scanner
8MP Camera Module

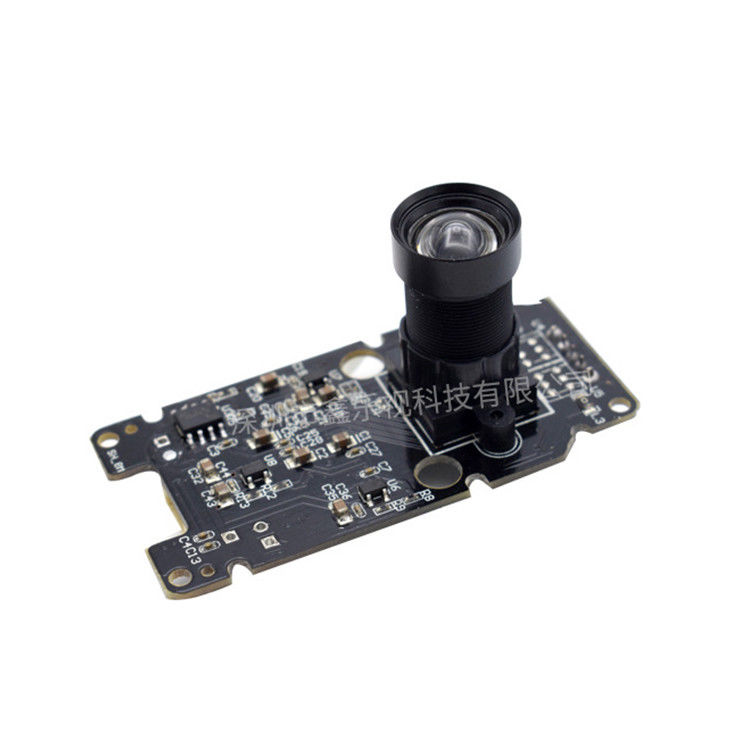

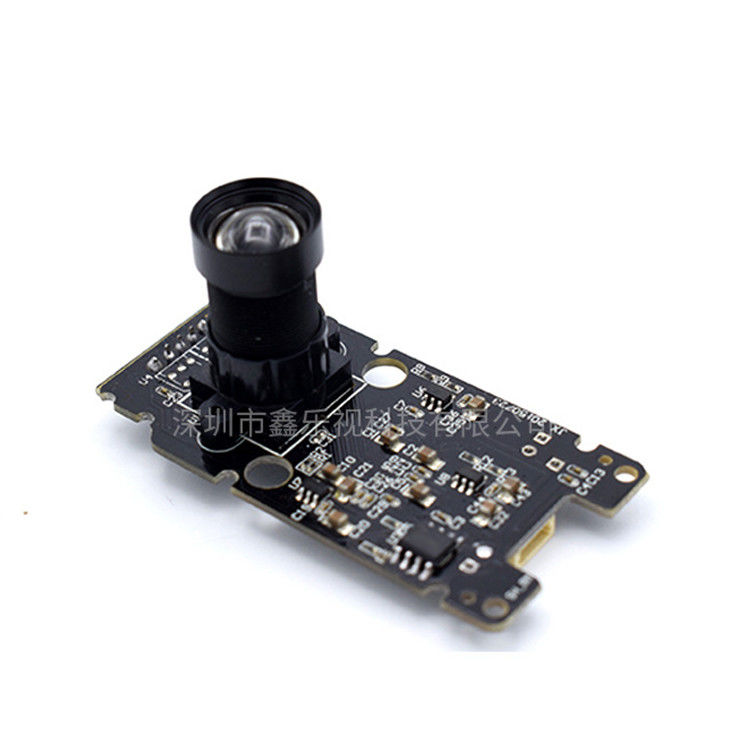

This is a 8MP USB camera module we made for high speed scanner,also called document scanner or book scanner.The image quality is very good and stable.Current design is fixed focus,we also have auto focus design for scanner application.
If your space is limited, we can also customize the size of the PCB according to your requirements. We will evaluate how small it can be according to your other requirements.You can also add LEDs and microphones according to your actual application.
It supports below frame rates:
MPEG
3264x2448@15fps； 2592x1944@15fps； 1920x1080@30fps； 1600x1200@30fps； 1280x720@30fps； 960x540@30fps； 848x480@30fps； 640x480@30fps； 640x360@30fps； 320x240@30fps；
YUYV2
3264x2448@2fps； 2592x1944@2fps； 1920x1080@5fps； 640x480@30fps； 320x240@30fps；
Specification
|
Model No |
SNS-USB179SM-V1.0 |
|
Sensor |
1/3.2’’ IMX179 |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3264(H) x 2448(V) |
|
Pixel Size |
1.4µm x 1.4µm |
|
Compression format |
MJPG / YUY2 |
|
Resolution |
see above |
|
Frame rate |
see above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
36dB |
|
Dynamic range |
60dB |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
|
Lens Size: 1/3 inch |
|
|
FOV: 90° (Optional) |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Support |
|
microphone |
Built-in |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Not Supported |
|
Dimension |
58x28.7MM(customizable) |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
|
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
