Auto Focus SONY IMX179 8mp USB Camera Module With Microphone And LED
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Sinoseen |
Certification: | RoHS |
Model Number: | SNS-PC708M-V1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 3 |
---|---|
Price: | negotiable |
Packaging Details: | Tray+Anti-static bag in carton box |
Delivery Time: | 2-3weeks |
Payment Terms: | T/T |
Supply Ability: | 500000 pieces/month |
Detail Information |
|||
Type: | USB Camera Module | Sensor: | 1/3.2" SONY IMX179 |
---|---|---|---|
Resolution: | 8MP 3264(H) X 2448(V) | Dimensions: | 50x8.5mm (customizable) |
Lens FOV: | 80°(optional) | Focus Type: | Auto Focus |
Interface: | USB2.0 | Feature: | Tiny Size |
Highlight: | RoHS IMX179 USB Camera Module,IMX179 USB Camera Module,8mp IMX179 Tiny Camera Module |
Product Description

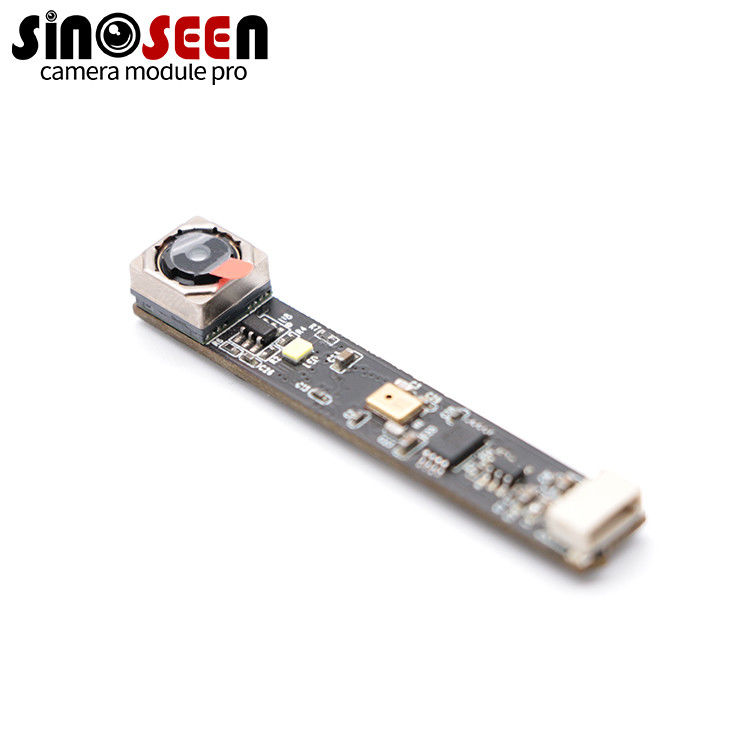

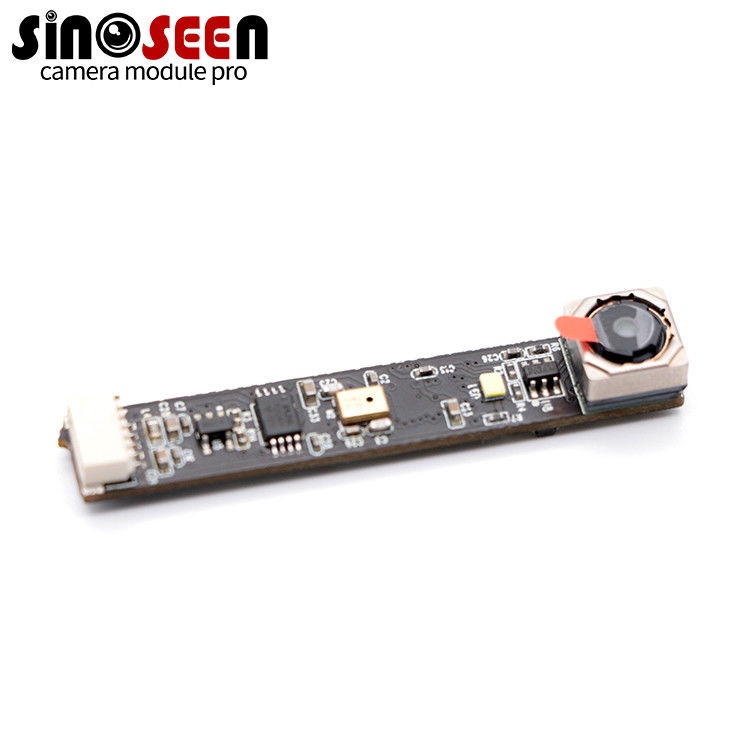

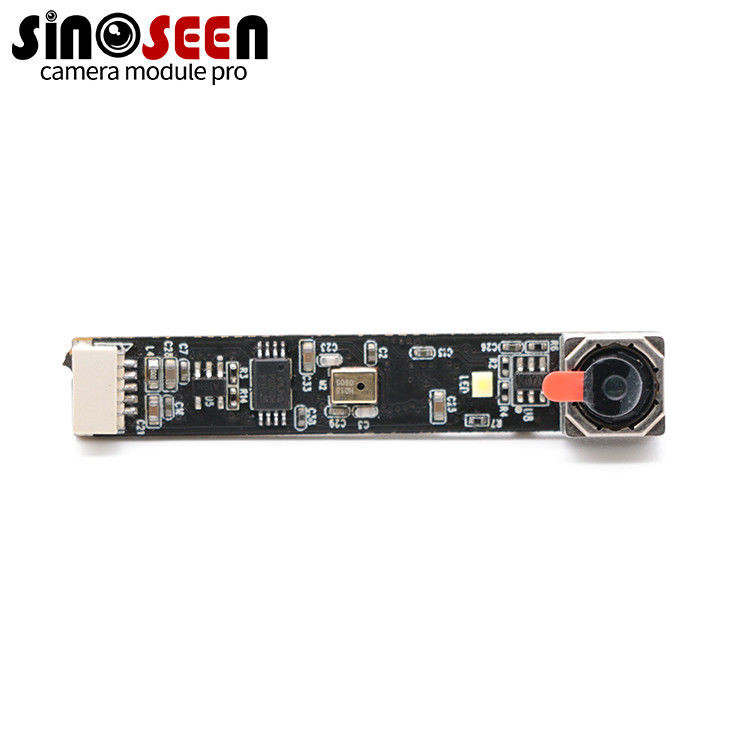

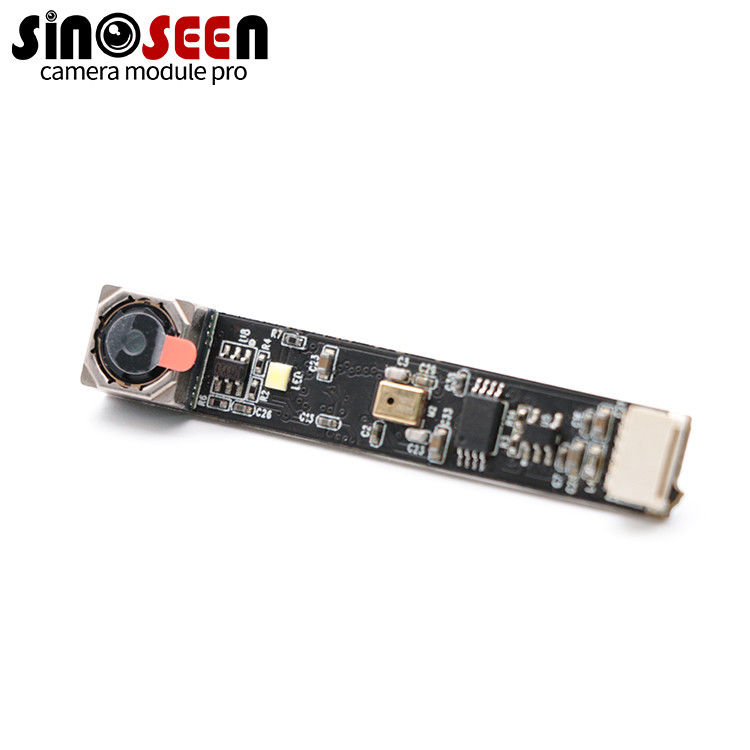

Auto Focus SONY IMX179 8mp USB Camera Module With Microphone And LED
Small Size Strip Shape Design 8MP Fast Auto Focus USB2.0 Camera Module With Microphone
IMX179 8mp USB Camera Module
This is a vey small 8MP USB camera module,with dimension only 50x8.5mm.The sensor is SONY IMX179,If you have seen our other products, you should know that we are very experienced with IMX179, and we can customize any plan and effect you want.
Different from the previous design, on this module, the customer placed the lens on the most side according to their own needs, and at the same time combined with actual needs, added a microphone and LED.
Of course, any of your other needs will be made a reality here in sinoseen. Welcome to customize your own camera module
Specification
Model No |
SNS-PC708M-V1 |
|
|
Image Sensor |
IMX179 |
|
|
Image Sensor Size |
1/3.2”CMOS |
|
|
Effective Pixels |
3264*2448 |
|
|
Pixel size |
1.4umX1.4um |
|
|
Optical distortion |
≤0.5% |
|
|
Image sensor Data output |
Raw Data 10bits |
|
|
Video output |
MPJG / YUY2 |
|
|
Maximum Frame Rates |
3264x2448 @15FPS 2592 x1944 @ 15fps 1920x1080S @30fps 1280x720 @ 30fps 800x600 @ 30fps 640x480 @30fps |
MJPG |
|
SNR max |
TBD |
|
|
Dynamic range |
TBD |
|
|
Min. Illumination |
≥0.01LUX at F1.2 |
NO LED |
|
Digital interface |
USB BUS POWER 5P-1.0mm |
|
|
Transfer rates |
480MB/S |
|
|
Power requirements |
5V±5% |
|
|
Storage temperature |
-20℃to70℃ |
|
|
operating temperature |
-10℃to60℃ |
|
|
Power Consumption |
NO LED |
Max 1.5W |
|
|
IR-LED |
|
|
LED IR-850( |
NO |
LED |
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
Lens view |
M6.5 |
LENS |
|
Lens Construction |
5P+IR |
|
|
F/NO |
2.2 |
|
|
EFL |
3.5mm |
|
|
FOV |
D:80°±3° |
|
|
Micro shooting distance |
AF 10cm-infinity |
|
|
MIC |
support MIC |
|
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
