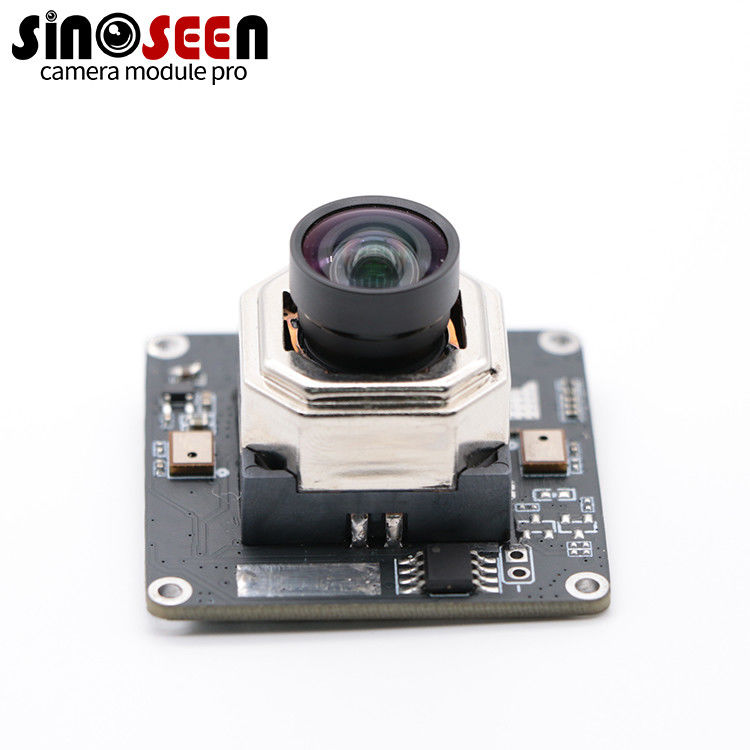

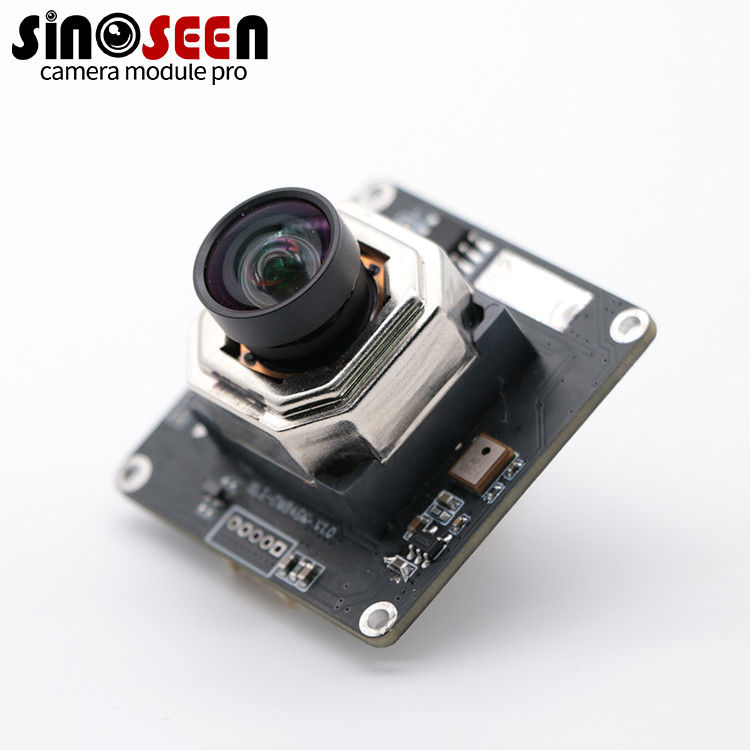

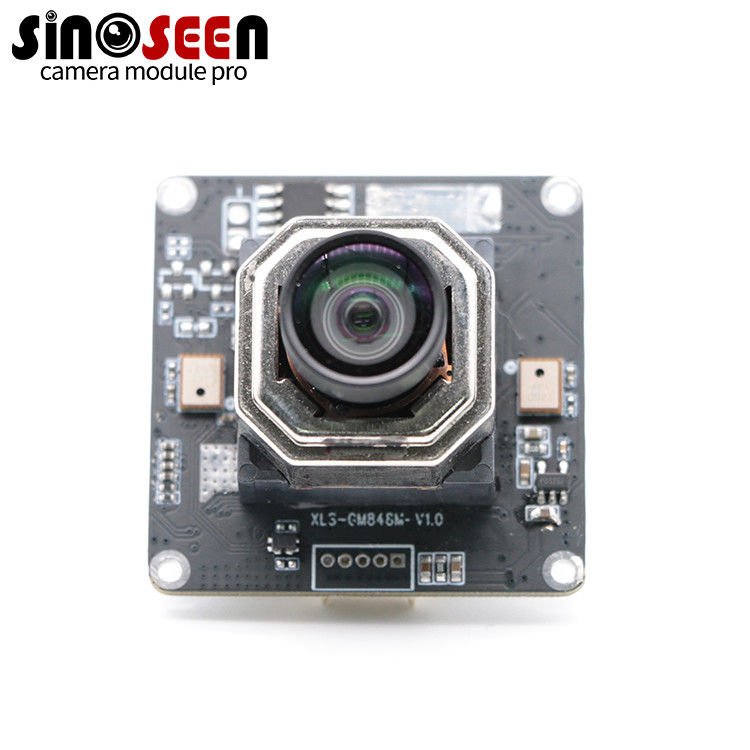

SONY IMX317 Sensor 4k 60fps Camera Module Big Motor Auto Focus
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM848M-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.5"SONY IMX317 |
|---|---|---|---|
| Resolution: | 8MP (3840*2160) | Dimensions: | 38x38mm (customizable) |
| Lens FOV: | 100°(optional) | Focus Type: | Auto Focus |
| Interface: | USB2.0 | Feature: | 4K |
| Highlight: | USB 60fps Camera Module,IMX317 4k 60fps Camera Module,4k IMX317 camera module |
||
Product Description
SONY IMX317 Sensor 4k 60fps Camera Module Big Motor Auto Focus
Big Motor Auto Focus M12 Lens UHD 8MP 4K USB2.0 Camera Module With SONY IMX317 Sensor
4k 60fps Camera Module
Maybe there are many 8MP USB cameras with autofocus, but there are still very few using M12 lens for autofocus. This is one of them. It uses the SONY IMX317 chip, I have to emphasize it again, this is probably the best 8MP USB camera module on the market. Because we spent a lot of time optimizing its firmware, so that the chip perfectly played its advantages.
What's more rare is that it uses an M12 lens and autofocus is achieved through a very powerful motor. A sufficiently large lens ensures that enough light can enter the chip, thereby ensuring that the picture quality is perfect. Autofocus can also exert its advantages in some specific application scenarios.
Currently this USB IMX317 camera module supports the following frame rate:
MPEG
3840*2160 30fps 2592*1944 30fps
2048*1536 30fps 1920x1080 30fps 1280x720 30fps 800x600 30fps 640x480 30fps 320x240 30fps
YUYV2
3840*2160 3fps 2592*1944 5fps
2048*1536 5fps 1920x1080 15fps 1280x720 15fps 800x600 30fps 640x480 30fps 320x240 30fps
Specification
|
Model No |
SNS-GM848M-V1 |
|
Sensor |
1/2.5’’ SONY IMX317 CMOS |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3840(H) x 2160(V) |
|
Pixel Size |
1.62µm x 1.62µm |
|
Image area |
3864um (H) x 2196um (V) |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Auto focus |
|
Chroma |
Color, RGB |
|
Clock Frequency |
6 to 72 MHz |
|
Microphones |
Built-in |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
|
Lens |
Focal length: 3.6mm |
|
Lens construction: 5E+IR |
|
|
D FOV: 100 degree |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Operating Voltage |
DC 5V |
|
Operating Current |
260mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38MMx38MM Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
