SONY IMX214 Sensor 8MP Camera Module Fixed Focus For Video Doorbell

SONY IMX214 Sensor 8MP Camera Module Fixed Focus For Video Doorbell

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-GM269M-V1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/3" SONY IMX214
Resolution: 8MP 3840(H) X 2160(V) Dimensions: 38x38mm Customizable
Lens FOV: 75°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: 4K
High Light:

IMX214 8MP Camera Module

,

38x38mm 8MP camera module

,

8MP imx214 camera module

Product Description

SONY IMX214 Sensor 8MP Camera Module Fixed Focus For Video Doorbell

4K 8MP UHD Fixed Focus USB Camera Module With SONY IMX214 COMS Sensor



IMX214 Sensor 8MP Camera Module

This is an Ultra HD 8MP camera module with IMX214 sensor from SONY. SONY IMX214 was originally a 13MP chip. On this module, due to the DSP capability, it can only output 8MP (3840x2160), but This does not mean that its performance will be greatly compromised. On the contrary, it has certain advantages compared to other chips that normally output 8MP. Its picture quality is relatively clearer, and its performance is also very stable.

It support below frame rates:
3840x2880 2.5fps 3264x2448 30fps 3840x2160 30fps 2592x1944 30fps 2048x1536 30fps

1920x1080 30fps  1280x720 30fps   800x600 30fps     640x480 30fps      320x240 30fps

It can be widely used in many fields, especially access control equipment, all-in-one machines, cat's eye access control, video doorbell, high-definition surveillance, high-resolution cameras, webcast cameras, video conference equipment, etc.





Specification

Model No

SNS-GM269M-V1



Image Sensor

SONY IMX214



Image Sensor Size

1/3”CMOS



Effective Pixels

3840*2160



Pixel size

1.62umX1.62um



Optical distortion

≤0.5%



Image sensor Data output

Raw Data 10bits



Video output

MPJG / YUY2



SNR max

TBD



Dynamic range

TBD



Min. Illumination

≥0.01LUX at F1.2

NO LED

Digital interface

USB BUS POWER 5P-1.0mm



Transfer rates

480MB/S



Power requirements

5V±5%



Storage temperature

-20℃to70℃



operating temperature

-10℃to60℃



Power Consumption

NO LED

Max 1.5W





IR-LED





LED IR-850(

NO

LED

OS

Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC )



Lens view

M6.5

LENS

Lens Construction

5P+IR



F/NO

2.1



EFL

3.24mm



FOV

D:75° H:52° V:48°  ±3°



Micro shooting distance

10cm-infinity



MIC

support MIC

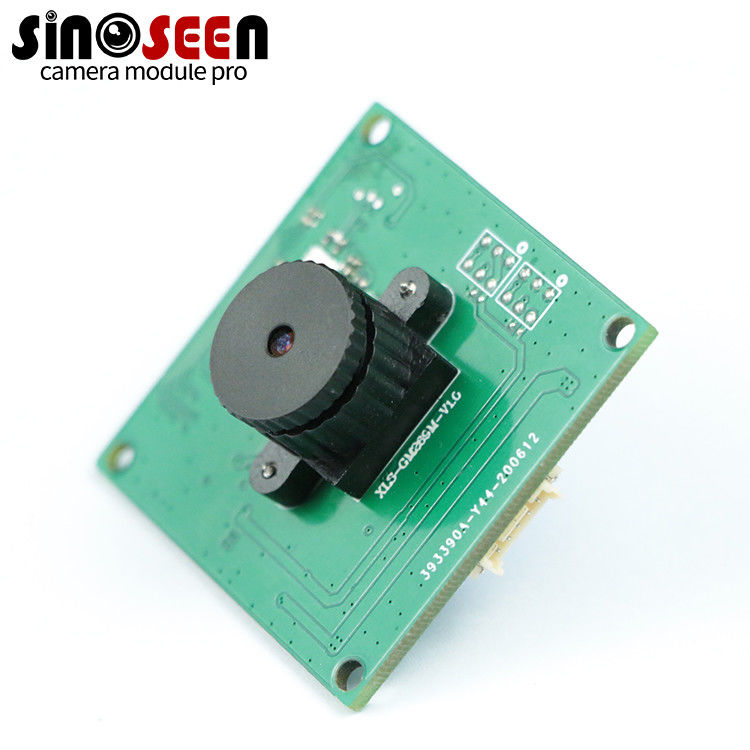

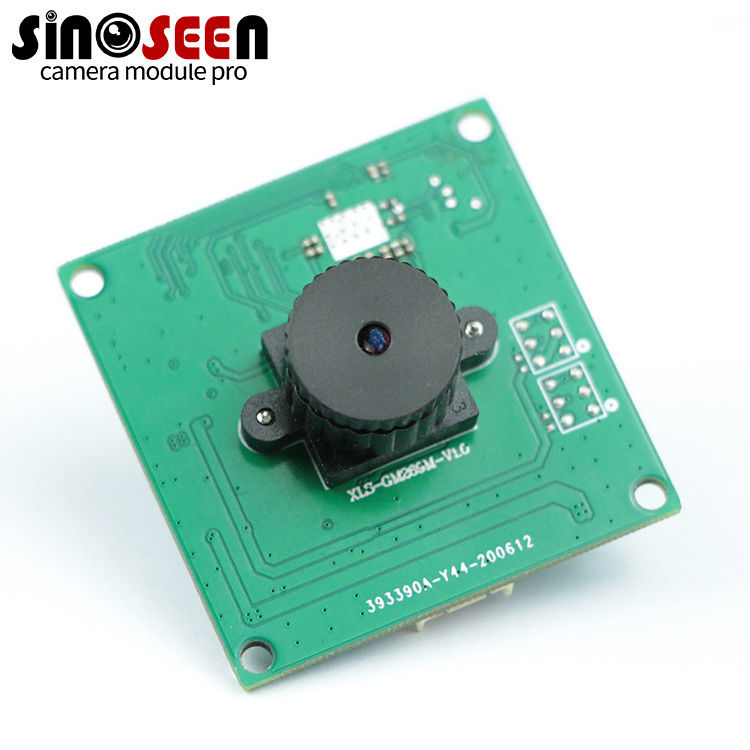

SONY IMX214 Sensor 8MP Camera Module Fixed Focus For Video Doorbell 0SONY IMX214 Sensor 8MP Camera Module Fixed Focus For Video Doorbell 1



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current available USB solution



0.3MP

Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

Global shutter:OV7251 (1/7.5”,B/W)

High frame rate:200FPS SC031GS(1/6”,B/W)

Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)



1MP

Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

Small size for endoscope:OV9734 GC1009 HM1091

Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)



2MP

Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

1080P-WDR (30FPS): AR0230 AR0331(300W)

1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

1080P big size: IMX385

1080P global shutter: OG02B10(color) OG02B1B(B/W)



5MP

500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)



8MP

800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)



13MP-16MP

IMX214(13M) IMX258(13M) IMMX298(16M)



USB3.0

IMX335 OV5648 IMX179 IMX307 PS5268



H264

GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
